10 Best Battery Protection Circuits to Keep Your Devices Safe and Efficient
To keep your devices safe and efficient, consider using top-rated battery protection circuits like the 6pcs 20A BMS Protection Board for 18650 batteries or the TP4056 Type-C USB charger module, which offers dual protection. Modules like the TP4057 provide charging and discharging capabilities, while 60A waterproof circuit breakers safeguard against overloads. Ensuring proper current and voltage ratings prevents damage and enhances longevity. Explore more options for reliable battery performance and protection features that suit your needs.
Key Takeaways
- The 6pcs 20A BMS Protection Board is ideal for 18650 Li-ion batteries, ensuring safety with a maximum output of 20A.
- TP4056 Type-C USB charger module efficiently charges lithium batteries, delivering up to 1000 mA with dual protection circuits.
- Various protection features, including overcharge, over-discharge, and short circuit protection, safeguard battery health and longevity.
- Milwaukee PCBs enhance battery life with built-in safety mechanisms, compatible with M18 battery capacities from 1.5Ah to 9.0Ah.
- Prioritize high-accuracy voltage detection for optimal performance, ideally within ±0.05V, to prevent damage from improper charging or discharging.
6pcs 20A BMS Protection Board for 18650 Li-ion Lithium Battery Charger Module
AEDIKO 6pcs 3S 20A BMS 18650 Li-ion Lithium Battery Charger Module BMS Protection Board PCB 11.1V...
- 3S 20A BMS:Maximum Output Current: 20A;Quiescent Current: <30uA
- High Accuracy Voltage Detection Circuit, Fine Workmanship and Reliable Quality
- Charging Voltage: 12.6V;Continuous Discharge Current (upper limit) : 20A (When the Heat Dissipation Environment is NOT Good,Please Reduce the Load Current )
If you’re looking for a reliable battery protection circuit, the 6pcs 20A BMS Protection Board for 18650 Li-ion Lithium Battery Charger Module is an excellent choice. This system supports a maximum current output of 20A, making it suitable for various applications like vacuum cleaners and solar street lights. Designed for voltages of 11.1V, 12V, and 12.6V, it offers precise voltage detection to safeguard your battery pack’s integrity. With a quiescent current of less than 30uA, it guarantees minimal energy waste. For peak performance, consider reducing the load in environments with poor heat dissipation. This board guarantees your devices run safely and efficiently.
Best For: This product is best for hobbyists and technicians seeking a reliable battery management solution for their lithium-ion battery applications.
Pros:
- High maximum output current (20A) suitable for various electronic devices.
- Low quiescent current (<30uA) ensures minimal energy waste.
- Designed with high accuracy voltage detection for enhanced battery protection.
Cons:
- Recommended load reduction in poor heat dissipation environments may limit performance.
- Requires careful handling and installation to ensure safety features are properly utilized.
- Specific to 18650 Li-ion batteries, limiting versatility for other battery types.
TP4056 Type-C USB 18650 Lithium Battery Charger Module (Pack of 12)
ALAMSCN TP4056 Type-C USB 5V 1A 18650 Lithium Battery Charger Module Charging Board TC4056A with...
- The input terminal has a Type-c USB female socket, which can be directly used as an input to charge the lithium battery with a mobile phone charger.
- There are joints for input voltage wiring, which is convenient for DIY
- Two-in-one charging and discharging protection function.
The TP4056 Type-C USB 18650 Lithium Battery Charger Module is an excellent choice for hobbyists and DIY enthusiasts looking for a reliable charging solution for 18650 lithium batteries. This module features a Type-C USB socket for convenient direct charging from a standard mobile phone charger. It offers dual protection by activating a protection circuit with a 5V connection, ensuring safe charging and discharging. You’ll find indicator lights helpful: a red light signals charging, while a green light shows when the battery is fully charged. Ideal for various DIY projects, this pack of 12 makes it easy to manage multiple batteries effectively.
Best For: Hobbyists and DIY enthusiasts looking for a reliable and efficient charging solution for 18650 lithium batteries.
Pros:
- Convenient Type-C USB socket allows for easy charging with mobile phone chargers.
- Dual protection functions enhance safety during charging and discharging.
- Indicator lights provide clear visual feedback on charging status.
Cons:
- Limited to charging 18650 lithium batteries only.
- No load condition shows no light, which may be confusing for some users.
- Requires additional components for different application installations, potentially complicating DIY projects.

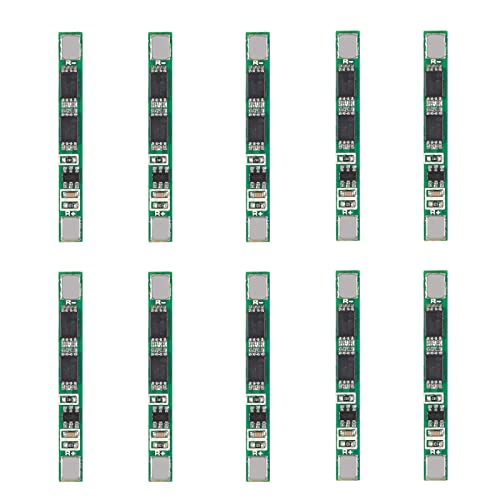

DIANN 10pcs 1S 3.7V BMS PCB Protection Board for Li-ion Battery Cell
DIANN 10pcs 1S 3.7V BMS 18650 Charger 4A PCB Protection Board for Li-ion Lithium Battery Cell
- 1S BMS Lithium Battery Protection Board: Charging Voltage: 4.2V; Maximum Working Current: 4A;Max Current:5A
- High Quality: High-Accuracy Voltage Detection Circuit, Fine Workmanship and Durable, Effective Life Greater Than 30000 hours
- Low Current: MOS Transistor Can Control the Battery Charge and Discharge, Low Standby Current Consumption
For those seeking reliable protection for their lithium-ion battery cells, the DIANN 10pcs 1S 3.7V BMS PCB Protection Board is an excellent choice. Designed for 3.7V lithium batteries, it utilizes a charging voltage of 4.2V while supporting a maximum working current of 4A and a max current of 5A. With over-discharge, overcurrent, overcharge, and short circuit protection, it guarantees your battery’s safety and longevity. This board is known for its high-accuracy voltage detection circuit and effective life of over 30,000 hours. It’s perfect for applications like massage battery packs, LED light supplies, and solar street light battery storage.
Best For: Individuals or businesses seeking robust battery protection solutions for 3.7V lithium-ion battery applications.
Pros:
- High-accuracy voltage detection ensures optimal battery performance.
- Comprehensive protection mechanisms prevent potential battery damage and enhance safety.
- Durable design with an effective life of over 30,000 hours reduces the need for frequent replacements.
Cons:
- Limited to 1S configuration, may not suit larger multi-cell battery packs.
- Maximum working current of 4A may not be sufficient for high-demand applications.
- Installation may require technical knowledge, potentially making it less user-friendly for beginners.
TP4057 1A Lithium Battery Charging Board (5 Pcs)
When charging lithium-ion batteries, choosing the right board is essential, especially for hobbyists and DIY enthusiasts who value efficiency and safety. The TP4057 1A charging board is a top choice, as it features Type-C USB connections for easy compatibility. It can handle a constant current and constant voltage, ensuring your battery charges without overheating, which can be dangerous. This board integrates both charging and discharging capabilities, making it versatile. With five pieces included, you have multiple options for your projects. The dual-output display clearly indicates charging status, helping you stay informed about your battery’s health and performance.
Best For: Hobbyists and DIY enthusiasts looking for an efficient and safe lithium-ion battery charging solution.
Pros:
- Versatile functionality with integrated charging and discharging capabilities.
- Type-C USB connection allows for easy and modern compatibility.
- Overheating protection ensures batteries charge safely without risk of damage.
Cons:
- Current limit of 1A may not be sufficient for larger battery packs.
- Dependence on Type-C connection may be a drawback for users with older devices.
- Requires careful handling to avoid potential hazards when working with lithium-ion batteries.
5pcs TP4056 Type-C USB Lithium Battery Charger Module with 18650 Battery Holders
Sale
AEDIKO 5pcs TP4056 Type-C USB 5V 1A 18650 Lithium Battery Charger Module with Dual Protection...
- TP4056 Type-C USB 5V 1A 18650 Lithium Battery Charger Module: Input Interface: Type-C USB; Input Voltage: 4.35-6V (Recommended Voltage 5V)
- Protection Function: Two-in-One Charging and Discharging Protection Function,vercharge Over Discharge and Over-current Protection; Battery Discharge Termination Voltage...
- Light State: NO Load the Light NOT Bright, Red Light for Recharging,Green Light is FULL Charger and The Module Come With Solder Joints for Input Voltage Wiring,Which is...
A versatile solution for hobbyists and DIY enthusiasts, the 5pcs TP4056 Type-C USB Lithium Battery Charger Module with 18650 Battery Holders offers an efficient way to manage lithium battery charging. Each module features a Type-C USB input, allowing for easy connections, and supports voltages from 4.35 to 6V, ideally at 5V. With a dual protection function, it safeguards against overcharging, over-discharging, and over-current, maintaining a current limit of 3A. The included battery holders make it convenient for various projects, such as electronic experiments and PCB circuits. Red and green light indicators provide clear charging status, ensuring you’re well-informed during operations.
Best For: Hobbyists and DIY enthusiasts who work with lithium batteries and require an efficient charging solution.
Pros:
- Versatile charging option with Type-C USB input, accommodating various projects and devices.
- Built-in protection features to prevent overcharging, over-discharging, and over-current, ensuring safety and longevity of the batteries.
- Includes battery holders for convenient integration into electronic experiments and DIY applications.
Cons:
- Single-cell charging limitation, which may not be ideal for larger battery configurations.
- 3A current limit might not suffice for high-capacity battery applications.
- Requires basic soldering skills for wiring connections, which could be challenging for beginners.
MakerFocus 15pcs TP4056 Charging Module with Type C Interface
Sale
MakerFocus 15pcs TP4056 Charging Module Type C Interface with Battery Protection 18650 BMS 5V 1A...
- Upgrade Version: The input has a Type C female connector, which can be directly input as a mobile phone charger to recharge the lithium battery; The input voltage wiring...
- Usage: The +/- pads are the power inputs, access to 5V. B+ connects to the positive pole, B- connects to the negative pole, OUT+ and OUT- connects to the loads, such as...
- Application: TP4056 module can charge for single-cell lithium battery or multi-section parallelled lithium batteries, can be powered by USB ports; The module with USB...
The MakerFocus 15pcs TP4056 Charging Module with Type C Interface is ideal for hobbyists and DIY enthusiasts working with lithium batteries, particularly those using 18650 cells. This module features a Type C interface, allowing for easy connection to mobile chargers. It operates with a 5V input voltage and provides a maximum output current of 1A. To charge single or parallel lithium batteries correctly, always connect the B+ to the positive pole and B- to the negative pole. Remember to disconnect any load from the OUT terminals during charging to guarantee safe operation. Verify connections for correct polarity before use to avoid damage.
Best For: This product is best for hobbyists and DIY enthusiasts looking to efficiently charge 18650 lithium batteries using a portable solution.
Pros:
- Convenient Type C interface for easy connection to mobile phone chargers.
- Built-in battery protection ensures safety while charging 18650 cells.
- Compact design with 15 modules included, catering to multiple projects.
Cons:
- Requires correct polarity connections to avoid damage, which may be challenging for beginners.
- Disconnecting loads during charging can be inconvenient, limiting simultaneous use.
- Output limited to 1A, which may not be sufficient for larger battery capacities or quicker charging needs.
Protection Circuit Board for Milwaukee M18 Battery (2-Pack)
Janllenton Protection Circuit Board (PCB) for Milwaukee M18 18V Batteries – Replacement BMS Module...
- BROAD COMPATIBILITY: Designed to work seamlessly with Milwaukee M18 batteries, including 1.5Ah, 2.0Ah, 3.0Ah, 4.0Ah, 5.0Ah, and 9.0Ah models, offering versatile...
- ENHANCED SAFETY FEATURES: Equipped with a high-performance protection circuit board to guard against overcharging, over-discharging, overheating, and short circuits...
- DURABLE & HIGH-QUALITY MATERIALS: Built with premium components to withstand the rigorous demands of professional and DIY applications, ensuring long-lasting durability.
For anyone using Milwaukee M18 batteries, the Protection Circuit Board (PCB) 2-Pack is an essential investment. This board is compatible with a range of M18 battery capacities, including 1.5Ah, 2.0Ah, 3.0Ah, 4.0Ah, 5.0Ah, and 9.0Ah models. It features advanced technology designed to prevent overcharging, over-discharging, overheating, and short circuits. By using this PCB, you can extend the life of your batteries and enhance performance. The durable construction guarantees it can handle both professional and DIY tasks effectively. With the 2-pack, you’ll have spares on hand, helping you save money by reducing battery replacement costs.
Best For: Users of Milwaukee M18 batteries who seek to enhance battery performance and lifespan through effective protection circuit technology.
Pros:
- Broad Compatibility: Works with various M18 battery capacities ranging from 1.5Ah to 9.0Ah.
- Safety Features: Prevents overcharging, over-discharging, overheating, and short circuits, ensuring battery longevity.
- Value Pack: Convenient 2-pack allows for repairing multiple batteries or having spares on hand, reducing overall costs.
Cons:
- Installation Required: Users may need some technical skill to install the protection circuit boards themselves.
- Not a Complete Battery Replacement: This product does not replace the entire battery and is only a component.
- Limited to Milwaukee M18: Only compatible with Milwaukee M18 batteries, not suitable for other battery brands or models.
HiLetgo 3pcs TP4056 Type-C USB 18650 Lithium Battery Charger Module
HiLetgo 3pcs TP4056 Type-c USB 5V 1A 18650 Lithium Battery Charger Module Charging Board with Dual...
- Input interface: Type-c USB.
- Battery overcharge lifting voltage: 4.00 V
- Battery: over-current protection current 3 A
When you’re looking for a reliable charging solution for your 18650 lithium batteries, the HiLetgo 3pcs TP4056 Type-C USB Charger Module stands out. This module uses a Type-C USB input and offers a maximum current output of 1000 mA for efficient charging. With a battery overcharge cutoff at 4.00 volts, it protects your battery from excessive voltage. The device features dual protection mechanisms, ensuring battery safety during the charging process. Indicator lights display the charging status: red for recharging and green when fully charged. With a 3 A over-current protection, you can trust this module for reliable, safe charging.
Best For: Those seeking a safe and efficient charging solution for their 18650 lithium batteries.
Pros:
- Fast Charging: Offers a maximum charging current output of 1000 mA for quicker battery recharge times.
- Safety Features: Includes dual protection mechanisms and over-current protection to safeguard battery integrity.
- Clear Indicator Lights: Easy-to-read lights indicate charging status, making it user-friendly for monitoring.
Cons:
- Limited to 18650 Batteries: Specifically designed for 18650 lithium batteries, limiting versatility for other battery types.
- Type-C Input Requirement: Requires a Type-C USB input, which may necessitate additional cables if not already available.
- No Load Indicator: The light does not illuminate when no battery is connected, potentially leading to uncertainty about the module’s status.
3S 12V 10A Lithium Battery Protection Board BMS (3 Pcs)
Comidox 3S 12V 10A 18650 Lithium Battery Protection Board BMS Li-ion Charger Protection Module...
- The power range described is applicable to the following products: vacuum cleaner, massager battery pack, LED light backup power supply, 12V electronic products, solar...
- With overcharge, over discharge, over current, short circuit and other protection functions, for a variety of shapes of various shapes 3.7V lithium battery.
- High quality MOSFETs such as VISHAY, AOS, IR, etc., FR-4 low temperature coefficient sheet, well designed and tested.
Designed specifically for various applications, the 3S 12V 10A Lithium Battery Protection Board BMS (3 Pcs) stands out for its robust protection features. Ideal for devices like vacuum cleaners and solar street lights, it safeguards against overcharge, over-discharge, over-current, and short circuits. This BMS supports three strings of lithium batteries in series, with voltage ratings of 10.8V to 12.6V. You can use it within a temperature range of -40°C to +50°C. Remember, it’s crucial to pair this board with a lithium-specific charger to guarantee peak performance. With proper use, expect a lifespan exceeding 30,000 hours, making it a reliable choice.
Best For: This product is best for users seeking reliable power solutions for devices like vacuum cleaners, LED lights, and solar street lights that utilize 18650 lithium batteries.
Pros:
- Comprehensive Protection: Offers overcharge, over-discharge, over-current, and short circuit protections, enhancing device safety.
- Long Lifespan: Designed for extensive use with a lifespan exceeding 30,000 hours, making it a durable choice.
- Wide Temperature Range: Operates effectively within a broad temperature range of -40°C to +50°C, suitable for diverse environments.
Cons:
- Limited Compatibility: Not compatible with iron ion polymer batteries, hand drill packs, or electric bicycles, which may limit its usability.
- Requires Specific Charger: Must be paired with a lithium-specific charger; using the wrong charger can lead to issues.
- Weight and Size: Some users might find the board’s size and weight less convenient for compact applications.
60A Waterproof DC Circuit Breaker with Manual Reset
A 60A waterproof DC circuit breaker with a manual reset is an excellent choice for anyone looking to protect their electrical systems in environments prone to moisture, such as marine settings or RVs. This circuit breaker is designed for 12V to 48V systems, making it versatile for applications like solar panels or boat electronics. With an IP66 waterproof rating, it withstands harsh conditions while ensuring reliable performance. Installation is straightforward, thanks to a complete kit with all necessary components included. Plus, its resettable mechanism enhances safety and functionality by eliminating the need for fuses, allowing you to reset rather than replace after overloads.
Best For: Those seeking reliable circuit protection for electrical systems in humid or wet environments, such as marine or RV applications.
Pros:
- Easy installation with a complete kit including mounting screws and ring terminals.
- IP66 waterproof rating ensures durability and performance in harsh conditions.
- Resettable mechanism allows for cost-effective and reusable circuit protection.
Cons:
- Limited to 12V–48V systems, restricting use for higher voltage applications.
- Manual reset may not be convenient in hard-to-reach locations.
- Potentially less familiar for users accustomed to traditional fuses.
Factors to Consider When Choosing a Battery Protection Circuit
When selecting a battery protection circuit, you need to contemplate several key factors. Maximum current ratings are essential because they determine how much current can safely pass through the circuit without causing damage. Additionally, look for voltage detection accuracy, protection features available, compatibility with your battery types, and whether the circuit can integrate with circuit breakers for enhanced safety.
Maximum Current Ratings
Choosing the right maximum current rating for your battery protection circuit is essential for guaranteeing safety and reliability. The maximum current rating indicates how much continuous discharge current the circuit can safely handle without overheating. For example, a common protection circuit may have a rating of 20A, but it’s wise to contemplate lower currents in cases where heat dissipation is poor. If you’re working on a more demanding application, a higher rating, such as 60A, can manage substantial current fluctuations without failure. Always verify that the rating meets or surpasses your application’s requirements. Additionally, pair the current rating with essential features like over-current and thermal protection to provide a thorough safety net for your device.
Voltage Detection Accuracy
Voltage detection accuracy is pivotal for maintaining the health and safety of your battery system, especially in applications involving lithium-ion batteries. You need to prevent overcharging and over-discharging, which can damage the battery and shorten its lifespan. High-accuracy circuits guarantee that charging voltages stay within the ideal range, usually around 4.2V. Look for circuits that can detect voltage levels with minimal deviation, ideally within ±0.05V. This precision helps manage the battery effectively and reduces the risk of dangerous conditions like overheating or fires. When selecting a battery protection circuit, prioritize those with a reliable track record for high accuracy to guarantee dependable performance over time. Doing so will help you achieve a safer and more efficient battery system.
Protection Features Available
Selecting a battery protection circuit involves understanding several crucial features that can greatly impact your battery’s performance and safety. Key features include overcharge protection, which stops the battery from exceeding its maximum voltage, thereby enhancing its lifespan. Over-discharge protection is equally important, preventing the battery from dropping below its minimum voltage, which can cause permanent damage. Short circuit protection detects abnormal current spikes, disconnecting the battery to avert overheating and fires. Additionally, overcurrent protection limits the maximum current during discharge, reducing the risk of damage from heavy loads. Some circuits also include thermal protection mechanisms to prevent overheating while charging or discharging. Each feature plays an essential role in ensuring reliable and safe battery usage.
Compatibility With Battery Types
When you’re looking for a battery protection circuit, compatibility with the specific battery type is essential. Make sure the circuit is designed for the chemistry of your battery cells, whether it’s lithium-ion, lithium polymer, or nickel-metal hydride, as each chemistry has unique protection needs. Also, check that the circuit supports the correct voltage ratings, like 3.7V for 18650 cells or 12V for series configurations. Pay attention to the maximum current ratings; for instance, a 20A circuit is necessary for applications that won’t exceed this current. Finally, evaluate protection features like overcharge, over-discharge, and short circuit protection, which safeguard your batteries and enhance their lifespan, while checking quiescent current for energy efficiency, especially in low-power usage.
Circuit Breaker Integration
To guarantee safety and reliability in battery systems, integrating a circuit breaker is an essential step in your design process. Circuit breakers protect your battery system from overloads and short circuits, ensuring the safety of connected devices. When choosing one, first consider the amperage rating; it should match or exceed the maximum current draw of your application. For environments exposed to moisture, select a circuit breaker with a waterproof rating, like IP66, to maintain performance. A breaker with manual reset capabilities allows for quick recovery from overload without replacing fuses. Finally, integrating circuit breakers simplifies installation and maintenance, providing a dependable solution for protecting DC circuits in various applications, enhancing both functionality and safety.
Frequently Asked Questions
What Is the Lifespan of a Typical Battery Protection Circuit?
A typical battery protection circuit lasts about five to ten years, depending on usage and conditions. These circuits, which prevent overcharging, over-discharging, and short circuits, help extend battery life. For instance, in devices like smartphones or power tools, regular exposure to extreme temperatures can shorten their lifespan. It’s important to regularly monitor the circuit’s performance to guarantee it functions effectively, as breakdowns can compromise your battery’s safety and efficiency.
Can I Use Any Battery With These Protection Circuits?
You can’t use just any battery with these protection circuits. Each circuit is designed for specific battery types, like lithium-ion or nickel-metal hydride. Check the circuit specifications to verify compatibility with voltage levels, usually between 3.7 to 4.2 volts for lithium batteries. Using the wrong battery can lead to malfunctions or even damage. Always verify the ratings and dimensions to guarantee ideal performance and safety before making a connection.
How Do I Know if My Device Needs a Protection Circuit?
To determine if your device needs a protection circuit, check its specifications. Look for battery type information and voltage requirements; many lithium-ion batteries require protection circuits to prevent overcharging and over-discharging. If you see ratings exceeding 4.2 volts or below 3.0 volts, a protection circuit is necessary. Additionally, if your device operates in high temperatures or fluctuates power, it’s wise to use a protection circuit for safety and efficiency.
Are These Circuits Waterproof or Weatherproof?
Most battery protection circuits aren’t waterproof or weatherproof. However, some circuits feature coatings or enclosures that provide limited protection against moisture. To determine if a circuit can withstand specific conditions, check the manufacturer’s specifications, which usually include ratings like IP67, indicating dust-tight and water-resistant properties up to a certain depth. If you’re using devices in harsh environments, consider additional protective measures, such as waterproof housings, to enhance durability and reliability.
What Are the Common Failure Modes of Battery Protection Circuits?
Battery protection circuits often fail due to overvoltage, undervoltage, or short circuits. When voltage exceeds safe levels, components can burn out. Undervoltage might cause permanent battery damage, preventing proper charge or discharge. Short circuits result from wiring errors, creating harmful current flows. Additionally, temperature extremes can impair circuit function, triggering thermal shutdowns. Monitoring voltage and current levels is essential for preventing these failures and ensuring your devices operate effectively and safely.
