10 Best MC4 Connectors for Reliable Solar Power Connections in 2026
For reliable solar power connections in 2026, consider the BougeRV 100PCS or the MC4 Solar Connectors with wrenches, both IP67 waterproof. The 50 Pairs Solar Connector Kit offers excellent value, while the 30PCS Solar Connectors provide durability. Don’t overlook the ECO-WORTHY Crimper Tool Kit for easy installation. Aim for connectors rated at 30A and 1000V for safety. Choosing the right connectors guarantees efficiency and longevity in your solar system, and there’s more to explore on this topic.
Key Takeaways
- Prioritize MC4 connectors with IP68 waterproof ratings to ensure reliable performance in harsh weather conditions and extended lifespan.
- Choose connectors made from high-quality materials like PPO and PA for enhanced durability and resistance to environmental damage.
- Look for kits that include tinned copper conductive pins for high conductivity and reliable connections throughout the solar power system.
- Ensure compatibility with wire sizes between 2.5mm² to 6mm² for seamless installation and optimal performance in various setups.
- Select connectors rated for a maximum of 1000V and 30A to ensure they meet the demands of your solar power system safely.
50 Pairs Solar Panel Connector Kit MC4 Connectors
50 Pairs Solar Panel Connector Kit IP68 Waterproof Solar Connectors MC4 Connectors 1000V 30A Solar...
- 【High Conductivity】 The Solar Panel Connector Kit use high-quality tinned copper materials to minimize energy transmission losses and improve the efficiency of solar...
- 【Strong Weather Resistance】 The solar connector is IP68 waterproof, UV resistance and has good aging resistance, suitable for outdoor use, and can work stably in...
- 【Safe and Reliable】 The male connector has a sealing ring, which can make the connection have good sealing, and the overall design is stable, which is an important...
When it comes to solar power solutions, the 50 Pairs Solar Panel Connector Kit with MC4 connectors stands out as an exceptional choice for both professionals and DIY enthusiasts. This kit includes durable IP68 waterproof connectors, designed to withstand various climates and prevent energy losses. With a maximum voltage of 1000V and a 30A current capacity, these connectors guarantee reliable performance. The package also features a durable nylon storage bag for easy organization. Installation is simplified with two included wrenches, making it an ideal option for homes, car roofs, and other photovoltaic systems, facilitating efficient energy generation.
Best For: This product is best for professional installers and DIY enthusiasts looking for reliable and efficient solar panel connections.
Pros:
- High conductivity tinned copper materials minimize energy losses, enhancing solar system efficiency.
- IP68 waterproof design ensures reliable performance in various weather conditions.
- Easy installation and disassembly with included wrenches makes it user-friendly for different applications.
Cons:
- The weight of the kit may be cumbersome for some users to handle.
- Limited customer ratings may not provide a comprehensive view of product performance.
- As a component kit, it may require additional parts for complete solar panel installation.
25 Pairs Solar Connectors – Male & Female IP67 Waterproof Connector
yarachel 25Pairs / 50PCS Solar Connectors - Male & Female IP67 Waterproof Connector (25 Pairs Solar...
- Solar Connector Conductor pin is tinned Copper: made of PPO + PA material, It makes a rock solid connection after you crimp the pin to the wire, and these are operated...
- With excellent aging resistance and UV endurance, it can be used in harsh environment.
- It does not need extra instruments for the removal of plugs and removal will not cause any harm to plugs.
For anyone looking to connect solar power systems effectively, the MC4 connectors, specifically the Male and Female IP67 Waterproof Connectors, are an excellent choice. This set includes 25 pairs, giving you 25 male and 25 female connectors to facilitate secure connections. Made from durable PPO and PA materials, they resist aging and UV damage, making them suitable for harsh environments. The conductive pin is crafted from tinned copper for reliable performance. Suitable for wires with insulation diameters of 2.5mm² to 6mm² (14AWG – 10AWG), these connectors are easy to use and allow hassle-free plug removal without damage, ensuring a solid, long-lasting connection.
Best For: Those building or maintaining solar power systems who require reliable and waterproof connectors for optimal performance.
Pros:
- Durable construction: Made from robust PPO and PA materials, ensuring resistance to aging and UV damage.
- Easy to use: Allows hassle-free plug removal without damaging the connectors, making maintenance straightforward.
- Solid connection: Provides reliable performance under heavy loads due to its quality tinned copper conductive pins.
Cons:
- Limited wire compatibility: Only suitable for insulation diameters ranging from 2.5mm² to 6mm² (14AWG – 10AWG).
- Bulk purchase requirement: Sold in 25 pairs, which may be more than needed for small projects.
- Potential for overkill: For simplistic solar setups, these connectors might be more robust than necessary.
30PCS Solar Connectors Male Female for Solar Panel Cable
MC4 connectors are the best choice for those seeking reliable and efficient connections in various photovoltaic (PV) systems, whether for household use, small projects, or industrial applications. The PCS solar connectors come in a package of 30 pieces, offering 15 pairs of male and female connections suitable for cables with insulation diameters of 2.5mm² to 6mm². Made from durable PPO and PA materials, these connectors withstand temperatures ranging from -40°F to +257°F. With an IP67 waterproof rating, they protect against dust and water ingress, making them versatile for diverse installations. Easy installation is guaranteed with plug-and-play functionality.
Best For: Individuals and businesses looking for reliable and waterproof connections for their photovoltaic power systems.
Pros:
- Easy installation with plug-and-play functionality simplifies setup for users of all skill levels.
- Durable construction from PPO and PA materials ensures long-lasting performance in various environmental conditions.
- IP67 waterproof rating provides protection against dust and water ingress, making them suitable for both indoor and outdoor installations.
Cons:
- Limited cable diameter range may not accommodate larger cables needed for high-power applications.
- Quantity may not be sufficient for larger projects that require more connector pairs.
- Compatibility with only specific cable types could limit use in versatile applications.
16 PCS Solar Panel Connectors (Male/Female, IP67 Waterproof)
Usngsny 16 PCS Solar Panel Connectors, Male/Female IP67 Waterproof 1000V 30A Solar Cable Connectors...
- High-Quality Materials for Maximum Efficiency:Crafted with premium PPO material and tinned copper conductor pins, these solar connectors ensure excellent conductivity and...
- Weather-Resistant and Long-Lasting:Rated IP67 waterproof, these connectors are built to endure extreme weather conditions, from heavy rain to intense heat. With a...
- Versatile Compatibility with Solar Cables:Supports PV cables with insulation diameters from 2.5m㎡ to 6m㎡ (14AWG-10AWG), making it suitable for a wide range of...
Choosing the right solar panel connectors is essential for ensuring a reliable solar power system. The PCS Solar Panel Connectors come in a set of 16, featuring both male and female connectors. Each connector is IP67 waterproof, rated for 1000 volts and 30 amps, making them suitable for various environments. They’re made from durable PPO material with tinned copper conductor pins, ensuring maximum conductivity and minimal energy loss. These connectors support PV cables with insulation diameters ranging from 2.5 mm² to 6 mm². Their plug-and-play design allows for easy installation, requiring no additional tools, and includes a secure locking mechanism for reliable connections.
Best For: Individuals or businesses looking for reliable and durable connectors for their solar power systems.
Pros:
- Easy installation with a plug-and-play design, requiring no additional tools.
- Waterproof IP67 rating ensures durability in various weather conditions.
- Designed for high performance with minimal energy loss due to premium materials.
Cons:
- Limited to specific cable insulation diameters (2.5mm² to 6mm²), which may not suit all setups.
- Requires proper handling to ensure secure connections, as improper usage can lead to issues.
- Available in fixed quantities (16 pcs), which may not meet larger project requirements.
100PCS Solar Panel Connector Male/Female IP67 Waterproof
Sale
100PCS Solar Panel Connector IP67 Waterproof Connector Male/Female 50Pairs with 2 Spanners
- Compatible Cable : Compatible with PV cables with different insulation diameters (2.5m㎡~6m㎡/14AWG ~10AWG).
- Premium Material : Made of PPO material, conductor pin is tin plated copper. PPO material with excellent aging resistance and UV endurance, can resist severe weather such...
- Rated voltage : 1000V DC; Rated Current:30A; These solar connectors' degree of waterproof is IP67 and design with sealing ring for dust resistance.
When setting up photovoltaic solar systems, using reliable connectors is essential for efficiency and safety. The PCS Solar Panel Connectors are IP67 waterproof, ensuring durability in various weather conditions. This set includes 100 connectors, providing 50 male and 50 female options, along with two spanners for easy installation. These connectors support a voltage rating of 1000V DC and a current rating of 30A, making them suitable for different solar applications. Made from high-quality PPO material with tin-plated copper pins, they offer excellent conductivity. Their robust design features a flammability rating of UL94-V0, ensuring long-lasting performance in outdoor environments.
Best For: Individuals or companies engaged in setting up photovoltaic solar systems who require reliable and high-quality connectors for safe and efficient connections.
Pros:
- High IP67 waterproof rating ensures durability and protection against dust and water.
- Supports a wide voltage and current range, making it suitable for various solar applications.
- Easy installation with included spanners and high-quality materials providing excellent conductivity.
Cons:
- The package may contain more connectors than needed for smaller projects, potentially leading to waste.
- Requires compatibility checks with PV cables, which may complicate installation for some users.
- Limited warranty information may leave customers uncertain about long-term reliability.
Solar Panel Connector Kit with 60PCS Tools and Connectors
Sale
Solar Panel Connector, 60PCS Solar Crimper Tool Kit for Connecting Solar Panel Cable Wire, Solar...
- Compatible Cable: Solar connectors compatible with PV cables with different insulation diameters. Solar crimping tool kit for 2.5/4/6 mm² solar PV wire.
- Solar Connector Kits: 60 pcs Male and female connectors with IP67 waterproof and sunscreen functions. High carbon steel crimper with ratchet mechanism, comfortable...
- Premium Material: Made of PPO material, conductor pin is tin plated copper. PPO material with excellent aging resistance and UV endurance, can resist severe weather such...
The Solar Panel Connector Kit, featuring 60 high-quality components, is an excellent choice for DIY solar enthusiasts and professionals alike. This kit includes 30 pairs of male and female solar connectors, 30 connector pins, one solar crimper, and two spanner wrenches. It works with various PV cables, specifically those with insulation diameters of 2.5, 4, or 6 mm². The connectors are designed to withstand severe weather, being IP67 waterproof and UV resistant. The crimper, made of high carbon steel, facilitates precise and durable connections, ensuring efficient solar power installation. This kit is essential for reliable solar panel connectivity.
Best For: DIY solar enthusiasts and professionals looking for a comprehensive connector kit for solar panel installations.
Pros:
- High-quality components including 30 pairs of male and female connectors and a durable crimper.
- IP67 waterproof and UV resistant design, suitable for a variety of harsh weather conditions.
- Versatile compatibility with PV cables of multiple insulation diameters (2.5/4/6 mm²).
Cons:
- The weight of 2.57 pounds may be less convenient for portable applications.
- Some users may find the crimper requires a learning curve for optimal use.
- Limited to specific cable sizes, which may not fit all potential solar panel setups.

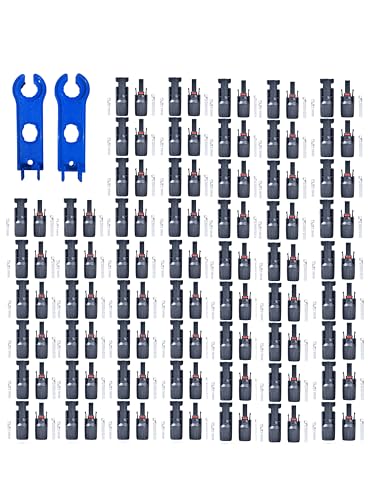

100PCS Solar Panel Connectors (50 Pairs)
DaChendianzi 100PCS Solar connectors 50 Pairs Solar Panel Connectors with 2 Wrenches, Solar...
- Versatile: This set includes 50 pairs of solar connectors and two wrenches, perfect for solar panel installations and electrical projects.
- Waterproof: With an IP67 rating, these connectors are designed to withstand harsh outdoor conditions and provide reliable water resistance.
- Secure Connection: The connectors feature a locking mechanism that ensures a tight and secure fit, preventing accidental disconnection and suit for 10AWG,12AWG,14AWG...
For solar enthusiasts and DIY project planners, the PCS Solar Panel Connectors (50 Pairs) offer an excellent solution for ensuring reliable connections in solar installations. This kit includes 100 connectors and two wrenches, making it easy for you to start your project. With an IP67 waterproof rating, these connectors withstand harsh outdoor conditions. Their locking mechanism secures the connection, preventing accidental disconnections. You can use these connectors with 10AWG, 12AWG, and 14AWG solar cables, allowing versatile applications across various systems. With a customer rating of 5.0 out of 5 stars, their reliability is well-proven among users.
Best For: Solar enthusiasts and DIY project planners looking for reliable connectors for solar installations.
Pros:
- IP67 waterproof rating ensures durability in harsh outdoor conditions.
- Locking mechanism prevents accidental disconnection for a secure connection.
- Compatible with multiple wire sizes (10AWG, 12AWG, 14AWG) for versatile applications.
Cons:
- May be overkill for small-scale or non-professional projects.
- Quantity of connectors (100PCS) may exceed needs for users with fewer installations.
- Some may find the installation process requires additional tools not included in the kit.

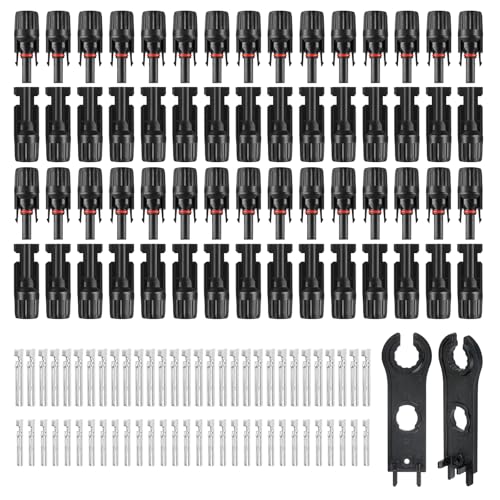

MC4 Solar Connectors (30 Pairs/60pcs) with Wrenches
Sale
LEPITERY MC4 Solar Connectors 30 Pairs/60pcs Solar Panel Cable Connectors Waterproof IP67 1000V 30A...
- PACKAGE INCLUDED: 30 pairs of solar panel connectors (Male & Female) and 30 pairs of solar connector pins (Male & Female) + 2pcs spanners
- MATERIAL: Made of PPO insulation material, contact material is tin-plated copper. It makes a rock solid connection after you crimp the pin to the wire, and these are...
- HIGH CARRYING CAPACITY: 1000V DC rated voltage, 30A rated current, IP67 water proof level, Flamebility rating is UL94-V0. The waterproof ring on the connection is perfect...
Choosing LEPITERY MC4 Solar Connectors (30 pairs/60 pieces) with wrenches makes perfect sense for anyone working on residential or small industrial solar power systems. These connectors are designed for easy assembly, with quick plug-and-play features that streamline installation. Each package includes 30 pairs of male and female connectors and 30 solar connector pins, ensuring you’ve got enough for your projects. Rated for 30A and capable of handling DC voltages up to 1000V, these connectors are robust. With a waterproof rating of IP67, you can trust them to perform well under challenging conditions. They’re compatible with cable insulation diameters ranging from 2.5mm² to 6mm².
Best For: Those seeking reliable connectors for residential or small industrial solar power installations.
Pros:
- High durability with a maximum working voltage of 1000V and rated current of 30A, suitable for demanding applications.
- Waterproof design with an IP67 rating to protect against moisture and dust ingress, ensuring longevity in various conditions.
- Easy installation with plug-and-play features and included spanners for quick assembly and disassembly.
Cons:
- Limited compatibility with only specific cable insulation diameters (2.5mm² to 6mm²).
- Relatively lower customer rating of 4.2 out of 5 stars may indicate some user dissatisfaction.
- The package contains a fixed number of connectors (30 pairs), which may not be enough for larger projects.
BougeRV 100PCS Solar Panel Cable Connectors (IP67 Waterproof)
BougeRV 100PCS Solar Connector with Spanners IP67 Waterproof Solar Panel Cable Connectors...
- VALUE FOR MONEY: With 50 pairs of solar panel connectors (Male & Female) and 55 pairs of solar connector pins (Male & Female). In addition, we will present a pair of...
- CONDUCTOR PIN IS TINNED COPPER: It makes a rock-solid and good sealed connection after crimping the wire into the pin and tightening the connectors, also, these solar...
- WIDE APPLICATIONS RANGE: Compatible with PV cables (Solar Cable) with different insulation diameters (13AWG to 10 AWG), which is suitable for solar cables in various...
When it comes to reliable connections in solar power systems, BougeRV 100PCS Solar Panel Cable Connectors stand out with their IP67 waterproof rating, making them ideal for outdoor applications exposed to harsh weather. This set includes 50 pairs of male and female connectors, plus 55 pairs of connector pins, which guarantees you have plenty to work with. The connectors are made from tinned copper to provide strong, sealed connections. With compatibility for cable insulation between 13AWG and 10AWG, these connectors also include spanners for easy installation. Expect them to last over 20 years, even in extreme conditions.
Best For: Those seeking reliable, cost-effective solar connectors for outdoor installations that require durability and waterproof protection.
Pros:
- Cost-Effective: Offers a larger quantity at a competitive price compared to pre-made connectors.
- Durable Construction: Made from tinned copper and PPO material, providing strong and sealed connections that resist aging and UV damage.
- Long Operational Lifespan: Designed to withstand extreme weather conditions for over 20 years.
Cons:
- Requires Crimper Tool: Installation needs an additional crimper tool which may not be readily available to all users.
- No Pre-made Connectors: Does not come with pre-assembled connectors, which might require more effort for those unfamiliar with DIY installations.
- Limited Compatibility for Insulation Sizes: Only compatible with specific cable insulation diameters (13AWG to 10AWG), potentially excluding some users’ needs.
ECO-WORTHY Solar Crimper Tool Kit (13 PCS)
Sale
ECO-WORTHY Solar Crimper Tool Kit 13 PCS Solar Tools - a Crimper, 10 Pairs of Solar Connectors...
- Full Tool Kit: Contain 1 pair of wire crimper, 10 pairs of solar panel connectors, 2 pairs of solar connector spanner, and a enduring and handy zipper case to keep all...
- Solar Cable Crimper: High-carbon steel, PP+TTR material handle, high precision jaws
- Spanner Wrench: The spanners make you more effortless during installation
The ECO-WORTHY Solar Crimper Tool Kit is ideal for DIY enthusiasts and professional installers of solar power systems due to its extensive set of 13 pieces. This kit includes one crimper made from high-carbon steel, ensuring durability. You’ll find 10 pairs of solar connectors, crafted from PPO material, designed to work with most solar cables. Two spanner wrenches facilitate easier installation. The ergonomic grip of the crimper helps with comfort during use. Stored in a durable zipper case, the components remain organized. With a high customer rating, this tool kit supports efficient solar panel cable assembly, making your projects smoother and more reliable.
Best For: The ECO-WORTHY Solar Crimper Tool Kit is best for DIY enthusiasts and professional installers looking for a versatile and efficient toolset for solar panel cable assembly.
Pros:
- Durable crimper made of high-carbon steel for longevity and strength.
- Includes a comprehensive set of 13 pieces, ensuring all necessary tools for installation are present.
- Ergonomic grip design enhances comfort during extended use.
Cons:
- Some users may find the weight of the tool kit slightly heavy at 0.96 kg.
- The zipper case may not be as rugged as hard case alternatives for protection.
- Limited warranty period of 30 days could be a concern for long-term users.
Factors to Consider When Choosing Mc4 Connectors
When choosing MC4 connectors, you need to take into account several key factors. The waterproof rating is essential, as higher ratings, like IP67, protect against dust and water immersion. Additionally, verify the connector material is durable, the ampacity meets your system’s requirements, and it’s compatible with your cable sizes for easy installation.
Waterproof Rating Importance
Choosing MC4 connectors with the right waterproof rating is vital for guaranteeing the long-term reliability of your solar power system. A rating of IP67 means that the connector can handle immersion in water up to 1 meter for 30 minutes. This is essential for areas with heavy rain or snowfall. On the other hand, connectors rated IP68 provide even better protection against dust and extended water exposure, making them perfect for outdoor installations. If you select connectors with inadequate ratings, you risk corrosion or short circuits, which can damage your system and reduce efficiency. Always confirm that your connectors align with your local environmental conditions to maintain peak connectivity and performance over time.
Connector Material Quality
Connector material quality plays an essential role in the efficiency and longevity of your solar power system. High conductivity materials, like tinned copper, reduce energy losses and enhance overall system performance. For connector bodies, materials such as Polyphenylene Oxide (PPO) and Polyamide (PA) are ideal due to their excellent weather resistance and aging properties. Look for connectors with IP67 or IP68 ratings, as these indicate superior waterproofing and dust resistance, vital for outdoor setups. Additionally, confirm they have UV resistance to withstand sunlight without deteriorating. Finally, these high-quality connectors are often rated to handle up to 1000V and 30A, guaranteeing they can safely manage electrical loads, contributing to a reliable solar power system.
Ampacity and Voltage Ratings
Understanding the ampacity and voltage ratings of MC4 connectors is vital for maintaining the safety and efficiency of your solar power system. MC4 connectors usually have a maximum voltage rating of 1000V DC, which supports safe operation in solar environments. They often feature a standard ampacity rating of 30A, making them suitable for residential and commercial use. It’s imperative to select connectors that align with the voltage and current requirements of your specific solar panels, as mismatched connectors can lead to overheating and potential failures. Always verify that the connectors are tested for contact resistance levels of 0.5mΩ or lower. Finally, consider using connectors that meet relevant safety standards to guarantee reliability in diverse environmental conditions.
Compatibility With Cable Sizes
To guarantee peak performance in a solar power system, it’s important to select MC4 connectors that work well with the cable sizes you’ll be using. MC4 connectors are compatible with cable insulation diameters from 2.5mm² to 6mm², which translates to approximately 14AWG to 10AWG. Choosing the correct cable size is essential for ideal conductivity and performance; improper sizing can lead to energy losses or connection failures. Additionally, many MC4 connectors are designed for a plug-and-play experience, making installation straightforward. However, compatibility can vary between manufacturers, so always check specifications to verify a secure fit. Ultimately, selecting connectors that match your cable size guarantees a reliable connection, promoting safety and effective energy transfer in your solar power system.
Installation Ease and Tools
When selecting MC4 connectors, you should consider how easy they are to install. Many connectors feature plug-and-play functionality, simplifying the setup process and notably shortening your installation time. Connector kits often include helpful tools like spanners or wrenches, enabling quick assembly and disassembly without needing extra tools. Additionally, products that provide compatibility specifications guarantee that your connectors work well with various cable insulation diameters. This attention to detail streamlines installation. Look for connectors with secure locking mechanisms to enhance reliability and minimize accidental disconnections. Furthermore, some kits come with crimping tools, which allow you to make precise connections, guaranteeing ideal electrical performance and enhancing your solar power system’s efficiency.
Durability in Weather Conditions
Choosing the right MC4 connectors requires careful consideration of their durability in various weather conditions. Look for connectors with a waterproof rating of IP67 or IP68, ensuring they resist dust and water ingress. High-quality materials, such as PPO plastics and tinned copper pins, provide excellent UV resistance and durability. You’ll want connectors that withstand an operating temperature range from -40°F to +257°F, maintaining functionality in extreme conditions. The sealing mechanisms, like sealing rings in male connectors, are essential for effective insulation and moisture prevention. Also, prioritize aging resistance; reliable connectors resist environmental degradation, ensuring longevity and performance even in severe weather. By focusing on these factors, you enhance the reliability of your solar power system.
Safety Features and Reliability
Prioritizing safety features and reliability in MC4 connectors is essential for the long-term performance of your solar power system. Look for connectors that include sealing rings, which guarantee effective waterproofing to prevent water and dust ingress. A stable overall design helps maintain reliable operation, even under changing temperatures and environmental conditions. By choosing connectors made from high-quality materials, like tinned copper, you reduce energy losses and improve durability against corrosion. Ascertain the connectors have strong locking mechanisms to prevent accidental disconnections during operation. Additionally, high-quality connectors should be rated for 1000V and 30A, accommodating high electrical loads to meet safety requirements effectively and guaranteeing efficient solar panel operations.
Cost-Effectiveness of Kits
If you’re planning a solar installation, cost-effectiveness in purchasing MC4 connector kits can save you money and streamline your project. Buying connectors in bulk, with kits containing 50 to 100 pieces, markedly lowers the per-unit cost. This approach is particularly beneficial for larger installations. Alongside connectors, many kits include essential installation tools, such as wrenches and crimpers, which means you might skip buying these separately. Additionally, extensive connector kits often accommodate various wire gauge sizes, cutting down on the need for multiple specialized connectors. Bundled kits may also come with warranties and support, enhancing their value by ensuring assistance if you face product issues or dissatisfaction. Consider these factors to maximize your investment.
Frequently Asked Questions
What Is the Lifespan of MC4 Connectors?
The lifespan of MC4 connectors generally ranges from 25 to 30 years when used correctly in solar applications. These connectors are designed to withstand environmental factors, such as UV exposure and extreme temperatures. To maximize their lifespan, make certain the connectors are installed properly and regularly maintained. Inspect them for corrosion or damage, and replace any that show signs of wear. By following these practices, you can help guarantee reliable, long-lasting solar connections.
Can MC4 Connectors Be Reused?
Yes, you can reuse MC4 connectors if they’re in good condition. Inspect them for corrosion or damage; if they look clean and fit securely, reuse is possible. However, repeated connections may lead to wear. If you notice loose fittings or exposed wires, it’s best to replace them. To maintain efficiency, secure all connections properly. Doing this helps guarantee reliable performance in your solar system without compromising safety or power output.
Are MC4 Connectors Resistant to UV Rays?
Yes, MC4 connectors are designed to be resistant to UV rays. This resistance helps to prevent degradation over time, ensuring reliable connections in various weather conditions. Typically, they’re made from durable materials like polycarbonate, which offers strong protection against sun exposure. For best results, you should regularly inspect the connectors for any signs of wear or damage. If you notice any issues, replacing them promptly will help maintain your solar system’s efficiency.
How Do I Properly Install MC4 Connectors?
To properly install MC4 connectors, start by stripping about 10-12 millimeters of insulation from each wire. Insert the wire into the connector until it reaches the end, then crimp it securely with a crimping tool. Confirm you’re using a tool designed for MC4 connectors, as improper crimping can cause connection issues. Finally, lock the connectors together until you hear a click. Following these steps enhances reliability and performance in your solar power system.
What Is the Maximum Voltage Rating for MC4 Connectors?
The maximum voltage rating for MC4 connectors is typically 1,500 volts DC (direct current). This rating allows you to safely connect multiple solar panels in series, increasing the voltage output. It’s essential to verify that the voltage from your solar array does not exceed this limit. When planning your solar setup, always check your panel specifications and wiring to avoid potential damage and verify a safe installation.
