10 Best PV Combiner Boxes for Efficient Solar Power Management
To choose the best PV combiner boxes for efficient solar power management, consider options like the VOU 600V for on/off-grid systems, the 4 String Solar Combiner Box, and robust models like the 6 String Metal box with fuses and circuit breakers. Look for features such as surge protectors, waterproofing (IP65 rating), and pre-wired designs for easy installation. Assess voltage ratings around 250V to 600V and current ratings from 15A to 63A for compatibility in your solar setup. More insights follow.
Key Takeaways
- Assess voltage and current ratings to ensure compatibility with your specific solar array output for optimal performance.
- Look for combiner boxes with built-in protection features, such as fuses and circuit breakers, to enhance safety and reliability.
- Choose models with waterproof (IP65) ratings and durable materials to withstand harsh environmental conditions and extend longevity.
- Consider ease of installation with pre-wired cables and user-friendly designs to simplify setup for non-experts.
- Evaluate the power capacity and scalability to ensure the combiner box meets your current and future solar power needs.
VOU 600V Solar DC PV Combiner Box for On/Off Grid Solar Panel System
VOU 600V Solar DC PV Combiner Box,2 String with Lightning Arrester Connector for On/Off Grid Solar...
- PV combiner box function: PV combiner box tidied up connection and confluence of photovoltaic modules.It is used to reduce the connection of the photovoltaic array to the...
- VOU solar photovoltaic combiner box: equipped with 4pcs15A DC fuses, a high voltage arrester and a 600V 63A circuit breaker. It has short circuit/lightning...
- VOU Combiner Box IP65 Waterproof ABS Housing: The combiner box adopts a sturdy housing. It has an IP65 protection level. It is dustproof, moisture-proof, waterproof...
The VOU 600V Solar DC PV Combiner Box is an excellent choice for homeowners and businesses looking to augment their solar power system’s efficiency. It organizes connections between your solar panels and the inverter, streamlining your system. With a capacity for two strings, it supports a maximum input voltage of 600V and up to 9000W power. The box includes lightning surge protection, enhancing safety for your system. Additionally, the sturdy ABS material construction guarantees it’s weather-resistant, suitable for outdoor use. Easily installed with pre-configured wiring, it aids maintenance without fuss, providing a reliable solution for both on-grid and off-grid setups.
Best For: Homeowners and businesses seeking an efficient and reliable solution for managing their solar power systems.
Pros:
- Versatile Design: Accommodates both on-grid and off-grid solar installations, enhancing its applicability.
- Safety Features: Equipped with multiple protection mechanisms, including lightning surge protection and overcurrent safeguards.
- Easy Installation: Pre-configured wiring simplifies setup and reduces installation time significantly.
Cons:
- Weight: At 3.19 pounds, it may be heavier than some competing models, potentially complicating mounting.
- Limited Input Current: Supports a maximum of 15A, which may not be sufficient for larger solar power systems.
- Fixed Configuration: Pre-configured wiring may limit customization options for advanced installations.
4 String Solar Combiner Box for On/Off Grid Solar System
4 String Solar Combiner Box, IP65 Waterproof PV Combiner Box for On/Off Grid Solar System,with...
- Safety Protection: The solar combiner box is equipped with 63 A circuit breaker and 15 A independent fuse to protect the circuit from short circuit, no voltage and over...
- Material: 4 string pv combiner box is made of strong plastic, which is durable and long-lasting waterproof and more suitable for outdoor installation. IP65 waterproof...
- Easy to Install: The pv box comes with pre-wired cables and Ground wire, plug and play, and mounting clips to quickly secure the box to any regular surface,which can able...
Choosing the right string solar combiner box is essential for both on-grid and off-grid solar systems. The 4 String Solar Combiner Box is IP65 waterproof, ensuring it withstands harsh weather. With a 63A circuit breaker, it protects against short circuits, while a 15A independent fuse offers extra safety. It also features a high-voltage lightning arrester that shields your solar panels and inverter from damage. Installation is simple, as pre-wired cables, a ground wire, and mounting clips are included. This combiner box works with all solar panel brands, so you can confidently build your system, knowing support is available when needed.
Best For: Those looking for a reliable and easy-to-install solar combiner box for both on-grid and off-grid solar applications.
Pros:
- IP65 waterproof rating ensures durability against harsh weather conditions.
- Equipped with safety features like a 63A circuit breaker and a 15A independent fuse for enhanced protection.
- Compatible with all brands of solar panels, offering flexibility in system design.
Cons:
- Limited to a maximum of four strings, which may not suffice for larger setups.
- Installation may still require basic electrical knowledge for optimum safety and effectiveness.
- The use of plastic may raise concerns for some regarding longevity compared to metal alternatives.
PV Combiner Box for Solar Distribution Systems
PV Combiner Box 2 String Solar Distribution Box with 25A, 250A DC Circuit Breakers, 63A,125A AC...
- Durable and Waterproof Design – Made from high-quality ABS and PPC plastic, this PV combiner box features excellent durability, rust resistance, and an IP65 waterproof...
- Comprehensive Protection – Equipped with 2P-250A DC battery breakers, 2P-25A PV input breakers, and 2P-63A, 1P-125A AC input/output breakers. The built-in surge...
- Easy Installation and Convenient Use – The wall-mountable design allows for quick and easy installation with screws. The flip-top design enables easy monitoring and...
For homeowners and solar system installers looking for reliable and efficient power management, a PV combiner box is an essential component. Designed for two-string solar distribution, this box is compatible with 8K-10KW solar inverter systems. It features 25A, 250A DC circuit breakers, ensuring safe power distribution, while protection against electrical surges is provided by built-in surge protection. With an IP65 waterproof rating, you can trust the box to withstand harsh outdoor conditions. Installation is straightforward thanks to its wall-mountable design. The flip-top design allows for easy monitoring and maintenance. This combiner box is ideal for enhancing your solar power setup.
Best For: Homeowners and solar system installers seeking a durable and efficient solution for managing power distribution in their solar energy systems.
Pros:
- Wall-mountable design for easy installation and access.
- Built-in surge protection provides safety against electrical surges and lightning strikes.
- IP65 waterproof rating ensures reliability in harsh outdoor conditions.
Cons:
- Limited to compatibility with 8K-10KW solar inverter systems, which may not suit larger installations.
- Requires professional installation for optimal setup and performance.
- The dual-string capability may not meet the needs of more complex solar configurations.
PV Combiner Box 4 String for Solar Panel System
Elnuimex PV Combiner Box 4 String, IP65 Waterproof Solar Combiner with Lightning Arrester, Metal...
- 【Safety Protection】: The 4 string pv combiner box is equipped with 63A circuit breaker, 20A independent fuse and 9AWG cable, which can prevent circuit short circuit...
- 【Excellent Material】: Solar pv combiner box has professional wires dedicated to solar systems, which are durable, wear-resistant and not easy to break, it can provide...
- 【Easy to Install】: IP65 waterproof pv combiner box has a safety lock that can be opened and closed using the included key. All wires are pre-wired in the box, plug...
Designed specifically for residential or small commercial solar power systems, the PV Combiner Box 4 String is an excellent choice for maximizing energy efficiency and safety. It features an IP65 waterproof rating, ensuring durability against severe weather. With a lightning arrester and a 20A rated current fuse, it’s ready for reliable performance. You’ll find a 63A circuit breaker and 15A independent fuses protecting against short circuits. Installation is simple thanks to pre-wired connectors. Use it for both grid-connected and off-grid systems, as it minimizes outages during failures. Follow the included manual for easy installation, ensuring safe operation.
Best For: Homeowners and small commercial enterprises seeking a reliable and efficient solar power management system.
Pros:
- Robust IP65 waterproof rating ensures durability in harsh weather conditions.
- Simple plug-and-play installation with pre-wired connectors streamlines setup.
- Comprehensive safety features including circuit breakers and fuses protect against electrical hazards.
Cons:
- Limited to a maximum of 4 string connections, which may not be sufficient for larger systems.
- Dependence on included manual for installation might be challenging for those unfamiliar with electrical systems.
- The metal casing may be heavier compared to plastic alternatives, making mounting more difficult.
6 String Metal Solar Combiner Box with Fuse and Circuit Breaker
Elnuimex 6 String Metal Solar Combiner Box, PV Combiner Box with 20A Rated Current Fuse, Surge...
- 【Reliable Protection】: Our solar combiner box is designed to keep safe your solar panels and inverters, ensuring their reliable and safe operation. With built-in 20A...
- 【Easy Installation】: All wires are pre-wired in the PV combiner box with specialized solar system wires, and it comes with a built-in ground connector. The 6 string...
- 【Versatile Applications】: Whether it's for powering public facilities in rural areas, solar power generation in venues, residential off-grid systems, or grid-tied...
When it comes to selecting a solar combiner box, the 6 String Metal Solar Combiner Box with Fuse and Circuit Breaker stands out for its robust protective features. This box helps enhance the safety of your solar panels and inverters, incorporating a 20A rated fuse, surge protection, and a 63A air circuit breaker. You’ll benefit from built-in features like overload and short circuit protection, along with lightning protection and anti-reverse connection capabilities. Pre-wired for easy installation, its durable metal design includes a lock for security. With an IP65 waterproof rating, it’s ideal for diverse applications, ensuring reliable performance in challenging environments.
Best For: This product is best for homeowners and businesses looking for a reliable and secure solution for managing their solar panel systems.
Pros:
- Built-in protection features including overload, short circuit, and lightning protection enhance the safety of solar systems.
- Durable metal housing with a lock provides added security and protection in various environments.
- IP65 waterproof rating ensures performance in harsh weather conditions, making it versatile for different applications.
Cons:
- Installation may require professional assistance for those unfamiliar with electrical systems.
- Limited to 6 strings, which may not be sufficient for larger solar setups.
- Metal housing may be prone to rust if not properly maintained in humid environments.
2 String Solar PV Combiner Box with Surge Protector

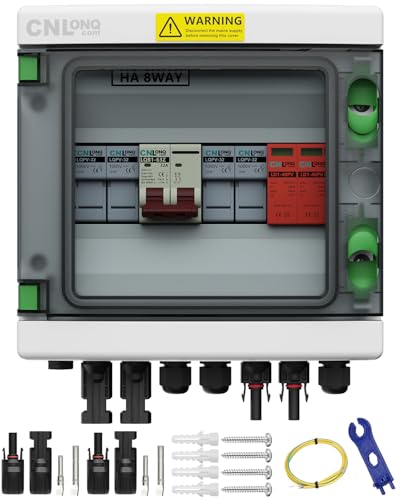

CNLonQcom 2 String Solar PV Combiner Box IP65 2 in 1 Out DC500V 32A Circuit Breaker with Surge...
- [2 Input 1 Output PV Combiner Box]: CNLonQcom's solar combiner box is designed to optimize the connection between the PV array and the inverter. The device supports up to...
- [MCB+SPD+FUSE]: CNLonQcom's PV Combiner Box are equipped with 32A DC500V circuit breaker, DC500V T2 surge protector and 15A DC1000V fuse. Capable of switching circuits...
- [Durable IP65 Waterproof Box]: The junction box is made of high quality PC+ABS material and is IP65 waterproof, flame retardant and UV resistant. It is suitable for both...
A standout feature of the CNLonQcom 2 String Solar PV Combiner Box with Surge Protector is its ability to handle a maximum power of 1,500 watts, making it an ideal choice for homeowners or small business owners looking to optimize their solar energy systems. This box supports two inputs and one output, accommodating systems operating at 12V, 24V, or 48V. Its built-in surge protector and circuit breaker enhance safety by preventing damage from overvoltage and short circuits. Crafted from durable materials, it’s waterproof and UV resistant, proving suitable for both indoor and outdoor applications. You’ll find installation straightforward, thanks to pre-wired connections.
Best For: Homeowners and small business owners looking for an efficient and safe way to optimize their solar energy systems.
Pros:
- Pre-wired with 10AWG cables for easy installation.
- High-quality, durable construction with IP65 waterproof rating.
- Built-in surge protector and circuit breaker for enhanced safety.
Cons:
- Limited to a maximum power capacity of 1,500 watts, which may not suit larger systems.
- Maximum input current of 15A per string might limit compatibility with high-output panels.
- Specific to certain voltage configurations (12V, 24V, 48V), may not accommodate other setups.
Solar 4 String PV Combiner Box for Solar Panel System
lopopvsys Solar 4 String PV Combiner Box with Lightning Arreste, 15A Rated Current Fuse and 2P 63A...
- With 15A fuse and lighting arreste,lighting protection,reverse-current protecting,rain proof
- With longpo PV Combiner Box, each photovoltaic does not exceed 15A/250Vdc. Up to 720W in 12V system, 1440W in 24V system, 2880W in 48V system. The solar combiner box...
- Easy installation, with mounting buckle, no key needed to open and close the box, very easy to use. Suit for any regular surface
The Solar 4 String PV Combiner Box is an excellent choice for anyone looking to optimize their solar power system, especially if you’re working with multiple solar panels. This box features a lightning arrester and individual fused connections for each panel, ensuring protection against over-voltage and over-current. With a rated current of 15A, it supports various systems, such as 720W at 12V or 2880W at 48V. Installation is straightforward with a mounting buckle, requiring no special keys. Designed to be rainproof, it provides durability and safety, proving compatible with any solar panel brand you choose for your setup.
Best For: Individuals or businesses seeking a reliable and efficient solution for combining multiple solar panel strings in their solar power systems.
Pros:
- Easy installation with a user-friendly mounting buckle, eliminating the need for special keys.
- Enhanced protection features, including individual fusing, lightning arresters, and circuit breakers for safety.
- Compatible with any brand of solar panel and connector, ensuring versatile use in various solar setups.
Cons:
- Limited to a maximum current of 15A, which may not suffice for high-demand systems.
- The product’s relatively large size might pose installation challenges in confined spaces.
- May require additional accessories for optimal performance in complex systems.
VEVOR PV Combiner Box for Solar Panel System
VEVOR PV Combiner Box, 6 String Metal Solar Combiner Box with 10A Rated Current Fuse 63A Circuit...
- Durability Meets Reliability: Crafted from rugged steel, our PV combiner box exterior ensures impeccable insulation, moisture resistance, and drip-free performance. Plus...
- Professional PV Combiner Box: Featuring 6 10A DC fuses and a 63A circuit breaker, our 6 string PV combiner box makes maintenance a breeze, and you can easily cut off...
- IP65 Dust & Water Barrier: Our solar PV combiner box boasts an IP65 rating, ensuring waterproof and dustproof protection for long-lasting durability. No frequent...
For those seeking a reliable solution in solar energy systems, the VEVOR PV Combiner Box stands out with its capability to manage up to six strings of solar panels. This box features 10A DC fuses and a 63A circuit breaker, making it suitable for both on-grid and off-grid applications. Its rugged steel construction guarantees durability, providing insulation and moisture resistance. With an IP65 rating, it’s dustproof and waterproof, while built-in lightning protection safeguards your investment. Installation is straightforward; it connects easily with standard solar panel connectors. The VEVOR box also supports quick disconnection for maintenance, enhancing performance and boosting output power efficiently.
Best For: Those looking for a durable and efficient solar panel combiner solution for both on-grid and off-grid systems.
Pros:
- Robust steel construction provides excellent insulation and moisture resistance.
- IP65 rating ensures dustproof and waterproof protection, suitable for outdoor use.
- User-friendly installation with compatibility for various solar panels using standard connectors.
Cons:
- Limited to managing only six strings of solar panels, which may not be sufficient for larger systems.
- Requires access for maintenance, which might be challenging in certain installations.
- The 10A fuses may not be suitable for high-power applications, limiting the overall capacity.
PV Combiner Box for Solar Panel System
PV Combiner Box, 6 Strings Wall Mount Solar Combiner Box IP65 Waterproof Combiner Boxes with 15A...
- 【 Professional and Powerful 】PV combiner box tidied up connection and confluence of photovoltaic modules. It is used to reduce the connection of the photovoltaic...
- 【 High Safety 】It adopts 4 strings with 10A rated current fuse, 2 surge protection devices, and a 550V 63A circuit breaker, and has short circuit/lightning...
- 【 Considerate Design 】The LED indicator on the fuse holder will timely display the status of the fuse to facilitate timely replacement.
When selecting the best PV combiner box for your solar panel system, it’s essential to contemplate how it optimizes connections among photovoltaic (PV) modules. A well-designed combiner box can manage up to six strings of panels, which reduces the complexity of wiring and enhances efficiency. You’ll find features like a 63A circuit breaker and 15A fuses that protect against over-current, ensuring safety during operation. With IP65 waterproofing, it’s suitable for various environments. Adjustable for on-grid or off-grid use, it supports maximum outputs of 720W at 12V, 1440W at 24V, and 2880W at 48V, fitting diverse applications seamlessly.
Best For: Homeowners and businesses seeking a reliable and efficient solution for managing multiple solar panel strings in on-grid or off-grid configurations.
Pros:
- Simplifies connections among up to six strings of PV modules, enhancing overall system efficiency.
- Comprehensive safety features including fuses, surge protection devices, and a circuit breaker prevent power-related issues.
- IP65 waterproof design ensures durability and reliability in various environmental conditions.
Cons:
- May be overbuilt for small-scale solar setups with fewer than four strings of panels.
- Installation can be complex for individuals without prior experience in electrical systems.
- Limited maximum output may not meet the needs of larger solar power installations.
PV Combiner Box for On/Off Grid Solar Panel System
PowGrow PV Combiner Box, 4 String Metal Solar Combiner Box with 15A Rated Current Fuse, Surge...
- Professional PV combiner box is suitable for your Photovoltaic On/Off-Grid Solar Power Generation Systems. Which makes your solar panel system work reliably and safety...
- Metal box with a lock. Waterproof class: IP65. Durable metal box makes it much more suitable for outside use and installation. It has a longer lasting time than the PVC...
- High quality wires. All wires are pre-wired in the box. Our solar combiner box is used professional wires that are especially for solar system. Built-in with a ground...
Choosing a dependable PV combiner box is essential for effectively managing your solar panel system, whether it’s on-grid or off-grid. The 4 String Metal Solar Combiner Box features a 15A rated current fuse, making it suitable for both types of systems. Its durable metal construction guarantees longevity and an IP65 waterproof rating allows for outdoor use. Safety is paramount; this box includes a 50A circuit breaker for short circuit protection and four 15A fuses to prevent overload. Remember, monitor your connections to verify single PV array current stays below 10A and voltage under 250VDC for peak performance.
Best For: Homeowners and installers looking for a reliable and efficient solution for managing on-grid or off-grid solar panel systems.
Pros:
- Durable metal construction with IP65 waterproof rating for outdoor reliability.
- Equipped with multiple safety features, including a 50A circuit breaker and four 15A fuses to enhance system protection.
- Pre-wired cables allow for easy and quick installation, optimizing system efficiency.
Cons:
- Limited to a maximum current of 10A per single PV input array, which may not suit larger systems.
- Requires monitoring of SPD status for maintenance, which may be an additional task for users.
- Metal construction may increase weight, making installation more challenging compared to lighter materials.
Factors to Consider When Choosing a Pv Combiner Box
When choosing a PV combiner box, you need to evaluate several key factors to make sure it meets your system’s needs. Voltage and current ratings are vital; for instance, if your solar panels produce up to 600 volts and 20 amps, your box must match or exceed those numbers. Additionally, look at protection features like fuses, material durability against the elements, and the ease of installation to guarantee compatibility with your overall solar setup.
Voltage and Current Ratings
Understanding voltage and current ratings is essential for selecting the right PV combiner box for your solar power system. You need a combiner box with voltage ratings that meet or exceed the maximum input voltage of your solar array, typically up to 600V for most systems. For current ratings, make certain they align with the maximum output current of your photovoltaic strings, which is commonly 15A per string. This sets a maximum combined output for safety. Additionally, consider a circuit breaker rated for your system’s capacity, often up to 63A, to prevent overcurrent situations. Individual fusing for each string, typically rated around 15A, provides targeted protection and monitoring, making certain efficient operation of your solar power setup.
Protection Features Required
As you evaluate a PV combiner box for your solar power system, it’s essential to prioritize protection features to guarantee safety and reliability. Look for circuit breakers rated at 15A or 63A to prevent overload and short circuits. Incorporating surge protective devices (SPDs) is also important; these protect against lightning strikes and voltage fluctuations. Verify that each input string has individual fuses, ideally rated at 15A or 20A, to isolate faults effectively. Consider a box with an IP65 waterproof rating, too, as this rating shows resistance to dust and moisture. Finally, proper grounding protection is imperative; it guards your solar panels and inverters from electrical faults, enhancing the overall safety of your system.
Material Durability and Resistance
Choosing the right material for your PV combiner box is essential for ensuring its longevity and performance. High-quality ABS and PPC plastics offer excellent rust resistance, making them ideal for outdoor use. Look for a robust IP65 waterproof rating, which guarantees protection against rain, dust, and moisture. If durability is your priority, consider metal casings, as they provide superior impact resistance and can withstand extreme weather conditions. UV resistance is critical too; lower-quality plastics degrade when exposed to sunlight, risking failure. Additionally, always check for proper insulation materials, which are important for electrical safety. This insulation prevents shorts and enhances resistance to high temperatures, ensuring safe operation throughout its lifespan.
Installation Simplicity and Convenience
When it comes to installing a PV combiner box, simplicity and convenience can greatly impact your overall solar setup experience. Many models include pre-wired cables, which cut down your installation time by removing the need for manual wiring. User-friendly designs with plug-and-play components simplify connections, making setup easier, especially if you’re less experienced in electrical work. Some units feature integrated mounting clips, allowing quick installation on different surfaces without extra tools. Additionally, safety locks and grounding wires enhance security and electrical safety during the process. Clear instructional manuals and well-labeled components guide you through the installation, ensuring accessibility for both DIY enthusiasts and technicians. With these features, you’re equipped for a smoother solar setup.
Compatibility With Solar Systems
To guarantee your solar setup is efficient, pay close attention to the compatibility of your PV combiner box with your solar panels. First, verify it matches the voltage specifications, typically between 250V and 600V. This range is essential for peak performance. Next, check the maximum input current rating; it should safely handle your solar panel strings, usually around 15A to 32A per string. Confirm that the box supports both grid-tied and off-grid setups, depending on your needs. Take a close look at the connectors; they must fit those on your solar panels and other equipment. Finally, consider its installation environment—an outdoor-rated box should have an IP65 rating or higher for waterproofing.
Safety Circuit Protection Mechanisms**
Effective safety circuit protection mechanisms are essential in a PV combiner box, as they help prevent damage from issues like short circuits and overcurrents. You should look for fuse ratings typically between 15A and 20A, depending on design. High-voltage lightning arresters are a valuable feature, protecting your solar panels and inverters from lightning-induced voltage surges. Additionally, many combiner boxes include circuit breakers rated at 63A, which disconnect circuits during faults. Some models have multiple fuses, such as 4 x 15A, allowing for localized shutdowns and minimizing maintenance disruptions. Finally, built-in surge protection devices (SPDs) safeguard your system from external voltage spikes, ensuring reliable operation and longevity, essential for efficient solar power management.
Frequently Asked Questions
How Do I Determine the Right Size Combiner Box for My System?
To determine the right size combiner box for your system, first calculate the total current from all solar panels. Add up the maximum output current of each panel. For example, if you have four panels, each producing 10 amps, your total is 40 amps. Select a combiner box rated for at least that total, plus a safety margin, typically around 25%. This guarantees your system operates effectively and safely under varying conditions.
Can I Install a Combiner Box Myself, or Should I Hire a Professional?
You can install a combiner box yourself if you have electrical experience, but hiring a professional is often safer. A combiner box connects multiple solar panel outputs into one wire, simplifying installation. If you choose DIY, make sure you follow local codes and use proper tools. Understand voltage ratings and current specifications; for example, if your panels total 30 amps, choose a box capable of handling at least 40 amps for safety. Prioritize accuracy.
What Maintenance Do PV Combiner Boxes Require Over Time?
PV combiner boxes need regular upkeep to function well. Start by checking connections monthly, tightening any loose wires to prevent energy loss. Every six months, inspect for corrosion or wear, clearing debris that could cause damage. Annually, perform a thorough visual inspection and test the circuits with a multimeter to guarantee proper voltage levels. Keeping your box clean and maintaining its components will prolong its lifespan and optimize your solar system’s efficiency.
Are There Any Warranties Offered With These Combiner Boxes?
Yes, many combiner boxes come with warranties, usually ranging from 5 to 10 years. These warranties cover defects in materials and workmanship, ensuring you’re protected against potential failures. It’s important to read the warranty details carefully, as they may outline specific conditions for coverage. Some manufacturers even offer extended warranties for added peace of mind. Always keep your purchase receipts and register your product to qualify for warranty benefits and service.
How Does Temperature Affect the Performance of a PV Combiner Box?
Temperature considerably impacts a PV combiner box’s performance, much like heat affects the functioning of an engine. High temperatures can reduce the efficiency of the internal components, potentially leading to overheating or failure. For example, at temperatures above 85°F (29°C), you might see a drop in efficiency by around 10%. Conversely, cold temperatures can cause less immediate issues, but prolonged exposure can still affect longevity and performance. Proper insulation helps mitigate these effects.
