The 10 Best PV Junction Boxes for Efficient Solar Projects in 2026
For efficient solar projects in 2026, you’ll want to contemplate the top PV junction boxes available. Look for the Gratury Junction Box with IP67 waterproof protection and durable ABS plastic. The Soladeck 0399 offers excellent metal construction for up to 100 amps. Contemplate a PV Combiner Box for easy connections without overloading. Each box has distinct features like surge protection and varying string capacities, ensuring reliability and safety. Want to find out more options?
Key Takeaways
- Consider junction boxes with high IP ratings (IP67 or IP68) for superior moisture and dust protection in solar installations.
- Evaluate temperature tolerance; look for models that operate effectively between -35°C to 75°C for various climates.
- Choose durable materials like galvanized steel or high-quality ABS plastic for long-lasting performance in harsh environments.
- Ensure electrical ratings match your solar system requirements, such as 600 VDC or 1000 VDC, to prevent overloads.
- Opt for models with built-in safety features, like circuit breakers and lightning arresters, to enhance protection and reliability.
Junction Box IP67 Waterproof Plastic Enclosure for Electrical Projects
Gratury Junction Box, IP67 Waterproof Plastic Enclosure for Electrical Project, Hinged Grey Cover...
- Weatherproof & waterproof designed enclosure box, suitable for harsh outdoor environments or indoor industrial applications
- Includes a mounting panel for easy installing PCB board, terminal or any other electrical components which need to be fixed on
- Simple hinged cover, easy open and close, stainless steel latches can keep a good watertight
The Gratury Junction Box stands out as an ideal choice for your solar projects, particularly due to its IP67 waterproof rating, ensuring maximum protection against water and dust. This junction box, measuring 290×190×140mm, weighs just 1.04 kg, making it lightweight yet sturdy. Its high-grade Acrylonitrile Butadiene Styrene (ABS) plastic construction is exceptionally weatherproof, ideal for harsh environments. Additionally, you can mount it on walls or poles, providing flexibility in installation. The hinged cover features stainless steel latches for a watertight seal, while its lockable design prevents unauthorized access. With a solid customer rating of 4.7 stars, it’s a trusted choice.
Best For: Those seeking a reliable and durable junction box for outdoor electrical projects, particularly in harsh environments.
Pros:
- IP67 waterproof rating provides excellent protection against water and dust.
- Lightweight and sturdy design, making it easy to install without compromising durability.
- Lockable cover ensures security and prevents unauthorized access.
Cons:
- May require drilling for cable outlets, which could be cumbersome for some users.
- Larger size might not be suitable for compact installations.
- Limited color options, as it only comes in grey.
Soladeck 0399 Rail Mount PV Junction Box Black (1 Box)
Soladeck 0399 Rail Mount PV Junction Box Black (1 Box)
- Specifications Usage Rail Mounted Material 20 Gauge G90 Galvanized Steel Color Powder Coated Black Approx Height (in) 3.0 Interior Space 162 cubic inches Maximum Voltage...
When it comes to choosing the right junction box for solar projects, the Soladeck 0399 Rail Mount PV Junction Box stands out for its robust construction and weather-resistant design. Made from 20 gauge G90 galvanized steel, this box withstands various environmental conditions, making it suitable for outdoor installations. It features an enclosure rating of NEMA Type 3R, ensuring protection against dust and rain. With a height of 3.0 inches and an interior space of 162 cubic inches, you’ll have ample room for wiring. It’s reliable, handling a maximum voltage of 1000 VDC and currents up to 100 amps, making it a trustworthy choice for photovoltaic systems.
Best For: Solar project installers looking for a durable and weather-resistant junction box for photovoltaic systems.
Pros:
- Robust construction using 20 gauge G90 galvanized steel for outdoor durability.
- Generous interior space of 162 cubic inches allows for ample wiring accommodations.
- High electrical ratings, supporting up to 1000 VDC and 100 amps for reliable performance.
Cons:
- Limited to a maximum ambient temperature of 75°C, which may not suit extremely hot environments.
- NEMA Type 3R rating may not protect against all environmental elements in harsh conditions.
- Requires proper rail mounting, which may complicate installation for some users.

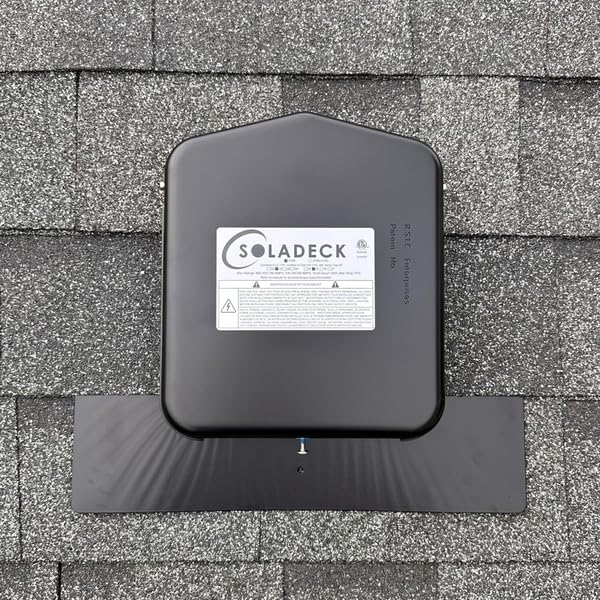

Generic SolaDeck 0799-5B Roof Mounted PV Junction Box (1 Box)
Generic SolaDeck 0799-5B Roof Mounted PV Junction Box (1 Box)
- Specifications Usage Asphalt or Cedar Roof Material G90 Galvanized Steel Color Power Coated Black Approx Height (in) 3.0 Interior Space 225 cubic inches Maximum Voltage...
For homeowners with asphalt or cedar roofs seeking reliable and durable connectivity for their solar projects, the Generic SolaDeck 0799-5B Roof Mounted PV Junction Box stands out as an excellent choice. Constructed from G90 galvanized steel, this junction box resists harsh weather while the power-coated black finish enhances aesthetics. With dimensions of approximately 3.0 inches high and 225 cubic inches of interior space, it fits comfortably in tight locations. The box handles up to 600 VDC/240 VAC at 120 Amps, making it suitable for various solar configurations. Its lifetime warranty underscores its durability and reliability, ensuring peace of mind for your installation.
Best For: Homeowners with asphalt or cedar roofs seeking reliable and durable connectivity for their solar projects.
Pros:
- Durable construction with G90 galvanized steel and a power-coated black finish for weather resistance.
- Suitable for a wide range of solar configurations with a maximum voltage of 600 VDC/240 VAC and 120 Amps.
- Comes with a lifetime warranty, ensuring peace of mind for long-term use.
Cons:
- May not be suitable for non-roof-mounted applications or other roofing materials.
- Size may be limiting for larger or more complex installations.
- Installation requires careful adherence to specific slope guidelines (2/12 to 12/12), which may not fit all roof types.
PV Combiner Box 4 String for Solar Panel System
Elnuimex PV Combiner Box 4 String, IP65 Waterproof Solar Combiner with Lightning Arrester, Metal...
- 【Safety Protection】: The 4 string pv combiner box is equipped with 63A circuit breaker, 20A independent fuse and 9AWG cable, which can prevent circuit short circuit...
- 【Excellent Material】: Solar pv combiner box has professional wires dedicated to solar systems, which are durable, wear-resistant and not easy to break, it can provide...
- 【Easy to Install】: IP65 waterproof pv combiner box has a safety lock that can be opened and closed using the included key. All wires are pre-wired in the box, plug...
One standout feature of the PV Combiner Box 4 String for solar panel systems is its robust safety measures, including a 63A circuit breaker and a 15A independent fuse designed to prevent short circuits. With an IP65 waterproof rating, this box withstands harsh weather, making it reliable for various installations. Its pre-wired design allows for easy plug-and-play setup, complemented by four pairs of connectors for direct solar panel connections. The box includes a lightning arrester, enhancing protection against electrical surges. This product’s durability and functionality make it ideal for both grid-connected and off-grid systems, facilitating efficient solar energy management.
Best For: Those looking for a reliable and efficient solution for solar panel systems, particularly in areas prone to severe weather conditions.
Pros:
- Robust safety features including a 63A circuit breaker and 15A fuse prevent short circuits and overloads.
- IP65 waterproof rating ensures durability and functionality in harsh weather environments.
- Easy installation with pre-wired design and included connectors for quick setup.
Cons:
- Limited to a maximum of 4 strings, which may not be sufficient for larger solar systems.
- Metal casing may be heavier than plastic alternatives, potentially complicating installation.
- Requires a key for the safety lock, which might be inconvenient in emergency situations.
6 String Metal Solar Combiner Box with Surge Protection
Elnuimex 6 String Metal Solar Combiner Box, PV Combiner Box with 20A Rated Current Fuse, Surge...
- 【Reliable Protection】: Our solar combiner box is designed to keep safe your solar panels and inverters, ensuring their reliable and safe operation. With built-in 20A...
- 【Easy Installation】: All wires are pre-wired in the PV combiner box with specialized solar system wires, and it comes with a built-in ground connector. The 6 string...
- 【Versatile Applications】: Whether it's for powering public facilities in rural areas, solar power generation in venues, residential off-grid systems, or grid-tied...
The 6 String Metal Solar Combiner Box with Surge Protection stands out as an essential choice for homeowners and businesses looking to optimize their solar panel systems. Featuring a 20A rated current fuse and a 63A air circuit breaker, it guarantees safe operation for your solar components. Built-in fuses protect against overloads and short circuits, while lightning protection enhances reliability. Its IP65 waterproof rating guarantees durability in harsh weather. Suitable for various applications, including off-grid systems and public facilities, this combiner box also includes a status indicator for performance monitoring, guaranteeing your solar setup operates efficiently.
Best For: The 6 String Metal Solar Combiner Box is best for homeowners and businesses seeking reliable and efficient solar energy solutions.
Pros:
- Robust Protection: Equipped with built-in fuses, surge protection, and lightning protection for enhanced safety.
- Versatile Applications: Suitable for a range of uses, from residential off-grid systems to public facilities.
- Durable Design: IP65 waterproof rating ensures functionality in various weather conditions.
Cons:
- Installation Complexity: May require professional installation for optimal performance and safety.
- Limited Compatibility: Designed specifically for certain solar panel configurations, which may not fit all systems.
- Cost: Higher upfront investment compared to simpler combiner box options.
SolaDeck 0599B UL50 Type 3R Roof Mount PV Junction Box in Black
SolaDeck 0599B UL50 Type 3R Roof Mount PV Junction Box in Black
- Base and cover stamped from galvanized steel
- 35mm din rail and ground block factory installed
- 2/12 – 12/12 roof slopes
SolaDeck’s 0599B UL50 Type 3R Roof Mount PV Junction Box in Black stands out as an excellent choice for solar project installations, especially for those working with varying roof slopes. It accommodates roof slopes from 2/12 to 12/12, ensuring versatility for various building designs. Constructed from durable galvanized steel, this junction box features a factory-installed 35mm din rail and ground block for easy wiring. With a voltage rating of 600 VDC/100A and ambient temperature range from -35°C to 75°C, it’s designed to withstand harsh conditions. Plus, a lifetime warranty offers peace of mind for your investment in reliable solar energy.
Best For: Those seeking a durable and versatile junction box for solar installations on various roof slopes.
Pros:
- Constructed from durable galvanized steel for long-lasting performance.
- Accommodates a wide range of roof slopes (2/12 to 12/12) for versatile applications.
- Comes with a lifetime warranty, providing assurance of quality and reliability.
Cons:
- The black color may absorb more heat compared to lighter-colored options.
- Installation may require additional components for specific solar setups.
- Limited temperature range might not suit extremely hot or cold climates outside the specified range.
PV Junction Box 0599B
SOLADECK PV Junction Box 0599B
- Base and cover stamped from galvanized steel 35mm din rail and ground block factory installed 2/12 – 12/12 roof slopes Slotted cover with one preinstalled set screw...
When selecting a reliable junction box for your solar projects, the PV Junction Box 0599B stands out because it features robust construction from galvanized steel, ensuring durability in various weather conditions. This box has a temperature rating ranging from -35°C to 75°C, making it suitable for diverse climates. With electrical ratings of 600 VDC/80A and 240 VAC/80A, it operates efficiently under load. The design includes four knockouts for easy wiring and a slotted cover with a preinstalled set screw for security. Additionally, it’s compliant with ETL and UL1741 standards, ensuring safety and reliability in your installation.
Best For: The PV Junction Box 0599B is best for solar energy installers and electricians seeking a durable and compliant junction box for various weather conditions.
Pros:
- Sturdy construction from galvanized steel enhances durability and weather resistance.
- Wide temperature rating of -35°C to 75°C accommodates diverse environmental conditions.
- Complies with ETL and UL1741 standards, ensuring safety and reliability for installations.
Cons:
- Limited to specific electrical ratings, which may not meet the needs of all solar projects.
- Installation may require additional tools for optimal wiring configurations.
- The slotted cover design might not provide complete waterproof protection in extreme environments.
Solar 4 String PV Combiner Box for On/Off Grid Solar Panel System
lopopvsys Solar 4 String PV Combiner Box with Lightning Arreste, 15A Rated Current Fuse and 2P 63A...
- With 15A fuse and lighting arreste,lighting protection,reverse-current protecting,rain proof
- With longpo PV Combiner Box, each photovoltaic does not exceed 15A/250Vdc. Up to 720W in 12V system, 1440W in 24V system, 2880W in 48V system. The solar combiner box...
- Easy installation, with mounting buckle, no key needed to open and close the box, very easy to use. Suit for any regular surface
For those seeking a reliable solution for connecting multiple solar panels, the Solar 4 String PV Combiner Box stands out due to its excellent protection features and user-friendly design. This box integrates up to four solar panels, providing a maximum of 2,880 watts on a 48V system. It features a lightning arrester and individual fused connections for over-voltage and over-current protection. You’ll appreciate the rainproof design, ensuring durability in various weather conditions. Installation is straightforward, requiring no special tools, and it’s compatible with any solar panel brand. With an average rating of 4.6 stars, it’s a trusted choice for both on-grid and off-grid systems.
Best For: Individuals or businesses looking for an efficient and safe way to connect multiple solar panels in both on-grid and off-grid systems.
Pros:
- Individual fused connections provide enhanced over-voltage and over-current protection for each panel.
- Easy installation process with no special tools required, making it user-friendly.
- Rainproof design ensures durability in various weather conditions.
Cons:
- Limited to a maximum capacity of 2,880 watts, which may not be sufficient for larger systems.
- Relatively bulky dimensions (12.6 x 8.3 x 5.7 inches) may require more space during installation.
- Best Sellers Rank indicates it might not be the most popular choice in a crowded market.
Outdoor Waterproof Electrical Box Junction Box IP67 ABS Plastic Enclosure
YETLEBOX Outdoor Waterproof Electrical Box Junction Box Weatherproof IP67 ABS Plastic Enclosure...
- [EASY TO MOUNT] The outdoor waterproof electrical box includes mounting plate that allow you to mount your board or device in the project box easily. Also come with...
- IP67 GRADE - IP67 waterproof grade, which means dust-tight and protected from moisture challenges up to jetting water, keep all your electrical equipment Safe & Dry. It...
- EASY FOR DIY - Simple hinged cover, easy open and close, Stainless steel latches make it more durable and provide better waterproof performance. This junction box can be...
Choosing the right junction box for your solar project is essential, and the Outdoor Waterproof Electrical Box with an IP67 rating stands out for its exceptional durability and waterproof features. This 8.6″x6.6″x4.3″ enclosure is designed from high-quality ABS plastic, making it ideal for outdoor settings. With IP67 certification, it’s both dust-tight and water-resistant, protecting your electronics from jetting water. The junction box includes a mounting plate and four stainless steel wall brackets for secure installation. Plus, it features two 1/2 NPT cable glands for easy external wire connections, ensuring that your solar project remains safe and effective in any weather condition.
Best For: This outdoor waterproof electrical box is best for DIY enthusiasts and professionals looking for a durable and reliable solution for their electronics projects exposed to various weather conditions.
Pros:
- High-quality ABS plastic construction provides excellent impact resistance and durability.
- IP67 rating ensures complete dust-tightness and protection against water, ideal for outdoor use.
- Includes mounting accessories for easy installation and access to the internal components.
Cons:
- The size may be too large for smaller projects or installations.
- Requires additional tools for drilling and customization, which may be a hassle for some users.
- Stainless steel latches may rust over time if not properly maintained or exposed to harsh conditions.
Outdoor Waterproof Junction Box for Electrical Cables
SZFUDIGO Outdoor Waterproof Junction Box Plastic，Outdoor Cable Electrical Box Waterproof ，Open...
- junction box specifications :SZFUDIGO waterproof junction box 2 Way One in, one out。with a rated current of ≤ 40A and a rated voltage of ≤ 450V for the matching...
- IP68 protection level:Integrated injection molding design, waterproof level up to IP68 (tested with 4-meter water column for 120 hours), equipped with 2-sets of sealing...
- High-Quality PA66 nylon Materials :electrical junction box made of high-quality PA66 nylon, it has waterproof, dustproof, flame retardant, and UV resistant properties...
An outdoor waterproof junction box, like the SZFUDIGO model, is essential for ensuring the safety and reliability of electrical connections in various outdoor environments. This junction box supports a current of up to 40 amps and can handle voltages up to 450 volts. It fits cables with diameters of 5-12mm, making it versatile for different projects. With an IP68 rating, it withstands water penetration and dust exposure. Made from high-quality PA66 nylon, the box is UV resistant and flame retardant. Use it for solar panel junctions, outdoor lighting, and much more, ensuring durable connections that last.
Best For: Outdoor enthusiasts, electricians, and contractors looking for reliable and waterproof electrical connections in challenging environments.
Pros:
- IP68 protection level ensures superior water and dust resistance for outdoor applications.
- Made from high-quality PA66 nylon, offering durability against UV rays and flame.
- Versatile design accommodates various cable sizes, supporting multiple electrical projects.
Cons:
- May be overkill for indoor applications where moisture and dust exposure are minimal.
- The compact size might limit the number of wires that can be comfortably accommodated.
- Pricing may be higher compared to basic junction boxes without waterproof features.
Factors to Consider When Choosing a PV Junction Box
When you choose a PV junction box, it’s essential to take into account several key factors. Focus on environmental ratings, as they determine how well the box can withstand diverse weather conditions, and pay attention to material durability to guarantee longevity. Electrical ratings specifications are equally important, since they define the box’s capacity to handle the system’s voltage and current without risk.
Environmental Ratings Importance
Understanding environmental ratings is essential for ensuring the reliability and longevity of PV junction boxes in solar installations. These ratings, such as NEMA Type ratings, show how well a junction box can resist weather elements like rain and dust. A junction box with an operating temperature range of -35°C to +75°C is critical for performance in both cold and hot climates. The IP rating system, or Ingress Protection, indicates how well the enclosure shields against water and dust; aim for an IP67 or IP68 rating for ideal moisture protection. By choosing a box with proper environmental ratings, you can extend its lifespan and lower maintenance needs. This ultimately boosts the overall efficiency and reliability of your photovoltaic system.
Material Durability Considerations
Choosing the right material for a PV junction box impacts its overall durability and performance in various environmental conditions. Materials like galvanized steel offer strong corrosion resistance, which is essential for longevity, especially in harsh climates. On the other hand, high-grade Acrylonitrile Butadiene Styrene (ABS) plastic provides a lightweight and sturdy option that’s weatherproof, making it suitable for outdoor settings. Consider NEMA Type ratings, such as Type 3R or Type 4; these indicate the box’s ability to endure rain, dust, and other environmental stressors. Additionally, ascertain materials are UV resistant to prevent damage from sunlight and check the ambient temperature rating, which should ideally range from -35°C to +75°C for effective performance in extreme conditions.
Electrical Ratings Specifications
Selecting the right electrical ratings for a PV junction box is essential for guaranteeing safety and efficiency in your solar project. The maximum voltage ratings typically range from 600 VDC to 1000 VDC, depending on your specific requirements. Current ratings can reach up to 120 Amps, which is important if you’re connecting multiple solar panel strings. Verify the ratings comply with standards like UL1741 and CSA C22.2 No. 290 for reliability. Also, consider NEMA ratings—Type 3R is designed for outdoor use, protecting against rain and ice. Finally, know the ambient temperature range, from -35°C to 75°C, to select a junction box that performs well in extreme conditions without losing efficiency.
Installation Compatibility Factors
The installation compatibility of a PV junction box plays a significant role in the overall success of your solar project. When choosing, confirm factory-installed din rails and grounding blocks match your mounting needs. It’s crucial to check if the junction box accommodates your roof slope; some models are designed for specific angles, from 2/12 to 12/12. Additionally, consider the knockout options, which simplify wiring and connections to solar panels and inverters. Confirm the dimensions provide sufficient internal space for components like circuit breakers and fuses to maintain safety and efficiency. Finally, verify the installation type—rail-mounted or roof-mounted—suits your designated application area, leading to peak performance in your photovoltaic system.
Safety Features Necessity
When considering a PV junction box, incorporating essential safety features guarantees your solar project runs smoothly and reliably. Look for circuit breakers and fuses, as they protect against over-voltage and short circuits, which can damage your system. A lightning arrester is vital; it shields electrical components from surges caused by lightning strikes, reducing damage risks. Additionally, you need reverse-current protection to stop current from flowing back, preventing potential overheating. Make sure the junction box has a waterproof rating of IP65 or IP68 to guard against water and dust, critical for harsh environments. Finally, choose a model with locks or tamper-resistant latches that prevent unauthorized access, ensuring the safety and integrity of your electrical connections inside the junction box.
Temperature Tolerance Range
Considering the temperature tolerance range is vital for guaranteeing your PV junction box operates effectively in various environments. Most models typically range from -35°C to 75°C. This range allows your junction box to function reliably in diverse climates, whether for residential or industrial solar setups. Extreme temperatures can notably impact the performance and lifespan of its components. As a result, it’s essential to select a box that can handle your local climate conditions. When choosing, look for a model compliant with industry standards, like NEMA Type ratings, which guarantee better temperature resistance and robustness. Prioritizing these factors helps guarantee safety, dependability, and reduces thermal-induced failures in outdoor installations, ultimately optimizing your solar project’s effectiveness.
Weatherproofing and Sealing
Selecting a PV junction box requires careful attention to weatherproofing and sealing, especially since these features protect your electrical connections from environmental damage. Look for an enclosure with a high IP rating, like IP65 or IP67; these ratings indicate excellent dust and water resistance. Verify the sealing mechanisms, such as silicone pads or latches, can withstand harsh conditions and provide a watertight seal to prevent moisture intrusion. Consider using materials such as galvanized steel or high-grade ABS plastic for added durability. Evaluate the temperature resistance too; materials should operate effectively between -35°C and +75°C. Finally, check features like drain holes or ventilation options that help prevent condensation while maintaining effective weatherproofing.
Maintenance Accessibility Options**
Maintenance accessibility is essential for keeping your PV junction box functioning efficiently over time. When you choose a junction box, consider features like hinged covers or removable lids that make maintenance easier. These allow you to troubleshoot issues quickly without extensive disassembly. Designs with mounting options or pre-installed din rails simplify installation and maintenance tasks. Look for junction boxes with transparent windows, as they provide visual feedback on operational status during inspections. Additionally, confirm any safety locks are user-friendly, enhancing efficiency while preventing unauthorized access. Finally, evaluate the availability of knockouts or cable entry points, as they enable easier cable management during routine maintenance or upgrades, ultimately supporting the longevity and performance of your solar project.
