The 5 Best Rapid Shutdown Devices: Safety Solutions You Can Trust
When selecting rapid shutdown devices, consider the CCA Cloud Connect Advanced Outdoor Data Logger for real-time data tracking, or the Solar Rapid Shutdown Device for its high voltage rating of up to 1500V and emergency compliance. The Emergency Stop Button offers a waterproof option, while the Smart Rapid Shutdown Device integrates easily with existing systems. Don’t overlook the TS4-A-F Fire Safety Module, certified for safety standards. Keep exploring to find the best choice for your needs.
Key Takeaways
- TS4-A-F Fire Safety Module: Certified by IEC and UL, this module ensures compliance with NEC standards for safe emergency shutdowns in PV systems.
- Solar Rapid Shutdown Device: Rated for DC 1000V to 1500V with strong outdoor durability, suitable for emergency situations while meeting safety standards.
- Smart Rapid Shutdown Device Switch: Compact design allows for easy integration, promoting safety during emergencies and requires a Control Box for optimal functionality.
- Emergency Stop Button: Offers an IP67 waterproof rating and prevents accidental activation, ideal for versatile applications with a maximum load of 6A-110V.
- CCA Cloud Connect Logger: Provides real-time data analysis and connectivity options, enhancing performance tracking and compliance with safety regulations.
CCA Cloud Connect Advanced Outdoor Data Logger and Rapid Shutdown Controller
Tigo 346-00000-00 CCA Cloud Connect Advanced Outdoor Data Logger and Rapid Shutdown Controller
- Universal data-logger tha works with the TAP, TS4-A-O, TS4-A-S, and TS4-A-M
- Works with Tigo TS4-O,M,S
- Enables module level monitoring with the Tigo Energy intelligence platform when paired with the TAP
The CCA Cloud Connect Advanced Outdoor Data Logger and Rapid Shutdown Controller is an ideal choice for solar energy professionals who need effective data management and system safety measures. This compact device, one of the smallest solar data loggers globally, helps you analyze data in real-time, ensuring you can monitor your system’s performance effectively. It’s compatible with Tigo’s TAP, TS4-A-O, TS4-A-S, and TS4-A-M products, enhancing module-level monitoring when paired with the Tigo Energy intelligence platform. With connectivity options like Ethernet, Wi-Fi, or cellular, you gain immediate access to crucial system data, supporting better installation decisions and safety compliance.
Best For: Solar energy professionals who require efficient data management and safety measures for monitoring system performance.
Pros:
- Small and compact design: One of the smallest solar data loggers available, making it easy to install in various locations.
- Real-time data analysis: Enables immediate insights into system performance for better decision-making.
- Versatile connectivity options: Supports Ethernet, Wi-Fi, and optional cellular connectivity for accessible data retrieval.
Cons:
- Power supply not included: Requires an additional purchase or setup to power the device.
- Compatibility limits: Only works with specific Tigo products (TAP, TS4-A-O, TS4-A-S, and TS4-A-M).
- Potential setup complexity: May require technical knowledge for installation and integration with existing systems.
Solar Rapid Shutdown Device for PV Array
Seeking a reliable solution for enhancing safety in solar energy applications? Consider the Solar Rapid Shutdown Device, specifically designed for PV array disconnects. This firefighter safety switch operates at rated voltages from DC 1000V to 1500V and supports maximum currents of 55A. It handles 1-2 strings, accommodating a capacity of 10 strings at 26A DC. With an IP65/IP66 protection level, it guarantees durability in harsh outdoor conditions. Importantly, it complies with firefighter safety standards, making it a trustworthy choice for emergency situations. Available at factory prices, starting with a minimum order of 10 units, it’s a solid investment for safety.
Best For: Solar energy contractors and installers seeking a reliable safety solution for photovoltaic systems to ensure compliance with emergency safety standards.
Pros:
- High Voltage Capacity: Rated for DC 1000V to 1500V, accommodating various solar setups.
- Safety Compliance: Meets firefighter safety standards for enhanced emergency response.
- Durability: IP65/IP66 protection ensures resilience against outdoor elements.
Cons:
- Minimum Order Requirement: Must order at least 10 units, which may not suit smaller projects.
- Specific Application: Primarily designed for PV arrays, limiting flexibility for other uses.
- Higher Initial Cost: As a specialized safety device, it may come with a higher upfront investment compared to standard switches.

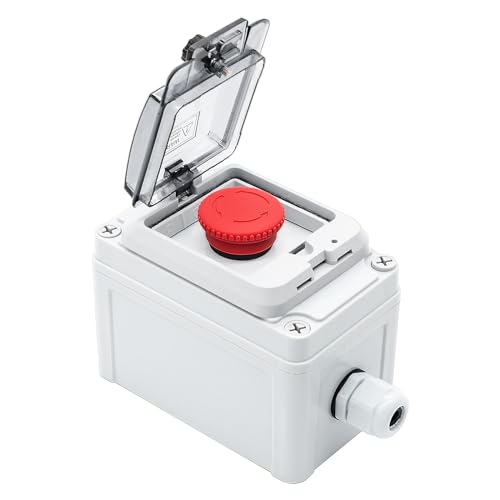

Emergency Stop Button with Cover, IP67 Waterproof Push Switch
GUETNEU Emergency Stop Button with Cover, IP67 Waterproof Push Button Switch Box Mushroom Momentary...
- 【High Quality Material】: This product is made of ABS plastic, which is insulated, flame retardant, corrosion resistant, and has strong heat resistance and impact...
- 【Waterproof Transparent Cover】: IP 67 waterproof protection. It can better protect electronic components. The front side is raised around a circle to prevent...
- 【High quality accessories】: Layer by layer protection. Each component is carefully selected and manufactured with durable quality, good sealing and waterproof in all...
For anyone working in industrial settings or environments where safety is a priority, the Emergency Stop Button with Cover stands out as an essential tool. This push button switch features an IP67 waterproof rating, safeguarding critical electronic components against water damage. It’s rated for AC/DC use up to 380 volts, accommodating various applications. Made from high-quality ABS plastic, it offers impressive resistance to heat, impacts, and corrosion. The integrated cover prevents accidental activation and potential injuries. Installation is straightforward: remove the cover, connect the wiring, mount it securely, and reattach the cover. Trust this button for reliable and effective safety measures.
Best For: Industrial workers and safety-conscious professionals seeking a reliable emergency stop mechanism.
Pros:
- Durable construction with high-quality ABS plastic for resistance to heat, impacts, and corrosion.
- IP67 waterproof rating protects against water damage, ensuring safe operation in harsh environments.
- Simple installation process with included accessories for easy integration into industrial control systems.
Cons:
- Limited to a maximum load of 6A-110V, which may not suffice for high-power applications.
- The design may not be suitable for aesthetic-focused installations where visuals are a priority.
- The raised front design could potentially be prone to accidental engagement if not installed in a controlled environment.
Smart Rapid Shutdown Device Switch for PV System
When it comes to enhancing the safety of photovoltaic (PV) systems, the Smart Rapid Shutdown Device Switch stands out for its compact design and essential functionality. Measuring just 1.18 by 0.79 by 0.39 inches and weighing 1.76 ounces, this device integrates seamlessly into your setup. It’s vital to pair it with a Control Box to guarantee efficient operation. By enabling rapid shutdown during emergencies, it considerably improves safety. You can submit feedback if you find a lower price elsewhere, promoting competitive pricing. Remember, you’ll need to sign in to share this feedback. Prioritize safety with this smart solution for your PV system.
Best For: Individuals or businesses looking to enhance the safety of their photovoltaic (PV) systems.
Pros:
- Compact design allows for easy integration into existing setups.
- Provides rapid shutdown functionality during emergencies, significantly improving safety.
- Encourages competitive pricing through customer feedback on lower prices.
Cons:
- Requires a Control Box for optimal performance, which may necessitate additional purchases.
- Limited warranty information available without inquiry.
- Must sign in to submit feedback about lower prices, which can be an extra step for some customers.

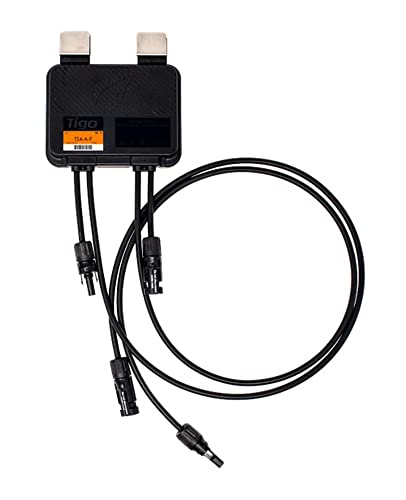

TS4-A-F Fire Safety Module for PV Rapid Shutdown
Tigo TS4-A-F Fire Safety Module-Level PV Rapid Shutdown 20A 700W 1500V UL 0.12m/1.2m Cable MC4, Part...
- Up to 700W per channel
- IEC and UL certified
- Meets US NEC rapid shutdown safety requirements
The TS4-A-F Fire Safety Module is an excellent choice for ensuring rapid shutdown capabilities in photovoltaic (PV) systems. With a maximum input/output of 80V, 15A, and 700W, it effectively manages power in emergencies. This module is certified by IEC and UL, complying with US NEC rapid shutdown safety requirements. It connects easily via standard MC4 connectors and snaps onto the module frame without needing a ground wire. The device also features PLC communication for enhanced monitoring. Plus, it offers a 25-year warranty, providing peace of mind for long-term use in your solar energy setup.
Best For: The TS4-A-F Fire Safety Module is best for solar energy installers and homeowners seeking enhanced safety and rapid shutdown capabilities in photovoltaic systems.
Pros:
- Certified Compliance: Meets IEC and UL standards, ensuring safety and reliability.
- Easy Installation: Utilizes standard MC4 connectors and snaps onto the module frame without the need for a ground wire.
- Long Warranty: Comes with a 25-year warranty, providing long-term assurance for users.
Cons:
- Limited to 700W: May not be suitable for high-capacity PV systems requiring more than 700W per channel.
- Dependent on Compatibility: Requires compatible inverters for optimal performance and communication.
- Installation Costs: There may be additional installation costs associated with integrating the module into existing systems.
Factors to Consider When Choosing a Rapid Shutdown Device
When choosing a rapid shutdown device, you should consider several key factors. First, guarantee it meets safety standards compliance, as this impacts the safety of your entire solar system. Next, evaluate system compatibility, connectivity options, installation requirements, and the warranty and support offered, as these will affect both performance and your long-term investment.
Safety Standards Compliance
Choosing a rapid shutdown device requires careful consideration of safety standards compliance, which is essential for guaranteeing the safety of photovoltaic systems. Look for devices that comply with the National Electric Code (NEC) to guarantee safe operation. Certifications like IEC and UL play a pivotal role in assuring you that a device meets safety benchmarks. Pay special attention to compliance with UL PVRSS standards, as this validates the device’s safety in emergencies for firefighters. Confirm the device offers protection rated above DC 1000V and 55A, which safeguards against high voltage. Additionally, select devices designed with insulated components and weather-resistant ratings like IP65 or IP66, assuring durability even in harsh outdoor conditions.
System Compatibility
For effective integration of a rapid shutdown device in your solar energy system, it’s essential to guarantee compatibility with both the inverter and module types you’re using. First, check that the device adheres to certification standards like IEC and UL, confirming it meets recognized safety requirements. Next, consider the power ratings; verify that the maximum input/output voltage and current capacity match your system’s specifications. Additionally, confirm that the installation and mounting requirements align with your solar module configurations for seamless integration. By verifying these factors, you enhance safety and efficiency, allowing the rapid shutdown device to function effectively within your system. This compatibility guarantees reliable performance, helping you achieve peace of mind while operating your solar energy system.
Connectivity Options
Incorporating a rapid shutdown device into your solar energy system goes beyond just matching components; it also involves understanding the connectivity options available to you. Rapid shutdown devices can offer various connectivity methods, including Ethernet, Wi-Fi, or cellular, allowing flexible integration into your existing system. Make certain the device is compatible with your monitoring platform for enhanced data accessibility and real-time insights. Internet connectivity enables immediate data access for installers, improving monitoring capabilities. Also, consider the communication protocols supported by the device; these guarantee seamless integration. A reliable and secure connection is essential to guarantee timely shutdown operations during emergencies, which directly impacts safety and compliance with regulatory standards. Always prioritize connectivity in your selection process.
Installation Requirements
When selecting a rapid shutdown device, ensuring it meets the installation requirements is essential for your solar energy system’s performance and safety. First, check its compatibility with your photovoltaic (PV) system, including inverters and modules. You may need to follow local electrical codes, which can involve obtaining permits or certifications. Choose a device that’s easy to install, with standard connectors for straightforward assembly. Also, consider the environmental conditions—look for protection ratings like IP65 or IP67 to safeguard against dust and moisture. Finally, verify that the device complies with necessary safety standards, such as UL (Underwriters Laboratories) and IEC (International Electrotechnical Commission) certifications, guaranteeing reliable operation during emergencies.
Warranty and Support
Choosing a rapid shutdown device isn’t just about its features; warranty and support are essential as well. A strong warranty can range from 10 to 25 years, offering vital coverage for your investment. Look for warranties that include provisions for replacement parts or repair services, which enhance the device’s long-term value. It’s also important to take into account the manufacturer’s support options, such as technical assistance and installation guidance. Prompt support can greatly improve your installation and maintenance experience. Be sure to research the manufacturer’s reputation for customer service, as reliability matters. Finally, opt for devices backed by documented certification for their warranties to validate the product’s reliability and performance over time.
Frequently Asked Questions
How Do I Install a Rapid Shutdown Device?
To install a rapid shutdown device, first, verify you’ve shut off the main power supply. Next, mount the device according to the manufacturer’s instructions, which typically involve securing it near your solar inverter. Then, connect the wires; usually, you’ll have five terminals to hook up: positive and negative from the inverter, and the corresponding leads to the solar panels. Finally, test the system to verify it works properly by simulating a shutdown.
What Certifications Should I Look for in These Devices?
When choosing a rapid shutdown device, you should look for essential certifications like UL 1741, which guarantees compliance with safety standards for inverters and converters. You might also consider NEC compliance, particularly Article 690, as it addresses solar safety. These certifications indicate that the device has undergone rigorous testing for reliability and safety. Always verify these certifications to confirm your device meets the necessary standards for effective operation and protection.
Are Rapid Shutdown Devices Mandatory for All Solar Installations?
Yes, rapid shutdown devices are mandatory for most solar installations under the National Electrical Code (NEC) in the United States. Specifically, NEC 690.12 requires these systems for all rooftop solar panels to guarantee safety during emergencies. The rapid shutdown feature allows for quick disconnection of the solar system, reducing electrical hazards for firefighters and first responders. When installing solar panels, you must ascertain compliance with these regulations to ensure safety and legal adherence.
Can Rapid Shutdown Devices Be Retrofitted to Existing Systems?
Yes, you can retrofit rapid shutdown devices to existing solar systems. If your system lacks these safety features, it’s crucial to evaluate an upgrade. Installers typically assess compatibility with your current setup, ensuring the device integrates effectively. For instance, many devices support systems installed before 2014. The process usually involves a straightforward installation, enhancing both safety and compliance with current regulations. Always consult with a qualified installer to discuss your specific needs and options.
What Maintenance Is Required for Rapid Shutdown Devices?
To maintain rapid shutdown devices, you should regularly inspect them every six months. Check for any signs of wear or damage. Ascertain that connections are secure and clean. You’ll need to test the device’s functionality to confirm it activates properly during emergencies. If you notice any issues during inspections, repair or replace components immediately. This proactive approach helps ensure reliable operation and enhances the safety of your overall system.
