10 Best Short Circuit Protection Devices to Keep Your Electronics Safe

To keep your electronics safe from short circuits, consider the VIFLY ShortSaver V2, which disconnects in 3ms, and the MECCANIXITY Miniature Circuit Breakers that handle up to 20A. For drones, the Shortsaver XT60/XT30 offers a buzzer alarm for added safety. The GE Pro Surge Protector provides six outlets and surge protection of 620 Joules. Don’t forget about the Kodobo Auto Fuses for versatile use. Each device has unique features—let’s explore their benefits individually.

Key Takeaways

• VIFLY ShortSaver V2 provides quick disconnection in 3ms for short circuits, ideal for hobbyist electronics with customizable current thresholds.
• MECCANIXITY Miniature Circuit Breakers offer comprehensive protection against overloads, suitable for installations with easy DIN rail mounting.
• Lithium Battery Protection Modules ensure safety for lithium batteries, offering overcharge, over-discharge, and short circuit protections with a MOS transistor.
• RC Drone Shortsaver features a resettable fuse and rapid fault detection, enhancing safety for 2-6S RC drones during operation.
• GE Pro Surge Protector guards electronics against voltage spikes with multiple outlets, despite lacking USB ports for modern charging needs.

VIFLY ShortSaver V2 Smart Smoke Stopper Electronic Fuse

VIFLY ShortSaver V2 Smart Smoke Stopper Electronic Fuse to Detect and Prevent Short-Circuit and...

• VIFLY ShortSaver 2 is electronic fuse that is the most reliable smoke stopper.
• Completely cut off the current flow and prevent “magic smoke”, others only can limit not stop the current.
• Super-fast protection time, turn off the power to a device within 3ms if there is short-circuit or over-current.

View Lastest Price

The VIFLY ShortSaver V2 Smart Smoke Stopper Electronic Fuse is an excellent choice for hobbyists and professionals who often work with small to moderate electrical builds. This electronic fuse effectively detects and prevents short-circuits and overloads. In cases of a short-circuit or over-current, it completely cuts off the current flow within 3 milliseconds, which is faster than many competing products that only limit current. You can easily choose between a 1 Amp or 2 Amp threshold based on your project needs—1A for small, sensitive builds and 2A for larger ones. The included power on-off switch simplifies receiver binding, enhancing overall usability.

Best For: Hobbyists and professionals working with small to moderate electrical builds seeking reliable protection against short-circuits and overloads.

Pros:

• Fast disconnection of current flow within 3ms during short-circuit conditions.
• Offers customizable threshold options (1A and 2A) for various build sizes.
• Comes with a convenient power on-off switch for easier receiver binding.

Cons:

• Limited to XT60 and XT30 connectors may not fit all configurations.
• Some users may prefer a more detailed user manual for installation guidance.
• The switch may require careful handling to avoid accidental power interruption.

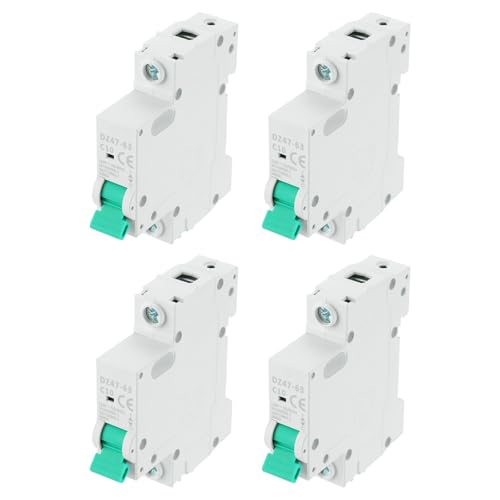

MECCANIXITY Miniature Circuit Breaker 1P 10A AC 110V (4 Pcs)

MECCANIXITY 4Pcs Miniature Circuit Breaker 1P 10A AC 110V DZ47-63 DIN Rail Mount Disconnect Switch...

• Miniature circuit breakers are mainly used in electrical systems in residential, commercial, office and industrial buildings to protect circuits from overloads and short...
• Model: DZ47-63;Rated Current: 10A ; Rated Voltage: AC 110V ; Circuit breaker configuration: 1 Pole ; Breaking capacity: 6000A;Handle color: green;
• Miniature circuit breakers can disconnect within seconds when a short circuit occurs, blocking danger and preventing short circuit hazards and line overload. It can...

View Lastest Price

If you’re looking for a reliable way to safeguard your electrical systems, the MECCANIXITY Miniature Circuit Breaker 1P 10A AC 110V is an excellent choice. This device is designed to protect against overloads and short circuits, ensuring your systems remain safe. Rated for 10 amps and capable of handling up to 6000A breaking capacity, it disconnects in seconds during faults. Its operational range of -25°C to +70°C means it works well even in harsh conditions. You can easily install it on a 35mm DIN rail, and its larger wiring ports simplify the setup process, enhancing your overall electrical safety.

Best For: Homeowners and businesses looking for reliable protection for their electrical systems against overloads and short circuits.

Pros:

• Easy installation on standard 35mm DIN rails for convenient mounting.
• High breaking capacity of 6000A ensures quick disconnection during faults, enhancing safety.
• Operates effectively in a wide temperature range (-25°C to +70°C), making it suitable for various environments.

Cons:

• Limited to a rated current of 10A, which may not be sufficient for high-power applications.
• Only suitable for AC 110V, restricting its use in areas with different voltage requirements.
• Requires correct installation and wiring to ensure effective protection, which may necessitate professional help.

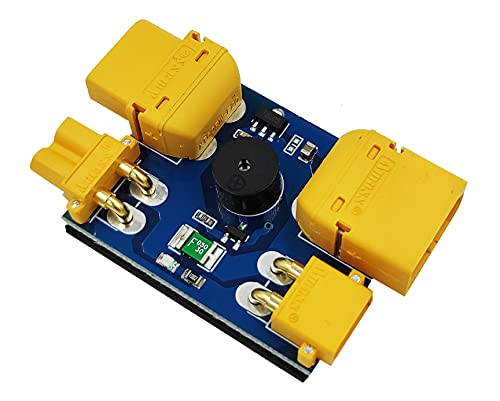

Shortsaver XT60/XT30 Smoke Stopper with Buzzer Alarm for RC Drones

HobbyFly Shortsaver XT60/XT30 Smoke Stopper with Buzzer Alarm,Short-Circuit Fuse Protection Overload...

• A self-healing / resettable fuse in line of the power going to your quad.
• The Smoke Stopper offers much lower trip and hold currents, as well as faster reaction time.
• AMASS XT30 & XT60 (Input and Output),suit for FPV drone with XT30 or XT60 connector.

View Lastest Price

For RC drone enthusiasts seeking reliable protection against electrical mishaps, the Shortsaver XT60/XT30 Smoke Stopper stands out as an essential accessory. Designed for 2-6S RC Quad FPV racing drones, it connects easily with AMASS XT30 and XT60 connectors. This device features a self-healing resettable fuse that protects against overloads and short circuits, ensuring safety during flight. With lower trip currents and rapid response times, it reacts quickly to faults. The LED indicator shines green under normal conditions and beeps when an issue occurs. To install, simply plug the Smoke Inhibitor between your battery and drone device for enhanced protection.

Best For: RC drone enthusiasts looking for reliable safety features and protection from electrical issues during flight.

Pros:

• Features a self-healing/resettable fuse, providing continuous protection against overloads and short circuits.
• Rapid response times with lower trip currents enhance safety during operation.
• Easy to install by simply plugging in between the battery and drone device, ensuring seamless integration.

Cons:

• May not be suitable for drones that do not utilize XT30 or XT60 connectors.
• The beeping alarm during malfunctions may be disruptive in quiet environments.
• Limited to use with 2-6S RC quad FPV racing drones, not compatible with other types of drones.

GE Pro 6-Outlet Surge Protector with 2 Ft Extension Cord

GE Pro 6-Outlet Surge Protector, 2 Ft Extension Cord, 620 Joules, Power Strip, Flat Plug, Integrated...

• Expanded Power – Featuring a white finish and six grounded AC outlets, the surge protector provides power from a distance and creates a centralized hub for your...
• Versatile Cord – 2ft. power cord comprised of heavy-duty cable housed in a durable PVC insulation and jacket with a space-saving flat plug is strong enough to last a...
• Protection – A surge protection rating of 620 Joules, integrated circuit breaker with reset switch and automatic shutdown technology offer the ultimate protection from...

View Lastest Price

Looking for a reliable solution to protect your electronics? The GE Pro 6-Outlet Surge Protector with a 2 Ft Extension Cord offers robust protection with six grounded AC outlets, expanding your power options. It features a surge protection rating of 620 Joules, guarding against voltage spikes. With an integrated reset switch and automatic shutdown technology, your devices remain safe from overloads. The flat plug design saves space, while keyhole slots allow easy mounting on various surfaces, such as desks or counters. As a UL Listed device, trust in GE’s reputation for safety and reliability to keep your electronics secure.

Best For: Individuals seeking a reliable surge protector to safeguard their electronics in home, office, or workshop environments.

Pros:

• Expanded Power Options: Provides six grounded AC outlets for multiple devices.
• Safety Features: Includes surge protection, an integrated circuit breaker, and automatic shutdown technology.
• Space-Saving Design: Flat plug and keyhole slots for easy mounting help save space and improve accessibility.

Cons:

• Short Cord Length: The 2 ft extension cord may limit placement options for some users.
• Limited Outlets: Six outlets may not be sufficient for users with numerous devices.
• No USB Ports: Lacks built-in USB charging ports for modern electronics.

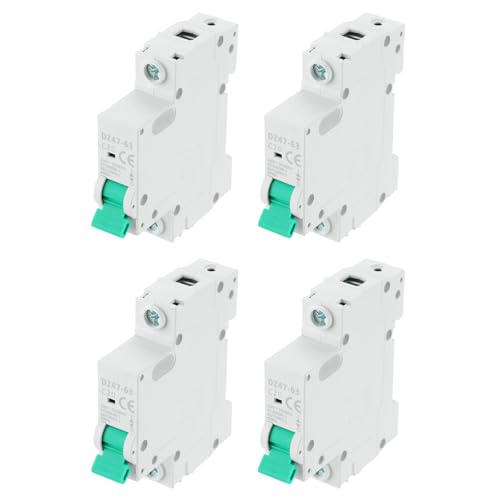

MECCANIXITY Miniature Circuit Breaker 1P 20A AC 110V (4 Pcs)

MECCANIXITY 4Pcs Miniature Circuit Breaker 1P 20A AC 110V DZ47-63 DIN Rail Mount Disconnect Switch...

• Miniature circuit breakers are mainly used in electrical systems in residential, commercial, office and industrial buildings to protect circuits from overloads and short...
• Model: DZ47-63;Rated Current: 20A ; Rated Voltage: AC 110V ; Circuit breaker configuration: 1 Pole ; Breaking capacity: 6000A;Handle color: green;
• Miniature circuit breakers can disconnect within seconds when a short circuit occurs, blocking danger and preventing short circuit hazards and line overload. It can...

View Lastest Price

The MECCANIXITY Miniature Circuit Breaker 1P 20A AC 110V is an essential device for anyone responsible for maintaining electrical safety in residential and commercial buildings. This circuit breaker can handle a rated current of 20A at 110V, ensuring your circuits are protected from overloads and short circuits. With a breaking capacity of 6000A, it disconnects swiftly during a fault, preventing potential hazards. Easy to install on a 35mm DIN rail, it features a green handle for straightforward operation. Reliable in extreme temperatures, ranging from -25°C to +70°C, it’s ideal for various environments, making it a versatile choice for electrical panels.

Best For: The MECCANIXITY Miniature Circuit Breaker 1P 20A AC 110V is best for electricians and contractors seeking reliable circuit protection in residential and commercial electrical systems.

Pros:

• Quick disconnection during overloads and short circuits, enhancing safety.
• Easy installation on 35mm DIN rail with improved wiring ports.
• Operates effectively in extreme temperatures, ensuring reliability in various environments.

Cons:

• Limited to a specific voltage and current rating (AC 110V, 20A).
• Requires careful installation and proper wiring for optimal performance.
• May not be suitable for high-capacity industrial applications due to lower amperage rating.

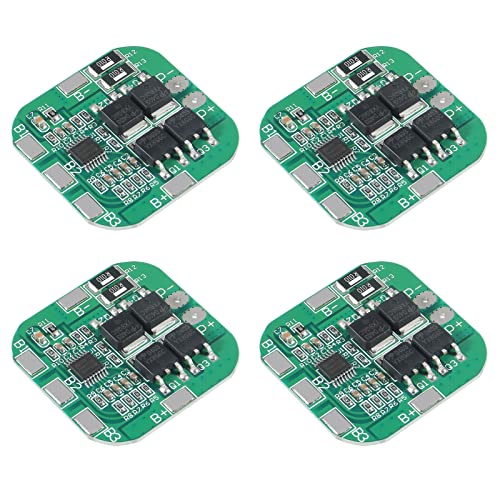

4Pcs Lithium Battery Protection Board Charger Module

4Pcs 4S 14.8V/16.8V BMS 18 650 Lith ium Battery Protection Board Charger Protection Module with...

• Compact size and lightweight, fine workmanship and durable, can be applied to various 3.7V lithium core, ensure the security of battery pack.
• With short circuit protection, MOS transistor can control the battery charge and discharge; low standby current consumption.
• Over Charge Voltage:4.25-4.35v±0.05v; Over Discharge Voltage: 2.3-3.0v±0.05v; Max working current:10A; Max Peak current:20A

View Lastest Price

When safety and reliability in lithium battery management matter, the 4Pcs Lithium Battery Protection Board Charger Module stands out as an ideal solution. This module is designed for 3.7V lithium cores, ensuring battery pack security with features like overcharge and over-discharge protection. It operates with voltages from 2.3V to 4.35V, with a maximum working current of 10A and peak current of 20A. Short circuit protection is included, controlled by a MOS transistor that minimizes standby current. Be aware, though; it’s unsuitable for devices that exceed a 3A discharge rate, limiting its application to low-power electronics only.

Best For: Users seeking reliable protection for their 3.7V lithium battery packs in low-power electronics applications.

Pros:

• Enhanced Safety: Features overcharge, over-discharge, and short circuit protection to ensure battery longevity and safety.
• Efficient Design: Low standby current consumption with MOS transistor control allows for minimal energy waste.
• Versatile Application: Suitable for a range of devices that operate within the specified discharge rates, improving overall functionality.

Cons:

• Limited Current Capacity: Not suitable for high-power tools and devices exceeding a 3A discharge rate, restricting its use.
• Specific Voltage Range: Only designed for 3.7V lithium cores, limiting compatibility with other battery types.
• Potential Underperformance: Users with higher discharge rate needs (above 3C) may find this module inadequate for their applications.

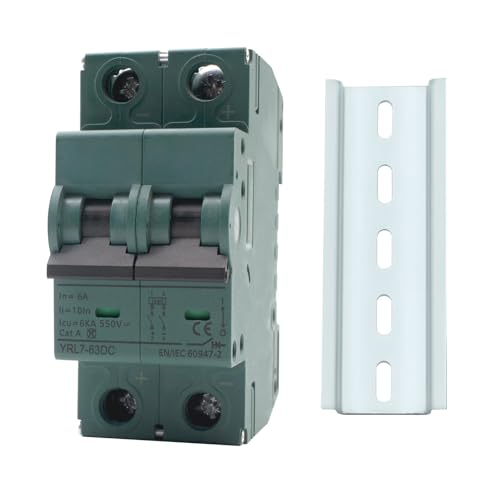

6A DC Circuit Breaker | 500V 2-Pole Solar Disconnect Switch

AIRTAK 6A DC Circuit Breaker 500V 2-Pole – Complete Kit with DIN Rail & Screws, Solar Disconnect...

• [Package content]: Includes 6A 500V 2-pole breaker, 35mm DIN rail, and 2 mounting screws. No hunting for extra parts — install in minutes
• [Product function]:Designed for reliable circuit protection, this fire-resistant miniature breaker provides overload and short-circuit protection while enabling safe...
• [Respond promptly]:This PV disconnect switch features an instant trip mechanism for immediate short-circuit protection, with a flame-retardant shell for enhanced safety...

View Lastest Price

A 6A DC Circuit Breaker with a 500V rating serves as an ideal solar disconnect switch for homeowners and professionals involved in solar panel installations or off-grid energy systems. This 2-pole device mounts easily on a DIN rail, making installation straightforward. It protects against overloads and short circuits, ensuring your system remains safe during operation. The instant trip mechanism activates immediately in a fault, limiting potential damage. With a flame-retardant shell and enhanced arc suppression technology, it caters to environments demanding durability. You can confidently use this breaker in solar PV systems, marine setups, or DC power distributions, securing your energy investments.

Best For: Homeowners and professionals looking for reliable overload and short-circuit protection in solar panel installations or off-grid energy systems.

Pros:

• Compact design allows for easy installation on a DIN rail.
• Instant trip mechanism provides immediate protection against faults.
• Flame-retardant and durable construction ensures safety in demanding conditions.

Cons:

• Limited to a maximum current of 6A, which may not suffice for larger systems.
• Requires a 35mm DIN rail for installation, which may involve additional setup.
• Specific to DC applications, limiting its use in AC systems.

1Pack Smoke Stopper for FPV Drone Safety Inspecting

Ransanx 1Pack Smoke Stopper for FPV Drone Short-Circuit Protection Switch XT30/ XT60 Connector with...

• Anti-short circuit protector: Input voltage: 7-25V, when you turn on the power of the 2-6s FPV drone, this smoke plug can help avoid damage; before the drone takes off...
• Instructions for use: The battery is connected to the aircraft through an anti-short circuit plug. If there is no short circuit, the green LED light will always be on if...
• Specifications: XT60 or XT30 Input: Only one battery can be inserted into the two sockets at the same time, and it is forbidden for the two sockets to be connected to...

View Lastest Price

For FPV drone enthusiasts seeking enhanced safety during pre-flight inspections, the Pack Smoke Stopper is an essential tool. This device acts as an anti-short circuit protector, with a voltage range of 7-25V, perfect for 2-6S RC quad FPV drones. To use it, connect your battery to the aircraft via the anti-short circuit plug. A green LED signals everything’s fine, while an alarm sounds if there’s a problem. Remember, only one battery should connect at a time, and the maximum output current is 1A. For support, reach out to customer service to guarantee ideal operation and safety.

Best For: FPV drone enthusiasts looking for a reliable safety tool to prevent short circuits during pre-flight inspections.

Pros:

• Acts as a reliable anti-short circuit protector, enhancing safety during drone operations.
• Easy to use with clear LED indicators and alarm system for quick issue detection.
• Compatible with popular XT30 and XT60 connectors, suitable for a wide range of drones.

Cons:

• Limited to a maximum output current of 1A, which may not be sufficient for all applications.
• Only allows for the connection of one battery at a time, which may be inconvenient for some users.
• Input voltage range is restricted to 2-6S, limiting compatibility with higher voltage setups.

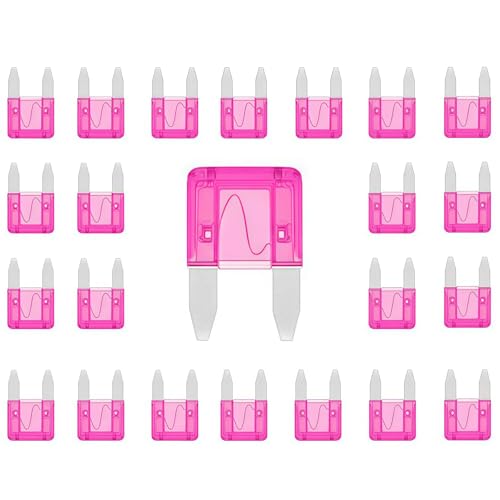

Kodobo 100 Pack Mini Blade Style Auto Fuses (3 AMP)

Kodobo 100 Pack Auto Fuses 3 AMP APM/ATM 32V Mini Blade Style Fuses 35A Short Circuit Protection Car...

• 100% BRAND NEW AND HIGH QUALITY - Designed to fit regular ATM/APM fuse holders.
• DURABLE - Terminals are constructed from tin-plated zinc for corrosion resistance and enhanced conductivity. Kodobo fuses made of premium materials, fast and precise...
• WIDELY USE - These assorted fuses are specifically designed for Cars, Trucks, SUVs, ATVs, UTVs, Camper RV, Motorcycles, Fleet, Golf Car, Boat, snowmobiles, and most...

View Lastest Price

Kodobo 100 Pack Mini Blade Style Auto Fuses (3 AMP) serve as an ideal choice for vehicle owners and enthusiasts seeking reliable short circuit protection. These 32V mini blade fuses fit standard ATM/APM fuse holders, ensuring compatibility with various vehicles. Made from tin-plated zinc, their terminals resist corrosion and enhance conductivity for effective performance. You can use these fuses in cars, trucks, RVs, and motorcycles, covering essential components like radios, lights, and signals. The transparent housing allows you to quickly check fuse status. Plus, with a 100% satisfaction guarantee, you can trust their quality and customer support.

Best For: Vehicle owners and enthusiasts who need reliable short circuit protection for various automotive and electrical applications.

Pros:

• High-quality tin-plated zinc terminals offer enhanced conductivity and corrosion resistance.
• Transparent housing allows for easy visibility of fuse status, simplifying maintenance.
• Compatible with a wide range of vehicles, making them versatile for different automotive needs.

Cons:

• Limited to 3 AMP, which may not be sufficient for certain high-power components.
• Bulk packaging may not be ideal for casual users who only need a few fuses.
• Some users may prefer alternative brands with different features or specifications.

Blue Sea Systems Short Stop Circuit Breakers 10 Amp – 50 Amp

Blue Sea Systems 7157 Marine Grade Short Stop Circuit Breaker - 50A

• Amperage: 50a DC, max voltage: 28V DC, interrupt capacity: 2500a at 28V DC
• Push-to-reset Operation only disconnects when tripped
• Ip64 water resistant boot protects against dust and splashing water

View Lastest Price

The Blue Sea Systems Short Stop Circuit Breakers, ranging from 10 Amp to 50 Amp, are an excellent choice for ensuring safety in marine and automotive electrical systems. These breakers operate with a push-to-reset function, only disconnecting when tripped, making them convenient during overload situations. With a maximum voltage of 28V DC and an impressive interrupt capacity of 2500A, they effectively protect your circuits. The IP64 water-resistant boot safeguards against dust and splashes, enhancing durability. Corrosion-resistant materials also help them endure harsh environments. You’ll find a red insulating boot included, ensuring your connections stay protected and secure.

Best For: The Blue Sea Systems Short Stop Circuit Breakers are best for boat owners and automotive enthusiasts looking for reliable circuit protection in challenging environments.

Pros:

• Push-to-reset operation simplifies management during overload situations, allowing for easy restoration of power.
• IP64 water-resistant boot provides protection against dust and splashes, ensuring durability in marine conditions.
• Constructed from corrosion-resistant materials, making them ideal for use in harsh environments.

Cons:

• Limited to a maximum voltage of 28V DC, which may not be suitable for higher voltage applications.
• Available amperage range (10 Amp to 50 Amp) may not meet the needs of all users, especially for those requiring higher amperage options.
• The requirement of manual reset may be inconvenient in some situations where automatic disconnection is preferred.

Factors to Consider When Choosing Short Circuit Protection

When choosing the right short circuit protection device, you need to take into account several critical factors. Efficiency in the protection mechanism guarantees that your device responds quickly during an overload, while selecting the appropriate current rating, such as 10 or 50 amps, matches the specifications of your electrical system. Additionally, take into account installation compatibility, environmental conditions, and safety features, including alerts that notify you of potential issues, to guarantee reliable performance in your application.

Protection Mechanism Efficiency

Choosing the right short circuit protection device is essential for maintaining electrical safety and efficiency. The efficiency of these devices often hinges on their response time; many can cut off power in milliseconds to prevent damage. Simple fuses limit current, while advanced electronic fuses completely disconnect power during faults, enhancing safety. You must match the rated current of the protection device to your circuit, with options like 1A or 20A ratings available. Look for features like self-healing capabilities, which allow fuses to reset quickly after a fault without replacement. Finally, verify the protection device is compatible with the voltage and current specifications of your circuit, confirming it operates effectively within the intended parameters for peak performance.

Current Rating Selection

Selecting the right current rating for short circuit protection is crucial, as it guarantees safety and efficiency in your electrical system. First, confirm the current rating matches or exceeds the maximum expected load of your device. For instance, if your device draws 10 amps, choose a fuse rated for at least 15 amps to prevent nuisance tripping. Consider the application type; residential systems might need different ratings than industrial ones. If your devices operate under varying loads, a threshold selector feature could help by adjusting limits based on usage. Finally, always check that your rating meets relevant safety regulations. This alignment reduces risks of overloads and short circuits, keeping your equipment and home safe.

Installation and Compatibility

Proper installation and compatibility of short circuit protection devices can greatly impact the safety and efficacy of your electrical system. Start by verifying the device matches your specific connectors and voltage requirements; for example, use XT60 or XT30 connectors for drones. Additionally, check that the installation method fits your existing setups, like mounting circuit breakers onto a DIN rail. Consider the device’s physical dimensions to confirm it can be accommodated within your electrical panel. Verify wiring ports are adequately sized for the gauge of wire you’re using, which aids in a secure installation. Finally, review the operational temperature range of the device to guarantee reliable performance in your unique environment. These steps enhance both safety and functionality.

Environmental Operating Conditions

When it comes to short circuit protection devices, understanding environmental operating conditions is essential to guaranteeing reliability and safety. These devices should function reliably across a wide temperature range, typically from -25°C to +70°C. Materials must be corrosion-resistant, especially if exposed to moisture or salt air, which can impair performance. Some devices come with flame-retardant shells, enhancing safety in demanding environments. Additionally, look for water and dust resistance ratings, like IP64, which indicate how well the device guards against contaminants. If you’re dealing with outdoor applications, especially solar panel installations, choose devices specifically designed for UV exposure and extreme weather. Consider these factors to guarantee peak protection for your electronics in any environment.

Safety Features and Alerts

To guarantee your short circuit protection devices offer the best safeguarding capabilities, prioritize the inclusion of various safety features and alerts. Look for devices with rapid reaction times, ideally disconnecting power within milliseconds to stop potential damage. Visual and audible alarms, such as LED indicators and buzzer alerts, greatly enhance your awareness of malfunctions during operation.

Consider resettable fuses that enable self-recovery after disconnection, which means you won’t need to replace them physically. Integrated circuit breakers are essential, as they automatically shut down circuits during overloads, preventing dangerous sparks and fires. Finally, choose devices made from durable materials, like flame-retardant casings, ensuring long-term reliability and safety in various environments.

Frequently Asked Questions

How Do I Know What Rating Circuit Breaker to Use?

To choose the right circuit breaker rating, you need to evaluate the total amperage of your electrical circuits, which should be calculated by adding up the amperage of all devices connected. For example, if devices total 20 amps, a 20-amp breaker is recommended. Ascertain you’re also aware of the wire gauge, as a mismatch could lead to overheating. Generally, a breaker should match or slightly exceed the total device amperage.

Can Short Circuit Protection Devices Be Reused After Activation?

Yes, many short circuit protection devices can be reused after they activate, but it depends on the device type. Circuit breakers typically reset easily; you just flip the switch back after resolving the issue. Fuses, however, need replacement once blown, as they cannot be reused. Always check the manufacturer’s guidelines for specific devices, as they provide important information on reuse and safety. Understanding this helps guarantee your electronics stay protected effectively.

What Are Signs of a Malfunctioning Short Circuit Protection Device?

A malfunctioning short circuit protection device often shows clear signs. You might notice frequent tripping of the circuit breaker, unusual heat around the device, or burning smells. Additionally, you may see visual damage like discoloration or cracks. If the device fails to reset or operates inconsistently, those are red flags too. Keep an eye on these indicators, as they can help you maintain safety and functionality in your electronics.

Are There Maintenance Tips for Circuit Protection Devices?

To maintain circuit protection devices, regularly inspect them for signs of wear or damage. Check connections for corrosion or looseness, making sure they’re tight and clean. Test the device monthly using a multimeter to confirm it operates correctly; the reading should match the specified voltage. Replace any faulty devices promptly. Consider a yearly professional evaluation to prevent failures and guarantee peak performance, helping prevent damage to your valuable electronics and maintaining safety.

What Distinguishes Fuses From Circuit Breakers in Short Circuit Protection?

Fuses and circuit breakers both protect circuits, but they work differently. A fuse contains a metal wire that melts when the current exceeds a safe level, interrupting the flow. In contrast, a circuit breaker is a switch that automatically trips to cut power when it detects excess current. For example, a fuse may handle 10 amps, while a circuit breaker can reset and handle multiple overloads. Understanding these differences helps you choose the right protection for your devices.
