10 Best Solar AC Disconnects for Safe and Efficient Installations

When selecting solar AC disconnects, consider options like the 30A Solar Panel Disconnect Switch and the robust 63A Solar Shut Off Switch. Look for models with ratings exceeding your system’s maximum output, like the 400V DC/AC disconnects. Confirm they offer essential protection features such as overvoltage and overload safeguards. Also, choose ones with easy installation features, including pre-drilled holes and weather-resistance. To optimize your solar system’s performance, explore the best products on the market.

Key Takeaways

• Look for solar AC disconnects with IP65/IP66 ratings to ensure protection against water and dust for outdoor installations.
• Choose models with robust overvoltage and overload protection features to safeguard against electrical hazards.
• Ensure compatibility with your system’s voltage and ampacity to prevent overheating and potential system failure.
• Select disconnects designed for easy installation, featuring pre-drilled holes and included connectors for a streamlined setup.
• Consider the specific application, whether for residential, RV, or off-grid use, to find the best-suited disconnect model.

Chtaixi DC Miniature Circuit Breaker for Solar PV System

CHTAIXI DC Miniature Circuit Breaker, 2 Pole 1000V 63 Amp

• FUNCTIONS: Used to protect power distribution facilities from overload and short-circuit damage, and can also be used for control and isolation.
• FAST TRIP: The electromagnetic trip system can trip immediately when the circuit is short-circuited to protect the safety of the circuit.
• ARC EXTINGUISHING: DC arc extinguishing is more difficult than AC. This DC mini circuit breaker has a magnetic system to assist arc extinguishing.

View Lastest Price

If you’re looking for a reliable and efficient solution for disconnecting solar power systems, the Chtaixi DC Miniature Circuit Breaker is an excellent choice. This 2-pole device operates at 1000V and can handle a 63 Amp load, making it suitable for solar photovoltaic systems. Its fast trip mechanism uses an electromagnetic system, ensuring immediate response to short-circuits. With integrated magnetic assistance for arc extinguishing, it’s optimized for DC applications. Installation is simple, as it mounts easily onto 35mm DIN rails using screw clamp wire connections. By incorporating this breaker, you enhance the safety and reliability of your solar power setup.

Best For: The Chtaixi DC Miniature Circuit Breaker is best for users looking to enhance safety and reliability in solar photovoltaic systems.

Pros:

• Fast trip mechanism ensures immediate response to short-circuits for enhanced protection.
• Optimized for DC applications, making it ideal for solar power systems.
• Easy installation on 35mm DIN rails using screw clamp wire connections.

Cons:

• Limited to a maximum load of 63 Amps, which may not suit larger systems.
• Requires specific installation on DIN rails, which may not be compatible with all setups.
• Installation may require some technical knowledge for optimal performance.

30A Solar Panel Disconnect Switch for Solar PV Homes

Pjerjzn 30A Solar Panel Disconnect Switch 400V DC/AC PV Disconnect Switch Outdoor Miniature Circuit...

• 𝐏𝐫𝐞𝐦𝐢𝐮𝐦 𝐐𝐮𝐚𝐥𝐢𝐭𝐲: .Pjerjzn solar panel disconnector switch are newly upgraded with connectors that do not differentiate between...
• 𝐏𝐫𝐨𝐭𝐞𝐜𝐭𝐢𝐨𝐧 𝐅𝐮𝐧𝐜𝐭𝐢𝐨𝐧: Solar disconnector switch has over voltage, overload and lightning protection functions, and...
• 𝐄𝐚𝐬𝐲 𝐈𝐧𝐬𝐭𝐚𝐥𝐥𝐚𝐭𝐢𝐨𝐧: Solar dc disconnect, installed between solar panel and solar inverter, can realize faster and safer...

View Lastest Price

A 30A Solar Panel Disconnect Switch is an essential component for any solar photovoltaic (PV) system in residential homes. It operates with a voltage of up to 400V DC/AC, ensuring it’s suitable for both grid-connected and off-grid solar systems. This switch acts as a safety device, positioned between your solar panels and inverter, allowing for easy power disconnection during maintenance. Its IP65 rating means it’s waterproof, making it ideal for outdoor use. Notable features include upgraded connectors for quick installation, built-in protection against over voltage and overload, and a transparent cover for monitoring operational status.

Best For: Homeowners with solar photovoltaic systems looking for a reliable and safety-oriented disconnect switch.

Pros:

• User-friendly design with upgraded connectors allows for quick and easy installation without the need to differentiate between male and female connectors.
• Robust protection features such as over voltage, overload, and lightning protection help extend the lifespan of the solar system.
• IP65 waterproof rating ensures functionality and durability in outdoor environments, making it suitable for various applications including RVs.

Cons:

• May not be compatible with solar systems exceeding 30A, limiting its use for larger installations.
• Requires basic electrical knowledge for proper installation and connectivity, which may deter some users.
• The transparent cover, while useful for monitoring operational status, could be a potential point of vulnerability if exposed to extreme conditions over time.

AC Miniature Circuit Breaker, 40 Amp 120V/240V

Chtaixi AC Miniature Circuit Breaker, 40 Amp 120V/240V 2 Pole

• FUNCTIONS: Used to protect 110V 120V 220V 230V AC circuit from overload and short circuit damage, and can also be used for control and isolation.
• CURVE C: Magnetic trip range 5-10 times rated current.
• QUALITY: Silver alloy contacts, flame retardant material shell, color indicator.

View Lastest Price

The AC Miniature Circuit Breaker, rated at 40 Amps and designed for 120V/240V systems, stands out as an essential choice for homeowners and solar panel enthusiasts. This two-pole device mounts easily on a 35mm DIN rail and features a thermal magnetic trip to protect your circuits. It safeguards your AC systems from overload and short circuits, guaranteeing safety and reliability. With a magnetic trip range of 5-10 times the rated current, it effectively responds to fault conditions. Use it in solar installations, RVs, or standard home circuits, ensuring seamless operation and peace of mind in your electrical setup.

Best For: Homeowners, solar panel enthusiasts, and RV owners seeking reliable overload and short circuit protection for their AC systems.

Pros:

• Provides robust protection against overload and short circuit damage, ensuring safety for connected devices.
• Features a thermal magnetic trip mechanism for reliable fault detection and response.
• Easy installation on a 35mm DIN rail simplifies setup in various applications.

Cons:

• Limited to 40 Amps, which may not be sufficient for higher-demand systems.
• Requires specific DIN rail installation, which may not be compatible with all existing setups.
• Primarily designed for AC applications, so it is not suitable for DC circuit protection.

AC Miniature Circuit Breaker, 20 Amp 120V/240V 1 Pole DIN Rail Mount

Chtaixi AC Miniature Circuit Breaker, 20 Amp 120V/240V 1 Pole

• FUNCTIONS: Used to protect 110V 120V 220V 230V AC circuit from overload and short circuit damage, and can also be used for control and isolation.
• CURVE C: Magnetic trip range 5-10 times rated current.
• QUALITY: Silver alloy contacts, flame retardant material shell, color indicator.

View Lastest Price

For those seeking a reliable solution to protect their solar AC systems, the AC Miniature Circuit Breaker, rated at 20 Amps and designed for 120V/240V applications, stands out. This one-pole breaker is specifically intended for DIN rail mounting, making installation straightforward. It safeguards 110V, 120V, 220V, and 230V AC circuits from overloads and short circuits. You’ll appreciate its magnetic trip range, which activates at 5-10 times the rated current. Made with silver alloy contacts in a flame-retardant shell, it guarantees durability and safety. Its screw clamp helps secure wiring, making it suitable for RVs, homes, and other compatible systems.

Best For: This product is best for homeowners, RV owners, and solar system users seeking to protect their AC circuits from overloads and short circuits.

Pros:

• Easy installation on 35mm DIN rail thanks to its design.
• Durable construction with silver alloy contacts and flame-retardant material.
• Provides effective protection across various AC voltage levels (110V to 240V).

Cons:

• Limited to one pole, which may not be sufficient for larger systems requiring multiple breakers.
• May not be compatible with all types of AC systems, particularly specialized or unique setups.
• Requires knowledge of electrical installation for proper wiring and setup.

AC Miniature Circuit Breaker, 50 Amp 120V/240V 2 Pole DIN Rail Mount

Chtaixi AC Miniature Circuit Breaker, 50 Amp 120V/240V 2 Pole

• FUNCTIONS: Used to protect 110V 120V 220V 230V AC circuit from overload and short circuit damage, and can also be used for control and isolation.
• CURVE C: Magnetic trip range 5-10 times rated current.
• QUALITY: Silver alloy contacts, flame retardant material shell, color indicator.

View Lastest Price

Choose the AC Miniature Circuit Breaker with a 50 Amp rating to guarantee robust protection for your solar AC systems. This 2-pole breaker operates on 120V or 240V circuits, ensuring compatibility with various solar setups. Utilizing a thermal magnetic trip, it safeguards against overload and short circuits, effectively preventing damage. Designed for DIN rail mounting, it simplifies installation with screw clamp wires. The magnetic trip activates quickly within a range of 5-10 times the rated current, offering reliable performance. With flame retardant materials and silver alloy contacts, this breaker is built for durability and efficiency in both home circuits and RV applications.

Best For: This product is best for homeowners and RV enthusiasts looking for reliable protection and control of their solar AC systems.

Pros:

• Effective Protection: Safeguards against overloads and short circuits, preventing potential damage to your circuits.
• Easy Installation: Designed for DIN rail mounting with screw clamp wires, simplifying the setup process.
• Durable Construction: Made with flame retardant materials and silver alloy contacts for enhanced longevity and reliability.

Cons:

• Limited to Specific Voltages: Only compatible with 120V and 240V circuits, which may not suit all setups.
• Rated Current Capacity: At 50 Amps, it may not be sufficient for larger systems requiring higher current ratings.
• Requires Professional Installation: Users may need a qualified electrician for proper installation and compliance with local codes.

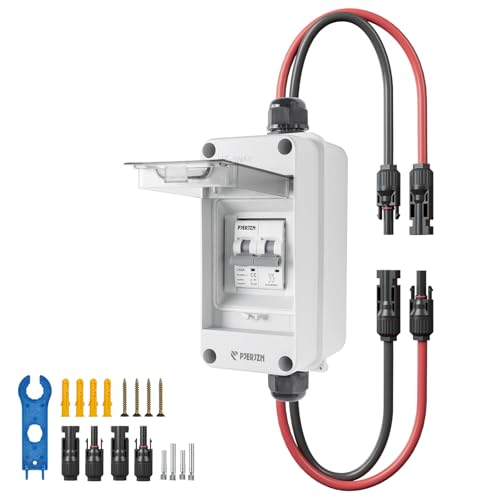

Solar Panel Disconnect Switch 1000V DC/AC 60A

Pjerjzn Solar Panel Disconnect Switch 1000V DC/AC 60A PV Disconnect Switch Outdoor Miniature Circuit...

• 𝐏𝐫𝐞𝐦𝐢𝐮𝐦 𝐐𝐮𝐚𝐥𝐢𝐭𝐲: .Pjerjzn solar panel disconnector switch are newly upgraded with connectors that do not differentiate between...
• 𝐏𝐫𝐨𝐭𝐞𝐜𝐭𝐢𝐨𝐧 𝐅𝐮𝐧𝐜𝐭𝐢𝐨𝐧: Solar disconnector switch has over voltage, overload and lightning protection functions, and...
• 𝐄𝐚𝐬𝐲 𝐈𝐧𝐬𝐭𝐚𝐥𝐥𝐚𝐭𝐢𝐨𝐧: Solar dc disconnect, installed between solar panel and solar inverter, can realize faster and safer...

View Lastest Price

When considering solar panel installations, the Solar Panel Disconnect Switch rated for 1000V DC/AC and 60A stands out as an essential component for both residential and recreational applications. This switch is designed for outdoor use, featuring an IP65 waterproof and dustproof rating. It’s made with durable materials like thickened purple copper coil and enhanced connectors, allowing easy connections for both male and female wires. Protect your system with built-in overvoltage and overload safeguards. Installation is straightforward due to pre-drilled holes and included connectors. It’s compatible with photovoltaic grid-connected and off-grid systems, meeting the needs of homes, RVs, and more.

Best For: This product is best for homeowners and RV enthusiasts looking for a reliable disconnect switch to enhance the safety and efficiency of their solar energy systems.

Pros:

• IP65 rated: Ensures protection against water and dust for outdoor installations.
• Easy installation: Features pre-drilled holes and waterproof connectors for quick assembly.
• Safety features: Includes overvoltage and overload protection for added reliability.

Cons:

• Rated only up to 60A: May not suffice for larger solar systems requiring higher amperage.
• Outdoor use only: Not suitable for indoor installations, limiting usage options.
• Requires technical knowledge: Installation may require some electrical expertise for optimal performance.

40Amp AC Isolator Solar Switch

Sale

40Amp Disconnect Switch Box Outdoor, AC 690V Isolator Switch 4 Pole, IP66 Waterproof Isolation PV...

• 【40 Amp AC Disconnect Box Outdoor】Ui: 40 Amp, 690V AC, 4 Poles. PV AC panel disconnect switch, UKCA Listed, CE TUV and RoHS Listed
• 【WIDE APPLICATION】 40A Isolation switch is widely used in machinery and various electrical appliances, and can effectively solve the problems of emergency...
• 【Protection Grade】 IP66 waterproof disconnect switch box for indoor/outdoor use offering a level of protection from corrosion, windblown dust and rain, splashing...

View Lastest Price

The 40 Amp AC Isolator Solar Switch stands out as an essential component for those who need reliable and efficient control of electrical systems. This switch features a four-pole design with two positions, making it versatile for various situations. With an IP66 waterproof rating, it protects against dust, rain, and hose-directed water, ensuring longevity in harsh environments. It can handle a load-breaking capacity of up to ten times the rated current, providing excellent performance. Ideal for machinery, emergency disconnections, and battery cutoff isolators, this switch comes with components like screws and cable connectors to facilitate installation.

Best For: Those seeking a durable and versatile isolator switch for managing electrical systems in both indoor and outdoor settings.

Pros:

• IP66 waterproof rating ensures protection against water, dust, and corrosion.
• Load-breaking capacity of up to 10 times rated current provides reliable performance in demanding applications.
• Includes installation components like screws and connectors, making setup straightforward.

Cons:

• Four-pole design may be more complex for simple applications that require fewer poles.
• May require professional installation for optimal safety and functionality, especially in high-capacity systems.
• Relatively larger size compared to standard switches could be a limitation in tight spaces.

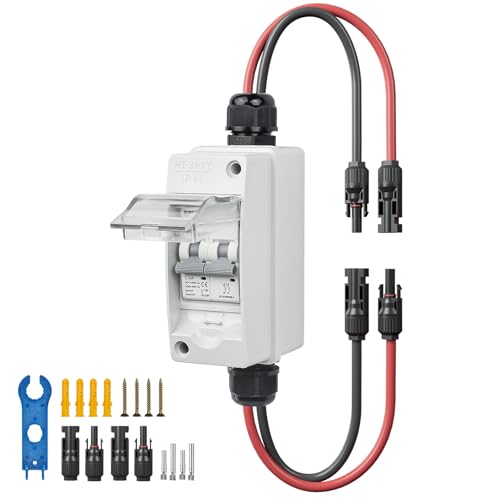

Solar Panel Disconnect Switch 400V DC/AC 10A

Pjerjzn Solar Panel Disconnect Switch 400V DC/AC 10A PV Disconnect Switch Outdoor Miniature Circuit...

• 𝐏𝐫𝐞𝐦𝐢𝐮𝐦 𝐐𝐮𝐚𝐥𝐢𝐭𝐲: .Pjerjzn solar panel disconnector switch are newly upgraded with connectors that do not differentiate between...
• 𝐏𝐫𝐨𝐭𝐞𝐜𝐭𝐢𝐨𝐧 𝐅𝐮𝐧𝐜𝐭𝐢𝐨𝐧: Solar disconnector switch has over voltage, overload and lightning protection functions, and...
• 𝐄𝐚𝐬𝐲 𝐈𝐧𝐬𝐭𝐚𝐥𝐥𝐚𝐭𝐢𝐨𝐧: Solar dc disconnect, installed between solar panel and solar inverter, can realize faster and safer...

View Lastest Price

For those looking to enhance the safety and efficiency of their solar energy systems, the Solar Panel Disconnect Switch 400V DC/AC 10A stands out as an excellent choice. This device features a robust IP65 rating, making it waterproof and dustproof, suitable for both indoor and outdoor use. It’s designed for photovoltaic solar panel systems, whether grid-connected or off-grid. With overvoltage, overload, and lightning protection, this switch effectively prolongs your system’s lifespan. Installation is straightforward, employing plug-and-play connections and pre-drilled holes. The package includes essential components and excellent customer support, ensuring an efficient setup experience tailored to your needs.

Best For: Individuals and businesses looking to enhance the safety and efficiency of their solar energy systems with a reliable disconnect switch.

Pros:

• IP65 rating ensures waterproof and dustproof performance for both indoor and outdoor applications.
• Easy installation with plug-and-play design and pre-drilled holes, facilitating a quick setup process.
• Robust protection features including overvoltage, overload, and lightning protection, prolonging the lifespan of solar systems.

Cons:

• Limited amperage of 10A may not be suitable for larger solar setups requiring higher current ratings.
• Transparency cover may be prone to scratches, potentially affecting visibility over time.
• Dependency on customer support might be necessary in case of installation or operational issues, which could prolong the setup process.

DC Solar Panels Disconnect Switch 63 Amp Solar Shut Off Switch

MINGSONG DC Solar Panels Disconnect Switch 63 Amp Solar Shut Off Switch 12V-400V 3 Poles AC...

• ⭐【Excellent Performance】63 Amp AC/ DC 400V solar dc circuit breaker, no polarity. Rated Voltage: DC 12-400V protect - and + pole or AC 90~400V protect L and N pole.
• 💪【Delicate Design】Used to protect power distribution facilities from overload and short-circuit damage, and can also be used for control and isolation. The...
• 🛠️【Easy To Use】 AC/DC pv disconnect switches are designed to be more precise trips based on current, even in extreme temperatures ranging from -40ºC to 85ºC...

View Lastest Price

Choosing a reliable disconnect switch is essential for both safety and efficiency in solar panel systems. The DC Solar Panels Disconnect Switch, rated at 63 Amps, is designed for DC voltages ranging from 12 to 400V and AC voltages from 90 to 400V. It features a three-pole miniature circuit breaker that protects against overload and short circuits. This switch operates effectively in extreme temperatures, from -40ºC to 85ºC, ensuring functionality and reliability. Suitable for both grid-connected and off-grid solar setups, it boasts a 99% quality assurance rate, along with active customer support for any inquiries you may have.

Best For: Those looking for a reliable and durable switch for solar panel systems in both grid-connected and off-grid applications.

Pros:

• Excellent overload and short-circuit protection ensures safety and longevity of the solar system.
• Operates effectively in extreme temperatures, making it suitable for diverse climates.
• High quality assurance rate of 99% and available customer support for product inquiries enhances user confidence.

Cons:

• Slightly more expensive than basic disconnect switches on the market.
• Installation may require professional assistance for those unfamiliar with electrical systems.
• Limited to specific voltage ranges, which may not suit all solar setups.

Solar Panel Disconnect Switch 32 Amp 500V DC Miniature Circuit Breaker

CNLonQcom Solar Panel Disconnect Switch 32 Amp 500V DC Miniature Circuit Breaker with Plug-and-Play...

• [1 Input 1 Output Solar Disconnect Switch]: This breaker box is designed to provide superior isolation, over-voltage and overload protection. It effectively prevents...
• [Solar Extension Cable]: This set includes four 30cm solar extension pre-wired cable with two pairs of solar connectors, making installation quick, secure, and...
• [circuit breaker]: Crafted from PA flame-retardant material, this circuit breaker operates efficiently across DC 12-500V and AC 90-500V systems. Its non-polarity design...

View Lastest Price

When it comes to safeguarding your solar panel system, the Solar Panel Disconnect Switch 32 Amp 500V DC Miniature Circuit Breaker stands out due to its robust protective features. This device delivers critical isolation, over-voltage, and overload protection, considerably reducing the risk of circuit damage and fire. It’s compatible with DC systems ranging from 12 to 500V and can handle AC systems from 90 to 500V. Constructed from flame-retardant materials, it’s IP65 rated, meaning it resists water and dust. The included accessories streamline installation, making it ideal for both on-grid and off-grid solar applications. Choose safety and efficiency with this versatile breaker.

Best For: Homeowners, RV owners, and businesses looking for a reliable and efficient safety solution for their solar panel installations.

Pros:

• Comprehensive Protection: Provides isolation, over-voltage, and overload protection to enhance safety and prevent circuit damage.
• Durable Design: Made from flame-retardant materials with an IP65 rating, ensuring water and dust resistance for harsh environments.
• Easy Installation: Comes with pre-wired cables and solar connectors for a quick, plug-and-play setup.

Cons:

• Limited to 32 Amp: May not be suitable for larger solar systems that require higher amperage protection.
• DC and AC Compatibility: While it supports both, users may find it complex to switch between DC and AC configurations if unfamiliar.
• Cost Consideration: Higher quality components may result in a steeper price compared to standard circuit breakers.

Factors to Consider When Choosing a Solar AC Disconnect

When choosing a solar AC disconnect, it’s important to evaluate several key factors to guarantee safety and efficiency. You’ll want to assess the voltage rating compatibility, verifying it matches your system’s requirements, while also examining the ampacity and load capacity to handle your energy needs. Additionally, think about the protection features offered, installation simplicity, and the weather resistance rating to assure durability and proper performance over time.

Voltage Rating Compatibility

To guarantee safety and efficiency in your solar energy system, understanding voltage rating compatibility is essential. When selecting a solar AC disconnect, make certain its voltage rating matches your system, usually between 120V and 240V for residential setups. Always check that the disconnect switch can handle the maximum voltage output of your solar panels and inverter, typically around 400V DC/AC for larger systems. Choose a disconnect switch designed to manage voltage fluctuations within your installation, preventing potential hazards. Opt for devices with a voltage rating exceeding your system’s maximum operational voltage for enhanced safety. Finally, verify that the disconnect switch complies with local electrical codes and regulations to ensure proper functionality and adherence to safety standards.

Ampacity and Load Capacity

Ampacity and load capacity are key factors to evaluate when choosing a solar AC disconnect. Ampacity refers to the maximum current a switch can handle without overheating. You should select a disconnect that matches the total expected current draw from your solar panels and inverters to avoid overload. This typically involves measuring in amps, accounting for peak loads, which may temporarily exceed your system’s average usage. Remember to take into account both continuous and surge loads. Following National Electrical Code (NEC) guidelines, it’s best to choose a disconnect rated for at least 125% of your maximum circuit load. This guarantees safe operation, helping to protect your investment and maintain efficiency in your solar installation.

Protection Features Offered

Selecting the right solar AC disconnect involves more than just understanding ampacity and load capacity; it also requires consideration of protection features. Look for overvoltage protection, which safeguards your system from voltage spikes that could cause damage. Overload protection is essential too, preventing excessive current from overheating and potentially failing your electrical circuits. Lightning protection features can further safeguard your system against electrical surges, extending its lifespan. A solid insulation rating, like IP66, indicates effective defense against water and dust. Finally, ascertain the disconnect is made from flame-retardant materials to minimize fire hazards in case of electrical faults. By focusing on these protection features, you can enhance both safety and efficiency in your solar installation.

Installation Simplicity and Design

When choosing a solar AC disconnect, ease of installation and thoughtful design are essential factors. Look for models that feature plug-and-play qualities and come with pre-drilled holes for a quicker setup. An internal guide rail, like a 35mm DIN rail mount, guarantees your disconnect sits securely and stably. Models with screw clamp wire connections improve mechanical stability, enhancing the reliability of your electrical connections. Additionally, prioritize disconnect switches with waterproof ratings, such as IP65 or IP66, to protect against moisture and dust during installation in diverse environments. Finally, verify that the product includes necessary accessories, like screws and terminals, to simplify your entire setup process, making your installation experience smoother and more efficient.

Weather Resistance Rating

Understanding weather resistance ratings is essential for anyone looking to invest in a solar AC disconnect. These ratings, like IP65 or IP66, indicate how well a disconnect can protect against dust and water, critical for outdoor use. An IP65 rating guarantees the device is resistant to dust and water sprays from any direction. For harsher conditions, consider devices rated IP66, which guard against dust and powerful water jets. Choosing a disconnect switch with a higher weather resistance rating prevents issues like short circuits and component failures due to moisture or debris. Ultimately, better weather resistance enhances the longevity and reliability of your solar AC disconnect, contributing considerably to the efficiency of your solar energy system.

Maintenance and Durability

To guarantee your solar AC disconnect performs effectively over time, you must consider several factors that impact its maintenance and durability. First, check its IP rating, aiming for IP65 or higher to confirm waterproof and dustproof capabilities; this is essential for outdoor use. Next, select flame-retardant materials to withstand high temperatures and mitigate fire hazards, enhancing long-term reliability. It’s also critical to confirm operations within extreme temperature ranges, such as -40ºC to 85ºC, to maintain performance in harsh environments. Look for robust protection against overvoltage and short circuits to safeguard your system and minimize maintenance costs. Finally, regular inspections of connections and components are essential, as they can greatly extend your disconnect switch’s lifespan.

Regulatory Compliance Standards

Choosing the right solar AC disconnect requires careful attention to regulatory compliance standards that guarantee safety and performance. First, confirm your disconnect adheres to local electrical codes, like the National Electrical Code (NEC) in the United States. This code provides essential guidelines for installation and usage. You’ll want solar AC disconnects that meet certification standards such as UL (Underwriters Laboratories) or CE (Conformité Européenne). These labels indicate the product’s safety and efficiency. Additionally, compliance with environmental regulations, like RoHS (Restriction of Hazardous Substances), guarantees the product is free from harmful chemicals. Finally, regular inspections and testing are critical to maintaining safety throughout the device’s lifespan, securing its reliability in your solar energy system.

Positioning and Mounting Options

Positioning and mounting options for solar AC disconnects are essential factors that can considerably influence the efficiency and safety of your solar energy system. First, confirm the disconnect switch is designed for DIN rail mounting, typically at 35mm, to fit your electrical setup. Place the switch in an easily accessible location, facilitating maintenance while shielding it from environmental elements. Verify the switch has a suitable IP rating, like IP65 or IP66, to protect against dust and water. Position it between key components, such as the inverter and solar panels, to confirm safe isolation. Finally, consider the height and orientation for ergonomic use, promoting quick and safe operation without awkward movements.

Frequently Asked Questions

What Is the Purpose of a Solar AC Disconnect?

A solar AC disconnect serves to isolate your solar power system from the electrical grid or the building’s electrical system. This is essential for safety during maintenance or emergencies. When you need to perform repairs, turning off the disconnect prevents electricity from flowing. Typically, it’s required by code to guarantee safe installation. You should check local regulations for specific requirements on placement and installation to guarantee compliance and safety.

How Do I Install a Solar AC Disconnect?

To install a solar AC disconnect, first, turn off the main power supply. Mount the disconnect box close to your solar inverter, ensuring it’s easily accessible. Connect the wires from your inverter to the input terminals of the disconnect, and then connect the output wires to your AC system. Use appropriate gauges for your wiring to handle the current. Finally, secure all connections, close the box, and turn the power back on carefully.

What Are the Safety Standards for Solar AC Disconnects?

Safety standards for solar AC disconnects involve specific criteria such as the National Electrical Code (NEC) compliance and rigorous testing for environmental resilience. You should verify your disconnect can handle the maximum voltage, often rated at 600 volts or more. These devices also need to feature a lockable mechanism, reducing accidental opening. Additionally, confirm it has proper ingress protection (IP) ratings, typically IP65, to guard against dust and water. Following these standards enhances system reliability.

Can Solar AC Disconnects Be Installed Outdoors?

Yes, you can install solar AC disconnects outdoors. Make certain they’re rated for outdoor use, which means they can withstand moisture, UV exposure, and temperature changes. Look for enclosures with an IP rating of at least IP65 to guarantee water and dust resistance. Follow local electrical codes and installation guidelines to confirm safety and performance. Proper outdoor installation helps protect your system and prolong its lifespan while providing accessible maintenance options.

How Often Should I Inspect My Solar AC Disconnect?

You should inspect your solar AC disconnect at least twice a year. Think of it like checking a smoke detector—miss it, and you risk safety. During each inspection, look for signs of wear, corrosion, or loose connections. Clean any dirt or debris around the unit. If you notice any issues, address them immediately to prevent potential hazards. Monitoring this regularly maintains peak performance and longevity of your solar system.
