10 Best Solar DC Circuit Breakers to Keep Your System Safe and Efficient
To keep your solar power system safe and efficient, choose reliable solar DC circuit breakers like the DC Miniature Circuit Breaker 2 Pole 100 Amp Isolator or the Chtaixi 1000V, 63 Amp model. Look for options with fast trip response, suitable voltage ratings (up to 1000V), and current ratings from 20A to 125A. Waterproof designs are essential for outdoor use. Consider these factors carefully, and you’ll guarantee the longevity and safety of your solar installation. Continue exploring for more insights.
Key Takeaways
- Consider circuit breakers with appropriate voltage ratings, ideally matching your solar system’s maximum voltage for safety and efficiency.
- Look for current ratings that align with your expected loads; breakers rated at 1.25 times the load offer added protection.
- Select breakers with fast trip mechanisms and reliable materials, such as silver alloy contacts, for enhanced performance and durability.
- Ensure installation compatibility with DIN rail standards and verify environmental ratings for outdoor applications to facilitate safe usage.
- Choose circuit breakers that provide arc extinguishing capabilities and are made from flame-retardant materials for optimal safety in high-power systems.
DC Miniature Circuit Breaker 2 Pole 100 Amp Isolator for Solar PV System
Chtaixi DC Miniature Circuit Breaker, 2 Pole 500V 100 Amp Isolator for Solar PV System, Thermal...
- FUNCTIONS: Used to protect power distribution facilities from overload and short-circuit damage, and can also be used for control and isolation.
- ARC EXTINGUISHING: This DC circuit breaker has a magnetic system to assist arc extinguishing.
- QUALITY: Silver alloy contacts, flame retardant material shell, color indicator.
When selecting the best solar DC circuit breakers for your photovoltaic system, consider the DC Miniature Circuit Breaker, a 2 Pole, 100 Amp Isolator specifically designed for high-performance applications. This breaker protects your setup by preventing overloads and short circuits, guaranteeing safe operation. It features thermal magnetic trip protection, which combines heat and magnetism for effective circuit management. You’ll appreciate the silver alloy contacts for improved conductivity and a flame-retardant material shell for durability. The device mounts on a standard 35mm DIN rail, simplifying installation. For connection, use screw clamp wires and make certain to crimp copper ends for secure attachments.
Best For: Those seeking a reliable and efficient circuit breaker for their solar photovoltaic (PV) systems.
Pros:
- Enhanced safety with thermal magnetic trip protection to prevent overloads and short circuits.
- Durable construction using flame-retardant materials and silver alloy contacts for improved conductivity.
- Easy installation on standard 35mm DIN rail with straightforward wiring connections.
Cons:
- Limited to DC applications, which may not be suitable for users needing AC circuit protection.
- Requires specific wiring techniques, such as crimping copper ends, which may not be familiar to all users.
- Rating may be excessive for smaller solar systems, leading to potential over-specification for less demanding applications.
Chtaixi DC Miniature Circuit Breaker for Solar PV System
CHTAIXI DC Miniature Circuit Breaker, 2 Pole 1000V 32 Amp Isolator for Solar PV System, Thermal...
- FUNCTIONS: Used to protect power distribution facilities from overload and short-circuit damage, and can also be used for control and isolation.
- FAST TRIP: The electromagnetic trip system can trip immediately when the circuit is short-circuited to protect the safety of the circuit.
- ARC EXTINGUISHING: DC arc extinguishing is more difficult than AC. This DC mini circuit breaker has a magnetic system to assist arc extinguishing.
The Chtaixi DC Miniature Circuit Breaker is an excellent choice for those looking to enhance safety and control in solar photovoltaic systems. This 2 Pole, 1000V, 32 Amp isolator effectively protects your power distribution from overload and short-circuit damage. With its thermal magnetic trip design, it guarantees quick activation during emergencies. Ideal for DC applications, including solar setups, it also works well in ship electric systems. Installation is straightforward, utilizing screw clamp wires for secure connections on a 35mm DIN rail. The fast trip function and magnetic system excel at extinguishing arcs, guaranteeing safety in your solar operations.
Best For: Those seeking reliable protection and control for solar photovoltaic and other DC power systems.
Pros:
- Fast trip function for immediate response during short-circuits enhances safety.
- Designed for easy installation with screw clamp wires on a 35mm DIN rail.
- Magnetic system effectively extinguishes arcs, making it suitable for challenging DC circuit conditions.
Cons:
- Limited to DC applications, not suitable for AC systems.
- Requires proper installation on DIN rails, which may need additional mounting equipment.
- May need regular maintenance to ensure optimal performance in harsh environments.
60Amp Circuit Breaker DC 12V-48V for Marine and Automotive (Pack of 2)
Bolipoeq 60Amp Circuit Breaker DC 12V-48V for Marine Boat Trolling Motor Automotive RV Trailer Car...
- 【Specification】: 60 Amp Circuit Breaker 12v, Operating Voltage: DC 12V - 48V, Waterproof IP 67, Meet S.A.E. J1625, J1171, UL1500 (Ignition Protected). Widely used in...
- 【Protect the System from Electrical Damage】: These 12 volt circuit breakers are designed for protecting your boat trolling motor or vehicles from overload and...
- 【Manual Reset Function】: Unique disconnect button & long handle resettable lever make the fuse circuit breaker become reusable and controllable. This 60A DC breaker...
For marine and automotive enthusiasts, the 60 Amp Circuit Breaker DC 12V-48V is an essential safeguard against electrical failures. It’s specifically designed to prevent overloads and short circuits in various applications, including RVs and trailers. With its waterproof IP67 rating, this circuit breaker resists moisture, making it reliable in harsh environments. The manual reset feature lets you easily restore functionality using the long lever, which can also serve as a kill switch for added safety. Installation is straightforward; simply mount it on a panel or firewall with the included screws and wire lugs. This pack provides two robust circuit breakers, ensuring you’re prepared.
Best For: This product is best for marine and automotive enthusiasts seeking reliable protection against electrical overloads and short circuits in their vehicles or equipment.
Pros:
- Waterproof with an IP67 rating, ensuring reliability in harsh marine and automotive environments.
- Manual reset feature allows for easy restoration of functionality and can double as a kill switch.
- Easy installation with included mounting hardware, making it accessible for various applications.
Cons:
- Limited to a maximum of 60 Amps, which may not suffice for higher power applications.
- Requires a manual reset after tripping, which might be less convenient in urgent situations.
- Surface mount design may not suit all installation preferences or tight spaces.

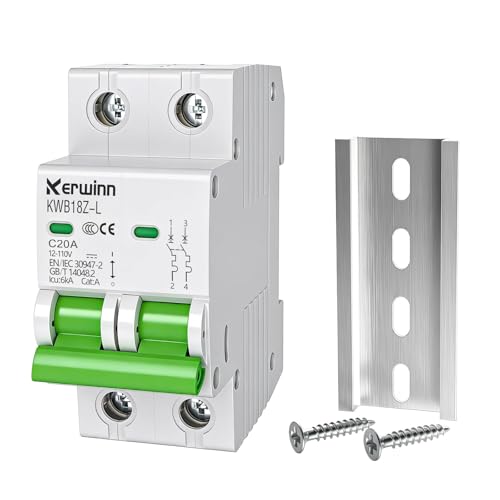

DC Miniature Circuit Breaker 2 Pole 20 Amp for Battery and Solar Systems
KERWINN DC Miniature Circuit Breaker, 12V-110V Circuit Breaker 2Pole 20Amp Breakers DIN Rail...
- PRODUCT NAME: DC circuit breaker, Model: LKB18Z-L-2P, Rated voltage: 12-110VDC, Number of poles:2pole, Rated current: 20A，Polarity: Non-polarity.
- ARC EXTINGUISHING SYSTEM：DC miniature circuit breaker with built-in arc extinguishing magnetic field system, auxiliary arc extinguishing, safe and stable operation.
- EASY INSTALLATION: DC type with instantaneous tripping C-curve, suitable for mounting on international standard 35 mm DIN rails.
Choosing the right circuit breaker is essential for anyone working with solar systems or battery-powered applications, especially if you need reliable protection. The DC Miniature Circuit Breaker, model LKB18Z-L-2P, provides a rated current of 20 Amps and operates safely within a voltage range of 12-110V DC. Its two-pole design allows effective isolation of both circuits. Equipped with an immediate tripping capability, it guards against overloads and short circuits, ensuring your system stays protected. Ideal for solar photovoltaic systems, electric motorbikes, and caravans, this breaker easily mounts on DIN rails. Plus, after-sales support is always available for inquiries.
Best For: This product is best for users of solar power systems, electric motorbikes, and battery-operated caravans who need reliable circuit protection.
Pros:
- Immediate tripping capability protects against short circuits and overloads, ensuring safety.
- Versatile voltage range of 12-110V DC makes it suitable for various applications.
- Easy DIN rail mounting simplifies installation in battery power systems.
Cons:
- Limited to a maximum current of 20A, which may not suffice for larger systems.
- Only designed for DC applications, limiting usage for AC systems.
- May require professional installation for optimal performance, leading to additional costs.
DC Miniature Circuit Breaker, 2 Pole 125 Amp Isolator for Solar PV System
Chtaixi DC Miniature Circuit Breaker, 2 Pole 500V 125 Amp Isolator for Solar PV System, Thermal...
- FUNCTIONS: Used to protect power distribution facilities from overload and short-circuit damage, and can also be used for control and isolation.
- ARC EXTINGUISHING: This DC circuit breaker has a magnetic system to assist arc extinguishing.
- QUALITY: Silver alloy contacts, flame retardant material shell, color indicator.
When you’re setting up a solar photovoltaic system, using a DC Miniature Circuit Breaker, specifically a 2 Pole 500V 125 Amp Isolator, is vital for keeping your system safe and functional. This device protects your power distribution from overloads and short circuits, preventing potential damage. With a thermal magnetic trip mechanism, it can easily disconnect both high and low currents. Made from silver alloy contacts and flame-retardant material, its durability guarantees long-term performance. It’s designed for 35mm DIN rail installation, where secure wire connections are critical. Always check the color indicator to confirm operational status, keeping your system efficient and reliable.
Best For: Solar photovoltaic system installers and homeowners seeking reliable protection for their DC electrical circuits.
Pros:
- Durable construction with silver alloy contacts and flame-retardant material enhances longevity.
- Effective overload and short-circuit protection ensures safety in solar installations.
- Thermal magnetic trip mechanism allows for efficient disconnection of high and low currents.
Cons:
- Requires specific mounting and installation tools, such as a DIN rail and screw clamps, which may not be readily available for all users.
- Limited to DC applications, restricting use in alternating current systems.
- The need for copper crimping on soft silicone wires might complicate installation for some users.

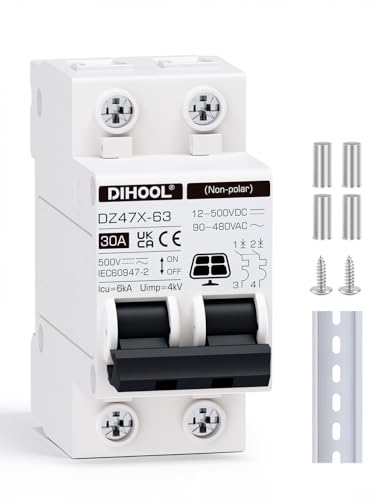

DIHOOL Solar Disconnect Switch, 30 Amp 2 Pole
DIHOOL Solar Disconnect Switch, 30 Amp 2 Pole, DIN Rail Mount, Non Polarized, 12V 24V 48V 400V...
- FUNCTIONS: Used to protect 48~500VDC OR 90~480VAC circuit from overload and short circuit damage and 12~48VDC from overload damage, and can also be used for control and...
- Breaker Switch has built-in arc squelching magnet which enables the high arc extinguisher,flame-retardant enclosure, silver alloy contacts, and sufficient pure copper...
- Come with 1 x DIN rail, 2 x screws for easy mounting and 4 x copper crimp terminal for wiring to make sure that the wires are tightly connected.
The DIHOOL Solar Disconnect Switch, rated at 30 Amps and featuring a two-pole design, is an ideal choice for anyone working with solar energy systems. It’s compatible with a voltage range from 12V to 400V, covering both DC and AC circuits. The non-polarized design simplifies installation, reducing wiring errors. With its flame-retardant enclosure and silver alloy contacts, this switch guarantees durability and safety. It’s suitable for controlling photovoltaic solar panel arrays, batteries, and inverters. Additionally, its fast trip response protects against overloads and short circuits, enhancing your system’s longevity and effectiveness. Use this switch for reliable solar energy management.
Best For: The DIHOOL Solar Disconnect Switch is best for solar energy system installers and users seeking a reliable and safe way to manage power flow in photovoltaic systems.
Pros:
- High Voltage Compatibility: Supports a wide voltage range from 12V to 400V for both AC and DC applications.
- Durable Construction: Made with a flame-retardant enclosure and silver alloy contacts to ensure long-lasting performance.
- Fast Trip Response: Provides immediate protection against overloads and short circuits, enhancing system safety.
Cons:
- Limited Current Rating: Rated at 30 Amps, which may not be suitable for larger systems requiring higher current capacity.
- Specialized Use Case: Primarily designed for solar and reversible motor systems, limiting its versatility in other applications.
- Installation on DIN Rail Only: Requires a specific mounting method (DIN rail), which may not be compatible with all setups.

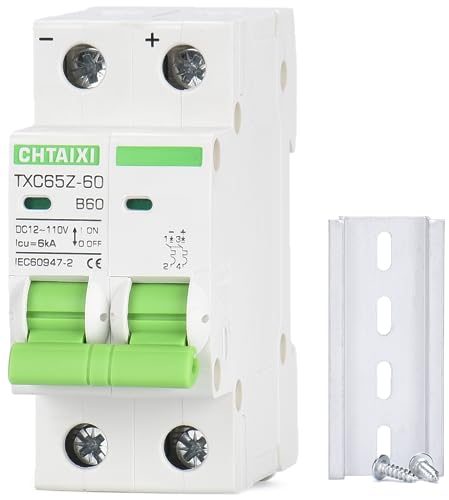

Chtaixi 12V-110V DC Miniature Circuit Breaker (60 Amp)
12V-110V DC Miniature Circuit Breaker, 60 Amp 2 Pole Battery Breaker Protector for Solar PV System...
- FUNCTIONS: Used to protect 12V 24V 36V 48V 60V 100V DC circuit from overload and short circuit damage, and can also be used for control and isolation.
- FAST TRIP: The electromagnetic trip system can trip immediately when short-circuited.
- CURVE B: Magnetic trip range 4-7 times rated current.
For those operating battery systems or solar photovoltaic setups, the Chtaixi 12V-110V DC Miniature Circuit Breaker (60 Amp) stands out as an essential component. This circuit breaker protects various DC circuits—12V, 24V, 36V, 48V, 60V, and even up to 100V—from overloads and short circuits. Its fast trip mechanism reacts quickly to faults, ensuring immediate circuit interruption. Ideal for solar PV systems, RVs, and electric mopeds, it offers reliable isolation and control. The unit easily installs on a 35 mm DIN rail and features screw clamps for secure wire connections, making it user-friendly for various applications.
Best For: Those utilizing battery power systems, solar photovoltaic systems, or RVs needing reliable protection against overloads and short circuits.
Pros:
- Fast trip mechanism ensures immediate response to short circuits, enhancing safety.
- Compatible with a wide range of DC voltages (12V to 100V), making it versatile for various applications.
- Easy installation on a 35 mm DIN rail with secure wire connections using screw clamps.
Cons:
- May require additional space for DIN rail mounting, which could be a limitation in compact installations.
- Rated at 60 Amp, it may not be suitable for high-capacity systems exceeding this limit.
- Some users may find the electromagnetic trip mechanism less intuitive than thermal trip options.

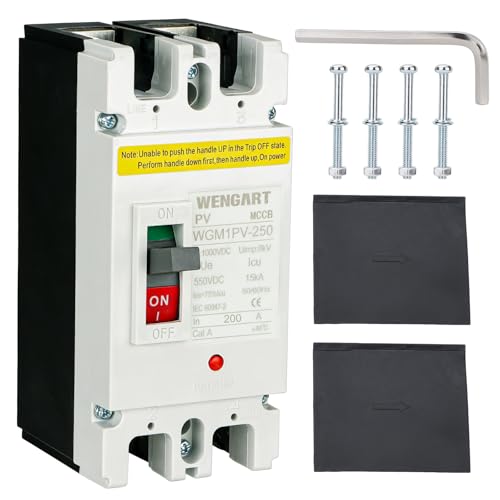

Wengart MCCB Circuit Breaker WGM1PV-250 (200Amp, 2P DC for Solar Systems)
Wengart 200A 500V DC MCCB Breaker Disconnect Switch for Solar DIYers to Stop Panel Cable Crossings...
- High-Output Inverter Systems: Stops catastrophic thermal runaways and violent short-circuit meltdowns in massive lithium banks using a heavy-duty 200A frame engineered...
- Custom Solar Combiner Boxes: Eliminates awkward cable crossings and messy panel management through an adaptive top terminal design that lets you freely map...
- Continuous Off-Grid Feeds: Prevents hazardous directional reverse-feeding faults and dangerous arcing by utilizing a strict top-in (Line) and bottom-out (Load) flow...
Choosing the Wengart MCCB Circuit Breaker WGM1PV-250 (200Amp, 2P DC) could be a wise decision for anyone involved in solar energy systems. This advanced two-pole direct current (DC) circuit breaker handles up to 200 amps and operates at a voltage of 500 volts, making it ideal for solar applications. It features rapid disconnection to protect against overloads and short circuits, enhancing your system’s safety. With its compact design, it’s simple to install and fits various DC settings, including electric vehicle charging stations. Plus, its durability means less frequent maintenance, lowering your overall project costs.
Best For: The Wengart MCCB Circuit Breaker WGM1PV-250 is best for solar energy system installers and operators looking for reliable protection in DC circuits.
Pros:
- Rapid disconnection: Enhances safety by quickly responding to overloads and short circuits.
- Compact design: Facilitates easy installation and wiring in various DC applications.
- Durable and low maintenance: Reduces long-term costs with its robust build and reliability.
Cons:
- Limited to DC applications: Not suitable for AC systems, which may restrict its use in some settings.
- Operational temperature range: Performance might be impacted at temperatures outside -10℃ to 50℃.
- Specific voltage limitations: Designed for a maximum of 500V, which might not meet all project requirements.
Chtaixi DC Miniature Circuit Breaker (2 Pole, 1000V, 63 Amp)
CHTAIXI DC Miniature Circuit Breaker, 2 Pole 1000V 63 Amp Isolator for Solar PV System, Thermal...
- FUNCTIONS: Used to protect power distribution facilities from overload and short-circuit damage, and can also be used for control and isolation.
- FAST TRIP: The electromagnetic trip system can trip immediately when the circuit is short-circuited to protect the safety of the circuit.
- ARC EXTINGUISHING: DC arc extinguishing is more difficult than AC. This DC mini circuit breaker has a magnetic system to assist arc extinguishing.
When you’re looking for reliable performance in solar power systems, the Chtaixi DC Miniature Circuit Breaker stands out as an excellent choice. With a 2 pole design and a voltage rating of 1000V, this breaker can handle up to 63 amps, making it suitable for various DC applications. It protects your system from overloads and short-circuit damage, ensuring safety and efficiency. Featuring a fast trip mechanism and integrated magnetic assist for arc extinguishing, it’s optimized for direct current systems. Installation is straightforward, as it’s designed for screw clamp connections on 35mm DIN rails, facilitating easy setup in solar photovoltaic systems.
Best For: Individuals and businesses looking for reliable circuit protection in DC power systems, particularly solar photovoltaic applications.
Pros:
- High Voltage Rating: Capable of handling up to 1000V, making it suitable for various DC applications.
- Rapid Response: Features a fast trip mechanism for immediate protection against overloads and short-circuits.
- Easy Installation: Designed for screw clamp connections on 35mm DIN rails, simplifying the setup process.
Cons:
- Limited to DC Applications: Not suitable for AC systems, which may restrict its use in some installations.
- Specific Amperage Limits: Max capacity of 63 amps may not accommodate larger power systems.
- Dependency on DIN Rail Installation: Requires specific mounting infrastructure, which may not be available in all setups.
250Amp Circuit Breaker DC 12V-48V for Marine and Automotive Use (Pack of 2)
Bolipoeq 250Amp Circuit Breaker DC 12V-48V for Marine Boat Trolling Motor Automotive RV Trailer Car...
- 【Specification】: 250 Amp Circuit Breaker 12v, Operating Voltage: DC 12V - 48V, Waterproof IP 67, Meet S.A.E. J1625, J1171, UL1500 (Ignition Protected). Widely used in...
- 【Protect the System from Electrical Damage】: These 12 volt circuit breakers are designed for protecting your boat trolling motor or vehicles from overload and...
- 【Manual Reset Function】: Unique disconnect button & long handle resettable lever make the fuse circuit breaker become reusable and controllable. This 250A DC breaker...
If you’re looking for reliable circuit protection for your marine or automotive electrical systems, the 250 Amp Circuit Breaker DC 12V-48V (Pack of 2) stands out as an excellent choice. This circuit breaker operates efficiently within a voltage range of 12 to 48 volts, making it perfect for various applications, such as boats and vehicles. Its waterproof design (rated IP67) guarantees durability in harsh conditions. With a manual reset function, you can quickly restore power after an over-current event by simply pressing the reset lever. The pack includes essential installation components like wire lugs and mounting screws for your convenience.
Best For: This 250 Amp Circuit Breaker is best for marine and automotive enthusiasts looking for reliable and high-capacity circuit protection in their electrical systems.
Pros:
- Waterproof design (IP67) ensures durability in harsh marine and automotive environments.
- Manual reset functionality allows for quick power restoration after an overload.
- Includes mounting hardware and wire lugs for easy installation.
Cons:
- May be overkill for low-draw applications, increasing cost unnecessarily.
- The size might be challenging for compact installations.
- Requires manual resetting, which may be less convenient in certain situations.
Factors to Consider When Choosing a Solar DC Circuit Breaker
When choosing a solar DC circuit breaker, it’s important to take into account several key factors that impact performance. You’ll want to assess the rated voltage to match your system—common ratings include 12V, 24V, and 48V. Also, verify the current rating suits your application, look at installation compatibility, and check for features like arc extinguishing capabilities, which are critical for safety during operation.
Rated Voltage Selection
Selecting the right rated voltage for a solar DC circuit breaker is essential to guarantee safety and efficiency in your solar power system. Make sure the rated voltage matches or exceeds the system’s maximum voltage, often found as DC 500V or DC 1000V. This higher rating allows compatibility with larger solar arrays, preventing potential circuit failures due to excessive voltage. For typical setups, check if your modules and inverters require 12V, 24V, or even up to 400V. Additionally, a circuit breaker rated for higher voltages can absorb unexpected spikes, enhancing overall protection. Don’t forget to review local regulations; they might specify minimum voltage ratings for electrical safety and compliance in your solar installation.
Current Rating Suitability
Choosing the right current rating for a solar DC circuit breaker is pivotal for the safe operation of your solar energy system. The current rating must match or exceed your system’s maximum expected current to protect against overloads and short circuits effectively. For residential solar systems, circuit breakers typically range from 20A to 125A, depending on your installation’s size and capacity.
Guarantee the continuous current rating can handle the continuous duty load without tripping. It’s wise to select breakers rated at 1.25 times the expected continuous load for added safety. For larger systems with high current needs, such as those over 100A, applicable breakers guarantee safe interruption of high fault currents, contributing to a more reliable solar setup.
Installation Compatibility Requirements
To guarantee your solar DC circuit breaker functions effectively, several compatibility factors are critical. First, verify it’s compatible with a DIN rail mounting system, designed for a standard width of 35mm for straightforward installation. Next, check that the rated voltage matches or exceeds your solar system’s maximum, typically 500V for most applications. Additionally, consider the current rating; opt for a breaker with a capacity of 100 Amps or higher if your system demands significant power. You should also confirm the wire connection types, like screw clamp or crimp, to fit your specific wiring. Finally, assess the environmental ratings, such as IP67, to guarantee the breaker can withstand local conditions, securing long-term reliability.
Protection Features Importance
When it comes to solar DC circuit breakers, protection features play a pivotal role in ensuring the safety and efficiency of your electrical system. These features guard against overloads and short circuits, which can damage your equipment. A fast trip mechanism is essential; it allows the breaker to disconnect quickly during a short circuit, minimizing hazards. Consider circuit breakers made with high-quality materials, like silver alloy contacts, as they boost conductivity and reliability. Clear operational status indicators are also important, letting you monitor system integrity easily. By choosing a breaker with these protection features, you’ll enhance the overall safety and longevity of your solar energy system, ensuring reliable performance for years to come.
Arc Extinguishing Capabilities
How effectively does a solar DC circuit breaker extinguish arcs during operation? The arc extinguishing capability is essential because DC arcs are more challenging to break compared to AC arcs, due to the continuous nature of the current. Look for breakers that use a magnetic system, which helps to extinguish these arcs promptly during short-circuits. Additionally, circuit breakers with silver alloy contacts offer improved conductivity and performance. Many reliable models include built-in arc extinguishing mechanisms, ensuring immediate disconnection and protection from hazards, especially during overloads. When evaluating a circuit breaker, consider models with these features to reduce equipment damage and enhance the lifespan of your solar system, ultimately leading to a safer and more efficient operation.
Environmental Ratings Consideration
Environmental ratings play an essential role in selecting a solar DC circuit breaker. First, confirm the breaker has a suitable IP rating, like IP67, which verifies it’s waterproof and dustproof for outdoor use. You should also check the operating temperature range; many circuit breakers function effectively between -10℃ and 50℃. Additionally, look for flame-retardant enclosures, as they enhance safety by minimizing fire risks. Don’t overlook the materials used in construction—durable housing and insulating components are critical for withstanding UV exposure and humidity. Finally, assess the circuit breaker’s capability to handle electrical surges and its compliance with safety standards, guaranteeing environmental resilience for your solar system. Prioritizing these factors will help you make an informed choice.
Mounting and Wiring Options
Choosing the right mounting and wiring options for your solar DC circuit breaker is key to ensuring a reliable and efficient solar power system. First, confirm that your circuit breaker fits a standard 35mm DIN rail, which is essential for secure installation. Look for models featuring screw clamp wire connections for reliable electrical performance. Additionally, check the wire gauge compatibility, as some breakers may need copper crimping for soft silicone wire ends, enhancing stability. Evaluate the space available for installation to select a breaker that fits appropriately. Finally, opt for non-polarized designs, which simplify the installation process and lower the risk of wiring errors, making your setup easier and more efficient.
Frequently Asked Questions
What Is the Warranty Period for Solar DC Circuit Breakers?
Most solar DC circuit breakers come with a warranty period ranging from one to ten years, depending on the manufacturer and model. Some higher-end models may even offer extended warranties, reflecting their quality and reliability. You should check the specific product details to understand what’s covered. A reliable warranty protects your investment, ensuring the breaker functions efficiently throughout its life. Always keep the warranty documentation for reference in case of future issues.
How Often Should Solar DC Circuit Breakers Be Replaced?
You should consider replacing solar DC circuit breakers every 3 to 5 years, depending on usage and environment. If they show signs of wear, like frequent trips or physical damage, it’s time for a replacement. Regularly inspect them for corrosion or overheating. If your system experiences surge events, you might need to replace them sooner. Keeping backups on hand can help prevent disruptions in your solar energy production and maintain safety.
Can I Use Standard Circuit Breakers in My Solar System?
No, you can’t use standard circuit breakers in your solar system. Solar systems require dedicated DC circuit breakers designed for direct current, which operate differently than AC circuit breakers. Using standard breakers might lead to failure during high voltage situations. For instance, if your system has a 600V output, you need breakers rated for that voltage. Always choose components that are specifically designed for solar applications to guarantee safety and efficiency.
What Are the Signs of a Failing Solar DC Circuit Breaker?
If your solar DC circuit breaker is failing, you might notice signs like frequent trips, no reset capabilities, or physical damage. A breaker should reset after a fault; if it doesn’t, it’s likely faulty. You may also experience inconsistent performance in your solar system, leading to energy loss. Additionally, if the breaker feels excessively hot or gives off a burning smell, it’s important to replace it immediately to guarantee safety and efficiency.
How Are Solar DC Circuit Breakers Installed Safely?
To install solar DC circuit breakers safely, start by turning off the main power supply. Next, mount the breaker box on a stable surface, using screws. Connect the incoming wires: positive to the positive terminal and negative to the negative terminal. Securely tighten these connections using a screwdriver, verifying there’s no exposed wire. Finally, restore power and test the system. This process guarantees your setup’s safety and efficiency, helping to prevent electrical hazards.
