10 Best Solar Disconnect Switches for Safe and Efficient Energy Management
To safely and efficiently manage your solar energy, choose from top solar disconnect switches like the Wayona 500V, the Chtaixi 63 Amp circuit breaker, and the 1000V 50A switch for home systems. Each option offers key features like high IP ratings for waterproofing, ensuring reliability in outdoor conditions. When selecting, consider factors like voltage, amperage ratings, and installation complexity. These details can help you make an informed decision for your solar setup, and there’s more to explore.
Key Takeaways
- Look for solar disconnect switches with high voltage ratings, such as 1000V, to accommodate various solar PV systems and battery setups.
- Consider safety features like overload and short-circuit protection to ensure the reliability of your solar installation and reduce potential hazards.
- Opt for models with high waterproof ratings (IP65 or above) to ensure performance in diverse weather conditions and outdoor applications.
- Choose switches that offer easy installation, like plug-and-play designs or pre-drilled holes, for a more convenient setup process.
- Evaluate the material quality and durability of switches to ensure longevity, focusing on flame-retardant plastics and silver contacts for enhanced conductivity.
Wayona Solar Panel Disconnect Switch DC 500V

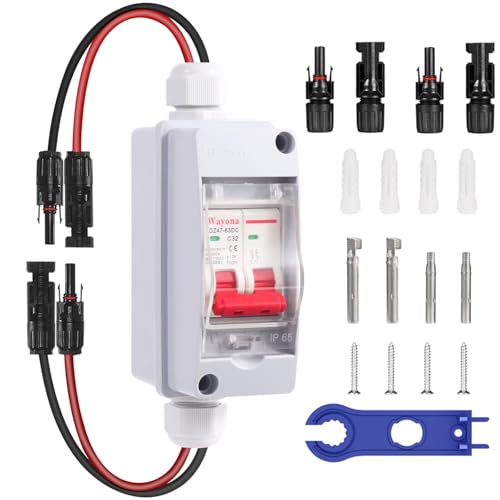

Wayona Solar Panel Disconnect Switch DC 500V Circuit Breaker Box 32Amp IP65 Waterproof Miniature...
- 【Superior Performance】Rated for DC500V and 32A, our solar disconnect switch is suitable for a wide range of solar installations and can provide stable and efficient...
- 【Effective Protection】With an IP65 waterproof rating, this solar disconnect box is highly resistant to water and dust. It can withstand the harsh outdoor...
- 【Easy Installation】This DC circuit breaker adopts a plug and play design, which can be easily installed between solar panels and inverter. With MC solar connectors...
The Wayona Solar Panel Disconnect Switch DC 500V is ideal for homeowners and businesses looking for reliable protection in their solar energy systems. Rated for 32 amps, it suits various solar setups, whether you’re on-grid or off-grid. Its IP65 waterproof rating safeguards it against dust and water, ensuring durability in harsh conditions. You’ll appreciate the plug-and-play design, which makes installation between solar panels and inverters quick and straightforward. Additionally, the transparent cover allows you to monitor the circuit breaker status effortlessly. This switch is perfect for homes, RVs, and other outdoor environments, consistently maintaining performance through temperature fluctuations and UV exposure.
Best For: The Wayona Solar Panel Disconnect Switch DC 500V is best for homeowners and businesses seeking dependable safety solutions for their solar energy systems.
Pros:
- Plug-and-play installation simplifies the setup process between solar panels and inverters.
- IP65 waterproof rating ensures protection from dust and water for enhanced durability in various environments.
- Versatile compatibility with both on-grid and off-grid solar systems makes it suitable for a wide range of applications.
Cons:
- Limited to 32A rating, which may not be sufficient for larger solar installations requiring higher capacity.
- Transparent cover may be susceptible to scratches or clouding over time, potentially hindering visibility.
- Requires proper installation by knowledgeable personnel to ensure optimal performance and safety.
Chtaixi DC Miniature Circuit Breaker for Solar PV System
CHTAIXI DC Miniature Circuit Breaker, 2 Pole 1000V 63 Amp Isolator for Solar PV System, Thermal...
- FUNCTIONS: Used to protect power distribution facilities from overload and short-circuit damage, and can also be used for control and isolation.
- FAST TRIP: The electromagnetic trip system can trip immediately when the circuit is short-circuited to protect the safety of the circuit.
- ARC EXTINGUISHING: DC arc extinguishing is more difficult than AC. This DC mini circuit breaker has a magnetic system to assist arc extinguishing.
For anyone seeking reliability and safety in their solar photovoltaic (PV) systems, the Chtaixi DC Miniature Circuit Breaker stands out as a top choice. This 2-pole isolator, rated at 1000V and 63 Amps, protects your power distribution from overload and short-circuit damage. Featuring a fast trip mechanism, it reacts instantly to electrical faults. The integrated magnetic assist enhances its ability to extinguish arcs, which is essential for DC applications. Installation is straightforward on a 35mm DIN rail, using screw clamp wire connections. Ideal for solar setups, this breaker guarantees both control and isolation, ensuring safer energy management for your system.
Best For: Individuals and businesses looking for a reliable and safe circuit breaker for their solar photovoltaic systems.
Pros:
- Fast trip mechanism ensures immediate response to electrical faults, enhancing safety.
- Integrated magnetic assist for arc extinguishing is optimized for DC applications, making it effective in solar setups.
- Easy installation on 35mm DIN rails with screw clamp wire connections simplifies the setup process.
Cons:
- Limited to DC applications, which may not suit users needing AC protection.
- Requires proper knowledge of electrical systems for safe installation and usage.
- The 1000V rating may be excessive for smaller solar PV systems, potentially increasing costs unnecessarily.
Solar Panel Disconnect Switch 1000V 50A for Solar PV Homes
Pjerjzn Solar Panel Disconnect Switch 1000V 50A PV Disconnect Switch Outdoor Miniature Circuit...
- 𝐏𝐫𝐞𝐦𝐢𝐮𝐦 𝐐𝐮𝐚𝐥𝐢𝐭𝐲: .Pjerjzn solar panel disconnector switch are newly upgraded with connectors that do not differentiate between...
- 𝐏𝐫𝐨𝐭𝐞𝐜𝐭𝐢𝐨𝐧 𝐅𝐮𝐧𝐜𝐭𝐢𝐨𝐧: Solar disconnector switch has over voltage, overload and lightning protection functions, and...
- 𝐄𝐚𝐬𝐲 𝐈𝐧𝐬𝐭𝐚𝐥𝐥𝐚𝐭𝐢𝐨𝐧: Solar dc disconnect, installed between solar panel and solar inverter, can realize faster and safer...
Designed specifically for solar PV homes and battery systems, the Solar Panel Disconnect Switch 1000V 50A stands out due to its impressive features. With an IP65 rating, this switch is waterproof and dustproof, making it suitable for outdoor installations. You’ll appreciate the upgraded connectors, which simplify installation without worrying about male or female distinctions. Built with a thickened purple copper coil, it guarantees long-lasting performance. Protection against overvoltage and overload enhances safety and prolongs your solar system’s lifespan. The transparent cover allows you to easily monitor its status, while pre-drilled holes make installation simple and efficient.
Best For: Homeowners with solar PV systems and battery setups looking for a reliable, durable disconnect switch.
Pros:
- Simplifies installation with upgraded connectors that eliminate male/female differentiation.
- Offers excellent protection features like overvoltage, overload, and lightning protection.
- Waterproof and dustproof with an IP65 rating, making it suitable for outdoor use.
Cons:
- May require professional installation for those unfamiliar with electrical systems.
- Limited compatibility with certain older solar panel systems.
- The transparent cover may not be as durable against harsh environmental conditions over time.
Solar Disconnect Switch for Photovoltaic Solar Panel Systems

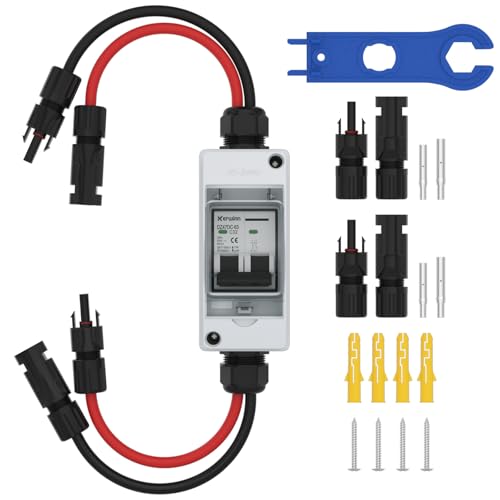

KERWINN Solar Disconnect Switch,400V 30A Solar Panel Disconnect Switch,IP67 Waterproof AC/DC Breaker...
- Product Name: Solar Panel Disconnect Switch, Current: 30AMP, Voltage: 400V, No Polarity
- High quality material: solar panel breaker is made of high quality material, durable, firmly sealed, not easy to deform. ip65 waterproof and dustproof, ensure the safety...
- Simple installation: solar breaker box has visualization transparent window, observe the internal situation at any time. Easy to use, plug and play.
If you’re looking for a reliable option in solar disconnect switches, the 400V 30A Solar Disconnect Switch is an excellent choice for both AC and DC systems. This switch has a current rating of 30 amps and a voltage rating of 400 volts, making it suitable for various setups, whether grid-connected or off-grid. Its IP67 waterproof rating guarantees protection against dust and water. Installation is easy, thanks to its plug-and-play functionality. You can even observe the internal components through a transparent window. For any questions, KERWINN provides a dedicated customer support team to assist you promptly.
Best For: Those seeking a reliable and easy-to-install disconnect switch for both AC and DC solar panel systems.
Pros:
- High durability due to high-quality materials and a sealed design that prevents deformation.
- Easy installation with plug-and-play functionality and transparent window for internal observation.
- Waterproof and dustproof with an IP67 rating, ensuring longevity in various environmental conditions.
Cons:
- Limited current rating of 30 amps may not be suitable for larger systems requiring higher capacity.
- Potential maintenance required if used in extreme environments despite the waterproof rating.
- Fixed design might not accommodate customization for specific installation preferences.
Solar Panel Disconnect Switch 1000V DC/AC 16A

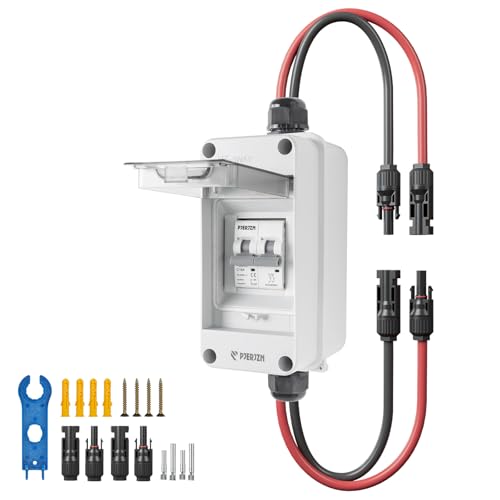

Pjerjzn Solar Panel Disconnect Switch 1000V DC/AC 16A PV Disconnect Switch Outdoor Miniature Circuit...
- 𝐏𝐫𝐞𝐦𝐢𝐮𝐦 𝐐𝐮𝐚𝐥𝐢𝐭𝐲: .Pjerjzn solar panel disconnector switch are newly upgraded with connectors that do not differentiate between...
- 𝐏𝐫𝐨𝐭𝐞𝐜𝐭𝐢𝐨𝐧 𝐅𝐮𝐧𝐜𝐭𝐢𝐨𝐧: Solar disconnector switch has over voltage, overload and lightning protection functions, and...
- 𝐄𝐚𝐬𝐲 𝐈𝐧𝐬𝐭𝐚𝐥𝐥𝐚𝐭𝐢𝐨𝐧: Solar dc disconnect, installed between solar panel and solar inverter, can realize faster and safer...
The Solar Panel Disconnect Switch 1000V DC/AC 16A is an essential component for anyone looking to enhance the safety and efficiency of their solar energy system. This switch is specially designed for solar photovoltaic (PV) arrays in homes and batteries, providing reliable operation. It features upgraded connectors that simplify installation without differentiation, while premium materials guarantee durability. With IP65 waterproof protection, it withstands dust and harsh weather. Positioned between the solar panel and inverter, installation is quick and secure with included waterproof connectors. This versatility makes it suitable for grid, off-grid systems, and RV applications, backed by customer support and a thorough manual.
Best For: Homeowners and RV users looking for a reliable and efficient solution to enhance the safety of their solar energy systems.
Pros:
- Upgraded connectors facilitate quick installation without male/female differentiation.
- IP65 rating ensures waterproof protection, making it suitable for harsh outdoor environments.
- Built-in protection features guard against overvoltage, overload, and lightning, extending system longevity.
Cons:
- Limited to a maximum current of 16A, which may not be suitable for larger solar setups.
- Installation may require basic electrical knowledge, potentially complicating setup for some users.
- Weather resistance may not be sufficient in extremely severe conditions beyond IP65 ratings.
Solar Panel Disconnect Switch 1000V 60A
Pjerjzn Solar Panel Disconnect Switch 1000V 60A PV Disconnect Switch Outdoor Miniature Circuit...
- 𝐏𝐫𝐞𝐦𝐢𝐮𝐦 𝐐𝐮𝐚𝐥𝐢𝐭𝐲: .Pjerjzn solar panel disconnector switch are newly upgraded with connectors that do not differentiate between...
- 𝐏𝐫𝐨𝐭𝐞𝐜𝐭𝐢𝐨𝐧 𝐅𝐮𝐧𝐜𝐭𝐢𝐨𝐧: Solar disconnector switch has over voltage, overload and lightning protection functions, and...
- 𝐄𝐚𝐬𝐲 𝐈𝐧𝐬𝐭𝐚𝐥𝐥𝐚𝐭𝐢𝐨𝐧: Solar dc disconnect, installed between solar panel and solar inverter, can realize faster and safer...
For homeowners and off-grid enthusiasts seeking reliability, the Solar Panel Disconnect Switch 1000V 60A stands out as an essential component of solar energy systems. This switch is designed for outdoor use, boasting an IP65 rating, making it waterproof and reliable in harsh weather. With its upgraded connectors, it allows for quick installation with both male and female wires. You’ll appreciate its transparent cover, providing visibility of operational status. Equipped with over voltage and overload protections, it safeguards your solar system. Installing it between your solar panel and inverter creates a safer, more efficient environmental energy solution for your home or RV.
Best For: Homeowners and off-grid enthusiasts looking for a reliable and durable disconnect switch for their solar energy systems.
Pros:
- Easy and quick installation with upgraded connectors for male and female wires.
- Waterproof and designed for outdoor use, featuring an IP65 rating for protection against harsh weather.
- Built-in protection features including over voltage and overload safeguards enhance system reliability.
Cons:
- May require professional installation for those unfamiliar with solar systems or electrical work.
- Limited to a maximum voltage of 1000V, which may not suit all high-voltage solar applications.
- The transparent cover, while useful, may be prone to scratches over time affecting visibility.
Solar Panel Disconnect Switch 32 Amp with Waterproof Box
CNLonQcom Solar Panel Disconnect Switch 32 Amp 500V DC Miniature Circuit Breaker with Plug-and-Play...
- [1 Input 1 Output Solar Disconnect Switch]: This breaker box is designed to provide superior isolation, over-voltage and overload protection. It effectively prevents...
- [Solar Extension Cable]: This set includes four 30cm solar extension pre-wired cable with two pairs of solar connectors, making installation quick, secure, and...
- [circuit breaker]: Crafted from PA flame-retardant material, this circuit breaker operates efficiently across DC 12-500V and AC 90-500V systems. Its non-polarity design...
Finding a reliable solar panel disconnect switch can greatly enhance the safety and efficiency of your renewable energy setup, especially with the Solar Panel Disconnect Switch 32 Amp featuring a waterproof box. This switch efficiently operates across DC voltages from 12 to 500V and AC voltages up to 500V. Its non-polarity design supports flexible wiring configurations. With IP65 water resistance, it withstands harsh weather, making it ideal for outdoor installations on homes or RVs. Included accessories simplify installation, thanks to four 30cm pre-wired cables and solar connectors. Protect your system from overloads and keep your energy flow safe and efficient.
Best For: Homeowners and RV users looking for a reliable and versatile solar panel disconnect switch for their renewable energy installations.
Pros:
- Versatile Compatibility: Works efficiently with both DC (12-500V) and AC (90-500V) systems.
- Weather Resistant: IP65 rating ensures durability in harsh weather conditions, protecting against water and dust.
- Easy Installation: Comes with pre-wired cables and solar connectors for quick and safe setup.
Cons:
- Limited Amperage: Maximum capacity of 32 Amp may not be suitable for larger systems.
- Requires Professional Installation: May need an electrician for optimal installation, especially for complex setups.
- Size Constraints: The waterproof box size might be an issue in tight installation spaces.
Solar Panel Disconnect Switch 63Amp DC AC Miniature Circuit Breaker
Sale

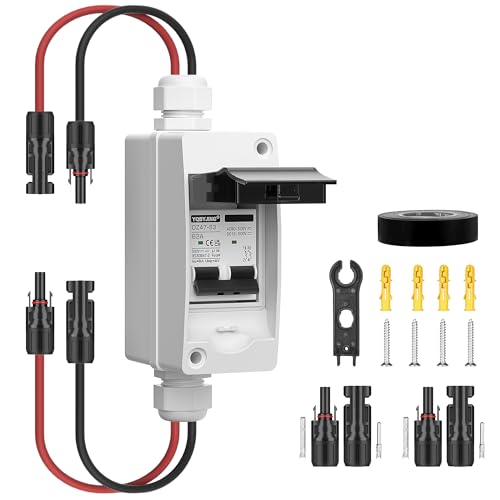

YQBYJING Solar Panel Disconnect Switch 63Amp DC AC Miniature Circuit Breaker 500V 2 Poles with PV...
- ⭐【Excellent Performance】63 Amp DC/AC 500V solar panel breaker, no polarity. Rated Voltage: DC 12-500V protect - and + pole or AC 90~500V protect L and N pole. After...
- 💪【High Quality Design】The waterproof shell is made of PC material with an IP65 waterproof rating and UV resistance, making it suitable for outdoor use...
- 🛠️【Easy to Use】 Solar disconnect switch with solar extension cable with a length about 9.84 inch and two pairs of solar connectors to achieve faster and safer...
Choosing the right solar panel disconnect switch can greatly impact your renewable energy system’s efficiency and safety, and the 63 Amp DC/AC Miniature Circuit Breaker is an excellent option for anyone looking to enhance their solar setup. This breaker operates safely at a rated voltage of DC 12-500V or AC 90-500V, ensuring robust protection for your system. Its IP65 waterproof rating allows installation outdoors, while the flame retardant body adds an extra layer of safety. With simple plug-and-play connectivity and a short-circuit protection capacity of 6kA, you’ll find it user-friendly and reliable for various applications, from solar arrays to RVs.
Best For: This product is best for homeowners, RV users, and renewable energy enthusiasts looking for a reliable and safe solution for their solar power systems.
Pros:
- High efficiency: Operates within a wide voltage range of DC 12-500V and AC 90-500V, ensuring robust protection.
- Durable design: Equipped with an IP65 waterproof rating and flame retardant materials for enhanced safety and longevity.
- User-friendly: Features plug-and-play functionality and includes solar extension cables and connectors for easy installation.
Cons:
- Limited amperage: Rated at 63 Amps, which may not be sufficient for larger solar setups.
- Price point: May be priced higher compared to basic circuit breakers without the same level of quality and safety features.
- Installation space: Requires sufficient space for installation, which may be a limitation in smaller setups.
Waterproof IP66 Solar Disconnect Switch 4-Pole Isolator for Solar Systems

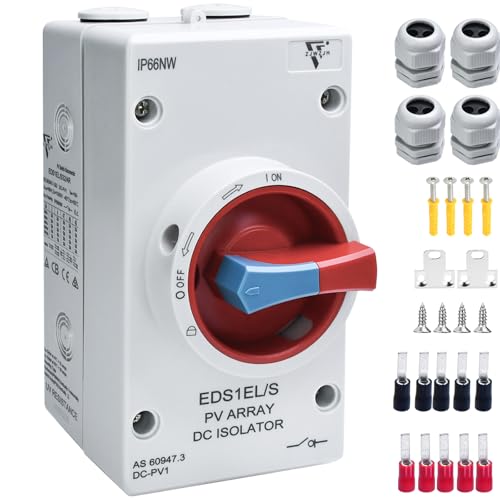

Solar Disconnect Switch 4-Pole DC 1500V 32A Isolator Solar Switch with Enclosure for Rooftop Solar...
- [ 32A, DC1500V; PV2 ] Ui: 1500V DC; Ith: 32 Amp; Uimp: 8000V; Icw: 1KA, 1S. PV2 rating, supports frequent switching
- [ 4-Pole ] Red handle, 4-Pole. The PV switch disconnector has 4 separate circuits of 32 amps each, 64A max. for 2 circuits for high work safety. And the solar disconnect...
- [ 2 String 2 in 2 out ] ndependently isolates 2 PV strings (each with +/- poles), perfectly matching common 2-string rooftop solar systems. No need to damagethe box...
The Waterproof IP66 Solar Disconnect Switch, a robust 4-pole isolator, is an ideal choice for homeowners with solar systems on rooftops, RVs, or boats. This switch operates with a maximum current of 32 amps and 1200 volts DC, ensuring effective energy management. It features a tamper-resistant red handle and an easy ON-OFF operation. With a durable construction, it withstands extreme temperatures, ranging from -40℉ to +185℉. Installation is straightforward, thanks to pre-cut mounting holes suitable for 6-8mm wiring. When you need reliability and safety in your solar setup, this switch is a leading option for secure energy control.
Best For: Homeowners with solar systems on rooftops, RV enthusiasts, and boat owners seeking reliable energy management solutions.
Pros:
- Durable and Weather-Resistant: Constructed from high-quality materials that are UV-proof, flame retardant, and capable of withstanding harsh weather conditions.
- High Voltage and Current Rating: Operates at a substantial 1200 volts DC and 32 amps, allowing for efficient energy management in solar applications.
- Safe and Easy to Use: Features a tamper-resistant red handle, straightforward ON-OFF operation, and easy installation with pre-cut mounting holes.
Cons:
- Size and Weight: Weighs 1.6 pounds and has dimensions that may require adequate space for installation.
- Limited Current for Large Systems: While rated for 32 amps per circuit, it may not be sufficient for larger solar systems without combining circuits.
- Potential Compatibility Issues: May require specific wiring sizes (6-8mm) that not all users may have readily available, leading to additional costs or installation considerations.
32 Amp DC Solar Disconnect Switch Isolator
Sale

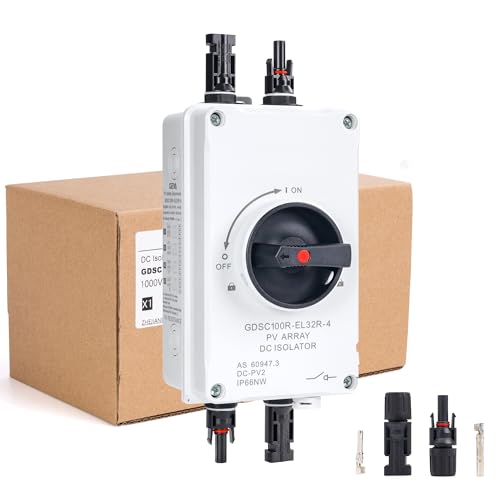

IGOYE 32 Amp DC1200V Solar Disconnect Switch Isolator Switch with IP66 Waterproof Enclosure PV Panel...
- 【IP66 Waterproof】:The design of the waterproof ring makes our products have excellent waterproof and dustproof ability, IP66 waterproof rating ensures that they can...
- 【Product Parameters】: Rated Working Voltage: 300V/600V/800V/1000V1200V, Rated Insulation Voltage 1200V; Mechanical Life: 9700
- 【Universal design】: Adopt standard MC4 terminal connection, easy to connect with standard terminals. Quick connection and disconnection, automatic locking, make the...
If you’re looking for a reliable solution for your solar energy needs, the 32 Amp DC Solar Disconnect Switch Isolator by IGOYE is an excellent choice. This switch functions as an on-off control for photovoltaic systems, rated up to 1200 volts and 32 amps. Its durable metal design offers an IP66 waterproof rating, providing protection against water and dust. Measuring 10.98 x 4.49 x 3.5 inches, it’s compact yet powerful. Designed with a mechanical knob for easy operation, it can disconnect up to four MPPT lines, making it versatile. This guarantees safe management of solar panels, charge controllers, and inverters in your renewable energy setup.
Best For: Those seeking a durable and reliable switch for managing solar energy systems rated up to 1200 volts and 32 amps.
Pros:
- IP66 waterproof and dustproof rating ensures long-lasting performance in various weather conditions.
- Compact design and standard MC4 terminal connection facilitate easy installation and operation.
- Mechanical knob control allows for quick and secure connection/disconnection of multiple MPPT lines.
Cons:
- Mechanical life rated at 9700 operations may limit long-term use in high-frequency applications.
- Requires proper installation and knowledge of electrical systems for optimal safety and performance.
- Limited to a maximum of 32 amps, which may not be sufficient for larger solar setups.
Factors to Consider When Choosing a Solar Disconnect Switch
When you’re choosing a solar disconnect switch, several factors play a vital role in ensuring you make the right decision. You’ll want to take into account the voltage and current ratings to match your solar system’s requirements, as well as features like waterproofing to protect against the elements. Additionally, think about how easy it is to install, the switch’s safety functions, and the overall durability based on the materials used.
Voltage and Current Ratings
Choosing the right voltage and current ratings for your solar disconnect switch is essential for the safety and efficiency of your solar power system. Guarantee the voltage rating matches your system requirements, which typically range from 400V to 1200V. The current rating also matters, usually falling between 16A and 63A; select a switch that can handle the maximum current generated by your solar setup. Additionally, guarantee compatibility with both DC (direct current) and AC (alternating current) applications. Look for a switch designed for overload and short-circuit protection to manage potential faults safely. Pay attention to the installation method, as options like plug-and-play or DIN rail mounting offer different levels of convenience and permanence.
Waterproof and Dustproof Features
Waterproof and dustproof features play a critical role in ensuring your solar disconnect switch functions effectively, especially in outdoor settings. When choosing a switch, look for a high IP rating, like IP65 or IP66, which indicates strong protection against water and dust. These features prevent moisture from causing electrical shorts or corrosion inside the device. Additionally, dustproof properties keep particulate matter from obstructing moving parts, ensuring reliable operation when disconnecting power. It’s wise to select products designed for harsh weather, as they undergo rigorous testing. Pay attention to the sealing methods, such as silicone rings or flame-retardant materials, which enhance the switch’s ability to withstand extreme conditions and prolong its lifespan.
Installation Ease and Design
How do you choose the right solar disconnect switch for your installation? Look for a plug-and-play design, which simplifies setup and reduces installation time. Make sure the switch has waterproof connectors and an IP rating like IP65 or IP66, ensuring it withstands outdoor elements. Models with pre-drilled holes or rail guides for mounting on standard DIN rails enhance efficiency. Additionally, choose switches with visibility features, such as transparent covers, allowing you to monitor operational status without disassembly. Don’t forget to check for included installation accessories like solar connectors and extension cables, ensuring compatibility and a complete setup experience. These factors will help you streamline your installation process effectively.
Safety and Protection Functions
When selecting the right solar disconnect switch, safety features should be at the forefront of your decision-making process. Look for protection features like over-voltage, overload, and lightning protection to prevent circuit damage and enhance overall safety. Quick trip mechanisms, such as electromagnetic trip systems, are crucial for responding immediately to short circuits, which can minimize potential hazards. Confirm the switch has a waterproof rating of IP65 or higher, as this guarantees functionality in harsh weather. It’s also essential to choose a switch that includes isolation functionality, allowing for safe maintenance of solar power systems without risking electric shock. Prioritizing these safety features will help guarantee reliable and secure energy management for your solar installation.
Material Quality and Durability
Selecting a solar disconnect switch based on material quality and durability is essential for ensuring long-term performance, especially in outdoor settings. Look for components made from PA flame-retardant plastics to enhance safety in tough conditions. A switch with a waterproof and dustproof rating, like IP65 or IP66, protects it from moisture and dirt, extending its life. Corrosion resistance is vital as materials need to endure UV rays and temperature changes without losing functionality. Additionally, choosing switches with features like transparent covers allows for easy monitoring, while straightforward wiring mechanisms simplify installation. Opt for high-quality components, such as silver contacts and pure copper coils, as they improve electrical conductivity and minimize wear over time.
Frequently Asked Questions
What Is the Lifespan of a Solar Disconnect Switch?
The lifespan of a solar disconnect switch typically ranges from 10 to 20 years. This depends on factors like the manufacturer, installation conditions, and maintenance. High-quality switches can last longer, while harsh weather or lack of upkeep can shorten their lifespan. It’s important to periodically inspect the switch for signs of wear or damage. Replacing a faulty switch promptly guarantees safety and efficiency in your solar energy system, preventing potential hazards.
How Do I Install a Solar Disconnect Switch Safely?
To install a solar disconnect switch safely, first, turn off the solar inverter and the circuit breaker. You’ll need to mount the switch at an accessible location, ideally near the inverter, at least 5 feet above ground. Use the proper wire gauge—typically 10-12 AWG—for connections. Securely connect the wires, following the manufacturer’s instructions, and verify the switch’s rating meets your system’s voltage and amperage requirements, usually around 600 volts. Always double-check your connections.
Can I Use a Disconnect Switch for My Inverter?
Yes, you can use a disconnect switch for your inverter. This switch acts as a safety device that allows you to isolate the inverter from the electrical system. When doing maintenance or in emergencies, simply flip the switch to cut power. There are two main types: manual and automatic disconnects. Verify your chosen switch meets your inverter’s voltage rating, typically around 120-240 volts, to function effectively and safely during operation.
What Maintenance Is Required for Solar Disconnect Switches?
To maintain solar disconnect switches, inspect connections regularly, clean dirt or dust from the switch, and test functionality every six months. Tighten loose screws to prevent overheating; they should feel firm but not overtightened. Look for rust or corrosion, which can cause failures, and replace the switch if needed. In addition, check labels and ratings to make certain they’re still compliant with your system’s voltage and current specifications.
Are There Specific Codes for Solar Disconnect Switch Installation?
Yes, there are specific codes for solar disconnect switch installation. The National Electrical Code (NEC) outlines requirements to guarantee safety and functionality. You’ll need to install the switch within sight of your solar array and consider local regulations, which may differ. For example, NEC requires a disconnect switch rated for at least 600 volts for most residential systems. Always check local building codes before installation to verify compliance and safety.
