10 Best Solar Panel Junction Boxes to Optimize Your Solar Energy System
To optimize your solar energy system, consider the top-rated solar junction boxes like the Solar Combiner Box for PV Arrays, which supports dual inputs and includes safety features like 63A breakers. The Solar Panel 3-Split Junction Box connects multiple modules with ease and handles up to 30A. Look for IP65 or IP67 ratings for waterproof protection. Evaluate the box’s compatibility with your panel’s cables and capacity to guarantee efficient performance. Explore more options and details to enhance your solar setup effectively.
Key Takeaways
- Consider junction boxes with IP65 or higher waterproof ratings for outdoor installations to ensure durability and protection from environmental elements.
- Look for solar junction boxes with integrated overcurrent and surge protection to safeguard your solar energy system from potential electrical faults.
- Ensure compatibility with wire gauges (10AWG to 12AWG) and rated voltage (1000V DC+) to maintain safety and performance in your solar setup.
- Opt for user-friendly features such as pre-wired cables and clear connection labels to simplify installation and reduce errors.
- Select junction boxes with robust materials, like PA nylon or ABS, to enhance longevity and resistance against UV exposure and chemicals.
BougeRV Solar Weatherproof Double Cable Entry Gland for RV and Campervan
BougeRV Solar Weatherproof Double Cable Entry Gland, Cable Through RV roof Solar Junction Box abs...
- 【WATERPROOF DESIGN】Solar Double Cable Entry Gland is a drop-shaped design and PG11 waterproof connector as to repel water， suitable for all cable types from 14AWG...
- 【KEEPING THE INNER NUTS FROM TURNING】Many guests reported that the inner nuts are too much spacing to cause cable gland's slippage,but BougeRV completely solved this...
- 【EASY INSTALLATION】Simply pass your cable through the gland and tighten the cap.Can be fixed with Glue, decor sealant (NOT INCLUDED) or stainless steel self-tapping...
The BougeRV Solar Weatherproof Double Cable Entry Gland is an excellent choice for RV and campervan owners looking to securely route their solar cables. It accommodates cable sizes from 14AWG to 10AWG. This product features a drop-shaped design and a PG11 waterproof connector, effectively repelling water to prevent damage. It includes a silicone waterproof ring and is constructed from durable ABS materials, ensuring longevity outdoors. Installation is straightforward: simply pass your cable through the gland and tighten the cap, using either sealant or the included screws to secure it. This gland minimizes cable slippage, enhancing your overall solar setup efficiency.
Best For: RV and campervan owners looking for a reliable and waterproof solution to route solar cables securely.
Pros:
- Durable ABS construction with anti-UV agent ensures resistance to color change and damage from outdoor conditions.
- Innovative design minimizes cable slippage, enhancing the efficiency of solar panel setups.
- Easy installation process with multiple options for securing the gland, making it versatile for various applications.
Cons:
- Adhesive sealant is not included, which may require an additional purchase.
- Limited to specific cable sizes (14AWG to 10AWG), which may not accommodate larger cables.
- Installation may require additional tools or materials depending on the chosen sealing method.

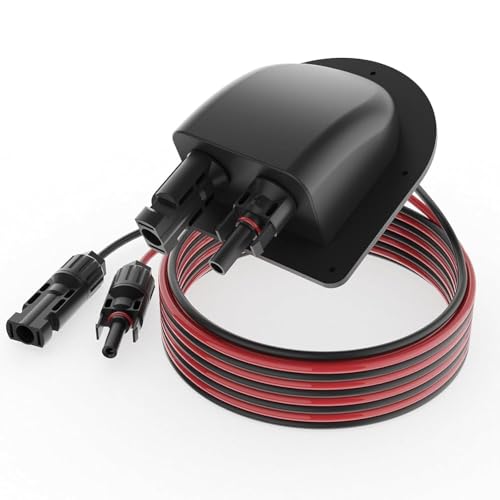

Waterproof Solar Cable Gland Entry Housing Junction Box with 10Ft Extension Cable Connector
TerraSitze Waterproof Solar Cable Gland Entry Housing Solar Junction Box Fit for roof Panels on RV...
- 【Upgraded Weatherproof Design】 Solar panel connectors is pre-assembled with 10Ft 10AWG wire, save a pair of waterproof glands, meanwhile,speed up the installation...
- 【Easy Installation】Simply pass your cables through the gland and tighten the cap depending on position and sealing requirements. It can be fixed with Glue (not...
- 【High Quality】 Ericsity solar wire entry gland use PA high quality nylon plastic IP68 waterproof and lock nut washer to seal around your wires, ensure the safety acid...
For those seeking a reliable and waterproof solution for solar installations on vehicles or buildings, the Waterproof Solar Cable Gland Entry Housing Junction Box with a 10Ft Extension Cable Connector stands out. This product features a weatherproof design, built from high-quality PA nylon plastic, and is rated IP68 for maximum durability. Easy installation is guaranteed by simply passing cables through the gland and tightening the cap. You’ll receive all necessary components, including stainless steel self-tapping screws and the extension cable. Ideal for RVs, boats, or garages, it effectively protects against water, dust, and other environmental elements. Your solar energy system will benefit greatly.
Best For: Those looking for a durable and waterproof junction box solution for solar panel installations on vehicles and buildings.
Pros:
- Weatherproof design: Constructed with high-quality PA nylon plastic rated IP68 for protection against water and dust.
- Easy installation: Simple setup process with pre-assembled wires and included screws for secure mounting.
- Versatile applications: Suitable for various uses including RVs, boats, and home solar energy systems.
Cons:
- Glue not included: Additional adhesive may be required for optimal sealing, which is not provided in the package.
- Limited color options: Only available in black, which may not fit all aesthetic preferences.
- Potential for over-tightening: Care must be taken when tightening the cap to avoid damaging the cables or the gland housing.
2 Packs Junction Box IP65 Waterproof Electrical Project Case
Otdorpatio 2Packs Junction Box IP65 Waterproof ABS Plastic Electrical Project Case Power Junction...
- 【Size】- Outer size of the project box: 3.94"x2.68"x1.97"(100 x 68 x50 mm); Inner size of the project box:3.66" x2.4" x 1.69" (93 x61 x43mm)
- 【IP65 Waterproof Grade】- Waterproof & weather designed, effectively block splashing water, rain, dust, snow, oil, etc., Ideal for electronic projects, Arduino...
- 【Superior Durable】- Made of high-quality ABS material that offers outstanding impact resistant and electrical insulation, Moisture-proof, sunscreen, anti-corrosion...
Looking for a reliable enclosure for your next electronic project? The Packs Junction Box IP65 Waterproof Electrical Project Case is an excellent choice. Measuring 3.94 x 2.68 x 1.97 inches externally, it effectively protects your electronics from splashes, dust, and harsh weather, thanks to its IP65 rating. Made from high-quality ABS material, this box shows outstanding durability and electrical insulation, ensuring your devices remain safe. The junction box also allows for easy drilling, making it perfect for various DIY applications, such as Arduino enclosures. Each package includes two boxes, screws, sealing gaskets, and cable glands for your convenience.
Best For: The Packs Junction Box IP65 Waterproof Electrical Project Case is best for hobbyists and professionals looking for a durable and reliable enclosure for electronic projects in outdoor or harsh environments.
Pros:
- IP65 waterproof rating effectively protects against splashing water, dust, and harsh weather conditions.
- High-quality ABS material provides outstanding impact resistance and electrical insulation, ensuring longevity.
- Easily customizable with a sturdy design that allows for drilling and shaping for various DIY applications.
Cons:
- Limited internal space may not accommodate larger electronic components or projects.
- Color options are restricted to black, which may not suit everyone’s aesthetic preferences.
- Requires assembly as screws and gaskets are included, which may not be convenient for all users.

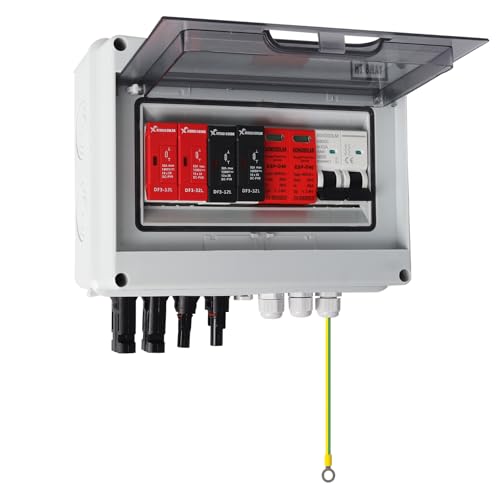

Solar Combiner Box for PV Array System
Solar Combiner Box 600V 2 inputs and 1 Output 15A Rated Current Fuse 63A DC Circuit Breaker & SPD...
- 1️⃣ Dual 2-String Input Design – Simplify PV Wiring Setup Supports two independent solar panel strings (2 in / 1 out), combining power efficiently to reduce wiring...
- 2️⃣ Comprehensive Safety Protection – Multiple Layers of Defense Equipped with 63A DC circuit breaker, 15A fuses, surge protector (SPD), and grounding protection to...
- 3️⃣ IP65 Waterproof & Weather-Resistant Enclosure Durable ABS housing with IP65 waterproof rating ensures reliable outdoor operation under rain, sun, and dust...
A Solar Combiner Box is an excellent choice for both residential and commercial photovoltaic (PV) systems, especially if you’re managing multiple solar panel strings. This 600V device uses a dual 2-string input design, which means it can accommodate two independent solar panel strings with one output. It features a 63A DC circuit breaker and 15A fuses for added safety, protecting against over-current, over-voltage, and short circuits. The weather-resistant IP65 enclosure guarantees durability in various outdoor conditions. With easy plug-and-play installation, it’s perfect for both DIY enthusiasts and professionals, making your solar energy management effective and trustworthy.
Best For: Homeowners and businesses seeking an efficient and dependable solar solution for managing multiple solar panel strings.
Pros:
- Comprehensive Safety: Includes multiple protection features like a 63A DC circuit breaker and surge protector to ensure system reliability.
- Durable Design: The IP65 waterproof enclosure ensures that the combiner box withstands harsh weather conditions for long-term outdoor use.
- Easy Installation: Pre-wired and labeled components facilitate a quick and straightforward setup, making it suitable for both DIY projects and professional use.
Cons:
- Limited Input Strings: Only supports two solar panel strings, which may not be sufficient for larger PV systems requiring more inputs.
- Rated Current Limitations: The 15A fuses may not be adequate for higher-capacity solar panels, potentially limiting system expandability.
- Dependence on External Lightning Protection: While it has a surge protector, additional external lightning protection might still be necessary in high-risk areas.

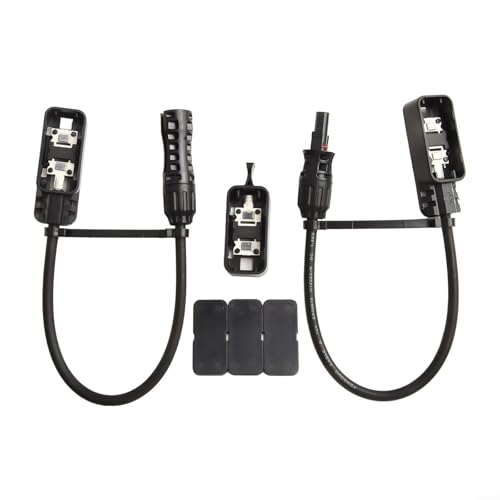

Solar Panel 3-Split Junction Box for Photovoltaic Module Connection
Solar Panel 3-Split Junction Box 1500V/30A IP67 Photovoltaic Module Confluence Box with High Current...
- 【High Voltage and Current Capacity】With a voltage and current capacity of 1500V/30A, this solar panel junction box is designed to handle high power applications. It...
- 【Long-Lasting】Made from PC material and equipped with red copper silver plated inner core, this junction box is resistant to wear and breakage, a long service life...
- 【Safe and Reliable Connectivity】Designed to provide users with a safe and reliable connectivity solution, this junction box ensures secure connections for your...
If you’re installing a photovoltaic solar panel system and want a reliable method to connect multiple modules, the Solar Panel 3-Split Junction Box is an excellent choice. This junction box supports a voltage capacity of 1500V and a current capacity of 30A, ensuring it meets your energy needs. Its connecting capacity is suitable for 12AWG wire, making installation straightforward. Crafted from durable PC material and equipped with a copper strip, it’s built to resist wear. The 3-split design simplifies connecting different modules efficiently. You can trust its safety and performance, providing secure connections for peak energy generation.
Best For: Individuals and professionals seeking a reliable and efficient solution for connecting multiple photovoltaic solar modules.
Pros:
- Durable construction ensures long-lasting performance, resisting wear and breakage.
- 3-split design facilitates easy and efficient connection for streamlined installations.
- High voltage and current capacity (1500V/30A) supports robust energy generation needs.
Cons:
- Limited to 12AWG wire may not be suitable for installations requiring larger gauge wiring.
- Material specifics (PC plastic) may not appeal to all users looking for metal junction boxes.
- Installation may require some technical knowledge, potentially posing a challenge for DIY novices.

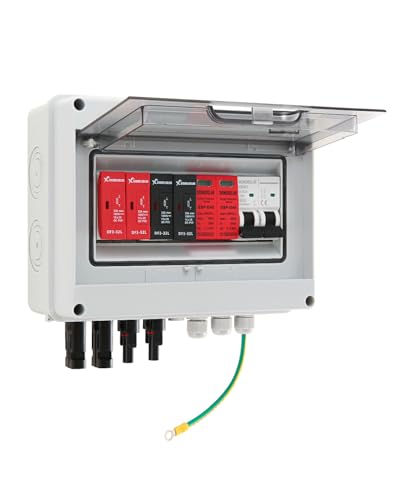

VOU 600V Solar DC PV Combiner Box for Solar Panel System
VOU 600V Solar DC PV Combiner Box,2 String with Lightning Arrester Connector for On/Off Grid Solar...
- PV combiner box function: PV combiner box tidied up connection and confluence of photovoltaic modules.It is used to reduce the connection of the photovoltaic array to the...
- VOU solar photovoltaic combiner box: equipped with 4pcs15A DC fuses, a high voltage arrester and a 600V 63A circuit breaker. It has short circuit/lightning...
- VOU Combiner Box IP65 Waterproof ABS Housing: The combiner box adopts a sturdy housing. It has an IP65 protection level. It is dustproof, moisture-proof, waterproof...
For residential and commercial solar power system installers looking for efficiency and reliability, the VOU 600V Solar DC PV Combiner Box serves as an excellent choice. This box organizes connections from two photovoltaic strings to streamline communication with inverters. Rated at 600V and 15A, it can handle up to 9000W from a single array. With IP65 protection, it’s waterproof and dustproof, ensuring durability in outdoor settings. The design includes four 15A DC fuses and surge protection, enhancing safety. Installation is simplified with pre-configured wiring, saving you about an hour of work. Overall, it maximizes solar system efficiency and lifespan.
Best For: Residential and commercial solar power system installers seeking efficient and reliable connection solutions for photovoltaic arrays.
Pros:
- Efficient Organization: Streamlines connections from two photovoltaic strings, enhancing communication with inverters.
- Strong Protection Features: Equipped with surge protection and multiple fuses to prevent damage and ensure safety in various weather conditions.
- Easy Installation: Pre-configured wiring saves time during installation, making it user-friendly for installers.
Cons:
- Limited Input Capacity: Maximum input current of 15A may not be sufficient for larger installations requiring higher capacity.
- Size and Weight: Dimensions and weight may be cumbersome for some installers, depending on installation location.
- Specific Application Use: Primarily designed for outdoor applications, limiting versatility for indoor solar setups.
6 String Metal Solar Combiner Box
Elnuimex 6 String Metal Solar Combiner Box, PV Combiner Box with 20A Rated Current Fuse, Surge...
- 【Reliable Protection】: Our solar combiner box is designed to keep safe your solar panels and inverters, ensuring their reliable and safe operation. With built-in 20A...
- 【Easy Installation】: All wires are pre-wired in the PV combiner box with specialized solar system wires, and it comes with a built-in ground connector. The 6 string...
- 【Versatile Applications】: Whether it's for powering public facilities in rural areas, solar power generation in venues, residential off-grid systems, or grid-tied...
The 6 String Metal Solar Combiner Box stands out as an ideal choice for those managing multiple solar panel systems, such as residential electricity needs or rural power solutions. It features a robust design, including a 20A rated current fuse, which protects against overloads and short circuits. Furthermore, built-in surge protection, lightning protection, and anti-reverse connection capabilities enhance operational safety. Installation is straightforward, with pre-wired solar system wires and a ground connector. Additionally, this box’s IP65 waterproof rating guarantees durability in harsh weather. You’ll appreciate the indicator window, which provides real-time feedback on system performance, making monitoring efficient and clear.
Best For: Those managing multiple solar panel systems, including residential electricity needs and rural power solutions.
Pros:
- Built-in 20A rated fuses provide effective overload and short circuit protection.
- IP65 waterproof rating ensures durability in harsh weather conditions.
- Indicator window offers real-time feedback on system performance for efficient monitoring.
Cons:
- Metal housing may be heavier compared to plastic alternatives, potentially complicating installation.
- Requires professional installation for optimal performance and safety.
- Limited to a maximum of 6 strings, which may not suffice for larger solar configurations.
Vikocell Photovoltaic Solar Panel Junction Box (IP67 Waterproof)
Vikocell 1Pcs Photovoltaic Solar Panel Junction Box Waterproof IP67 for Solar Panel 180W to 300W
- Suitable Solar Panel Power: 180W-300W
- Contact Material:Copper, Rated Voltage:1000V/DC
- Water Proof Degree:IP65, Number of Diodes:6 x 12SQ045
Investing in the Vikocell Photovoltaic Solar Panel Junction Box (IP67 Waterproof) is an excellent choice for solar panel installations rated between 180W and 300W. This junction box features six high-quality 12SQ045 diodes, ensuring efficient energy transfer. Its IP67 waterproof rating means it withstands harsh weather, giving you peace of mind during rain or snow. Constructed from durable copper, it supports a maximum voltage of 1000V/DC, making it both safe and reliable. You’ll find its assembly straightforward, allowing for quick installation. Overall, the Vikocell junction box enhances the performance and durability of your solar energy system in diverse conditions.
Best For: Individuals or businesses looking to enhance their solar panel installations rated between 180W to 300W with a reliable and durable junction box solution.
Pros:
- High-quality copper construction ensures reliability and longevity.
- IP67 waterproof rating provides protection against harsh weather conditions.
- Easy assembly enables quick installation for efficient setup.
Cons:
- Limited to solar panels rated between 180W and 300W, which may not suit larger installations.
- Requires standard tools for installation, which may not be included.
- Potential compatibility issues with certain solar panel brands not specified.
4 String Solar Combiner Box for On/Off Grid Solar Systems
4 String Solar Combiner Box, IP65 Waterproof PV Combiner Box for On/Off Grid Solar System,with...
- Safety Protection: The solar combiner box is equipped with 63 A circuit breaker and 15 A independent fuse to protect the circuit from short circuit, no voltage and over...
- Material: 4 string pv combiner box is made of strong plastic, which is durable and long-lasting waterproof and more suitable for outdoor installation. IP65 waterproof...
- Easy to Install: The pv box comes with pre-wired cables and Ground wire, plug and play, and mounting clips to quickly secure the box to any regular surface,which can able...
When considering solar energy solutions, the 4 String Solar Combiner Box stands out as an ideal choice for both recreational and residential systems. This box features an IP65 waterproof rating, ensuring durability in harsh weather. It’s equipped with a 63A circuit breaker to protect against short circuits, and a 15A fuse for added safety. You’ll also find a lightning arrester, which prevents damage to your solar panels and inverter. Installation is straightforward, thanks to pre-wired cables and mounting clips included. This combiner box is compatible with all solar panel brands, making it versatile for any setup.
Best For: Homeowners and recreational users looking for a reliable and easy-to-install solar energy solution.
Pros:
- IP65 waterproof rating ensures protection against adverse weather conditions.
- Includes essential safety features like a 63A circuit breaker and lightning arrester for enhanced system protection.
- Compatible with all brands of solar panels, offering versatility for various setups.
Cons:
- Installation may still require basic electrical knowledge for optimal setup.
- The box is made from plastic, which while durable, may not be as robust as metal alternatives.
- Limited to four strings; larger systems may require additional combiner boxes.
Solar PV Junction Box for 180-300W Solar Panels
For solar panel installations ranging from 180 to 300 watts, the Solar PV Junction Box stands out as an essential component, particularly for those seeking reliable performance and durability. This junction box operates effectively at up to 1000 volts DC and boasts an IP65 waterproof rating, protecting it from dust and water. Robust materials guarantee it withstands various weather conditions, enhancing its lifespan. It features integrated safety measures, such as overcurrent and surge protection, safeguarding your system. The installation process is straightforward, compatible with multiple solar panel configurations, providing the flexibility to match your specific setup.
Best For: Solar energy enthusiasts and installers looking for a durable and efficient junction box for 180-300W solar panels.
Pros:
- Robust construction ensures long-lasting performance in varying weather conditions.
- Integrated safety features provide peace of mind by protecting against overcurrent and surges.
- Simplified installation process allows for quick and easy setup with multiple solar panel configurations.
Cons:
- Limited to a power range of 180-300W, which may not suit larger installations.
- Some users may find the initial cost higher compared to basic junction boxes without advanced features.
- Compatibility might be limited with specialized solar panel designs outside of standard configurations.
Factors to Consider When Choosing a Solar Panel Junction Box
When choosing a solar panel junction box, you must consider several key factors to guarantee reliability and safety. First, check the waterproof rating to protect against moisture, which can degrade performance over time. Additionally, evaluate the material for durability, safety features for protection, installation ease for convenience, and cable compatibility to guarantee a proper fit with your solar setup.
Waterproof Rating Importance
Selecting the right solar panel junction box often involves considering its waterproof rating, which is vital for guaranteeing durability and performance. An IP67 rating indicates that the junction box can withstand immersion in water, making it ideal for harsh environments. In contrast, an IP65 rating offers protection against water jets and splashes, suitable for outdoor installations frequently exposed to rain. Having a proper waterproof rating helps prevent corrosion and damage to internal components, which can reduce efficiency or lead to system failure. This selection is particularly important in regions with heavy rainfall or extreme weather. Finally, compliance with waterproof standards is often necessary for both commercial and residential solar power installations to guarantee safety and maintain operational efficiency.
Material and Durability
Waterproof ratings are only part of the equation when choosing a solar panel junction box. You should focus on the material as well. Opt for high-quality plastics like ABS or PA nylon, which offer excellent impact resistance and electrical insulation for outdoor conditions. Verify that the junction box has an IP68 or IP65 rating, providing superior waterproof and dustproof features. It’s also essential to choose boxes with UV resistance to prevent degradation from sunlight exposure. Additionally, prioritize durable construction that resists chemicals and moisture, safeguarding against adverse weather. Look for sealing capabilities that enhance waterproof performance, which prevents water ingress, verifying safe operation of your electric connections and maintaining the reliability of your solar energy system over time.
Safety Features Evaluation
Safety features in a solar panel junction box play an essential role in ensuring your solar energy system operates efficiently and securely. You should look for overcurrent protection to prevent damage from excessive current flow. Surge protection devices, or SPDs, are critical for safeguarding your system against lightning strikes and voltage surges, enhancing longevity. Integrated fuses or circuit breakers isolate faults, allowing safe maintenance while reducing fire risks. Additionally, choose junction boxes rated for waterproofing, like IP65 or IP67, to protect against water and dust. Proper grounding protection is also important; it guards the entire system from electrical faults, ensuring safety for both the solar panels and connected components. Prioritize these features to maintain an efficient and safe solar setup.
Installation Ease Factors
When considering a solar panel junction box, it’s crucial to prioritize installation ease factors that can streamline your setup process. Look for junction boxes with pre-wired cables and plug-and-play components, as these can greatly reduce installation time. It’s also important to verify the box includes installation clips and mounting hardware for stable attachment to various surfaces. Choose products with easy-to-follow guides and clear connection labeling, which minimizes human error. Built-in screw slots or grounding connectors simplify the securing process and improve grounding efficiency. Finally, opt for designs that allow easy access to internal connections, so you can troubleshoot or perform maintenance efficiently, guaranteeing long-term reliability of your solar energy system.
Cable Compatibility Check
Choosing the right solar panel junction box involves several critical factors, particularly cable compatibility. First, verify the junction box supports your solar cable’s wire gauge, typically ranging from 10AWG to 12AWG, for a secure, efficient connection. Next, check the box’s voltage compatibility; many are designed for 1000V DC or higher, ideal for photovoltaic systems. Additionally, determine the number of connections your system requires, as junction boxes come in configurations like 2-string or 4-string designs. Assess the type of connectors inside the junction box to verify they match your solar panels’ connectors. Finally, review the rated current of the junction box’s fuses, usually around 15A, to maintain safety and peak performance in your solar energy setup.
Voltage and Current Ratings
Selecting the right voltage and current ratings for your solar panel junction box is essential for ensuring efficient and reliable operation. Make sure the junction box supports the voltage rating compatible with your solar panels; most residential and commercial systems commonly operate up to 1000V. Additionally, check the current ratings, which should match or exceed the maximum output from your solar panels, typically at 15A or higher. Choosing a junction box with higher voltage and current ratings offers better safety margins for unexpected surges. Also, consider the junction box’s capacity for the number of strings it must handle—common configurations include 2-strand or 4-strand designs. Finally, confirm compliance with local electrical codes to maintain system safety and reliability.
Design and Size
A well-designed solar panel junction box is key to ensuring efficient connectivity and safe operation within your solar energy system. Look for a junction box that accommodates various wire sizes, typically ranging from 12AWG to 10AWG. Size is important; ideally, the box should measure around 3.94 x 2.68 x 1.97 inches for standard applications. Proper waterproofing is essential, so choose models with IP ratings of at least IP65, which protects against dust and water. The material affects longevity—opt for robust ABS or PA nylon for their durability against impacts, moisture, and UV exposure. Finally, consider installation features, such as pre-wired configurations and included connectors, which can help simplify and expedite your setup process.
Cost and Value Considerations
Investing in a quality solar panel junction box means considering several cost factors that can influence your solar energy system’s overall performance and longevity. The price can vary considerably based on features like waterproof ratings, which range from IP65 to IP68, affecting initial cost and long-term maintenance. A higher-quality junction box may reduce the risk of failures, saving you costly repairs. Material also matters; options like ABS or PA nylon affect durability. Make sure the junction box is compatible with your photovoltaic modules to optimize performance. Additionally, advanced safety features, such as surge protection, might require a higher upfront investment but can safeguard your system against damage, ultimately providing considerable long-term savings.
Frequently Asked Questions
How Do I Know Which Junction Box Is Right for My Solar Setup?
To choose the right junction box for your solar setup, first, assess the panel’s voltage and current ratings. Verify the junction box can handle these specifications, typically marked in volts (V) and amps (A). Look for moisture-proof and UV-resistant features, as these protect against environmental damage. Also, consider the number of connections needed; a box with multiple terminals might fit your system better. Finally, check for certifications to verify safety and performance standards are met.
What Maintenance Is Required for Solar Panel Junction Boxes?
Regular maintenance for solar panel junction boxes is crucial; about 80% of solar system failures stem from wiring issues. Inspect your junction boxes at least once a year for signs of corrosion, loose connections, or damage. Clean dust and debris with a dry cloth to guarantee peak performance. Additionally, make sure moisture doesn’t enter the box, as water can cause short circuits. Proper maintenance extends the lifespan of your solar panel system considerably.
Can Junction Boxes Be Used for Different Electrical Voltages?
Yes, junction boxes can be used for different electrical voltages, but you must select the right type. For example, a junction box rated for 120 volts shouldn’t be used in a 240-volt system without proper adjustments. Confirm that the insulation and components, like wires and connectors, match the voltage. It’s also important to follow local electrical codes, as these specify which junction boxes are suitable for specific applications and voltages.
Are There Specific Brands Known for Reliability in Junction Boxes?
When choosing junction boxes, brands like Heyco, Adafruit, and TE Connectivity are known for their reliability. These companies offer various styles, such as waterproof and dustproof options, ideal for outdoor use. Look for junction boxes that meet safety standards, like UL or CE certifications, as this guarantees quality. For example, a reliable junction box typically costs between $5 and $20, making it an affordable component for your projects. Confirm durability in your choices.
How Do I Install a Solar Panel Junction Box Properly?
To install a solar panel junction box properly, start by turning off all power sources. Use a weather-resistant junction box to prevent moisture damage. Install the box on a sturdy surface near the solar panel. Connect the positive and negative wires from the solar panel to the corresponding terminals in the junction box. Verify all connections are secure and insulated. Finally, close the junction box and perform a power check to confirm everything functions correctly.
